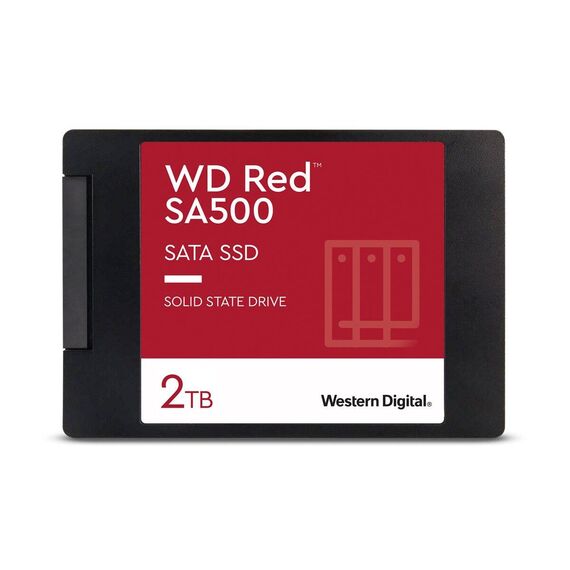

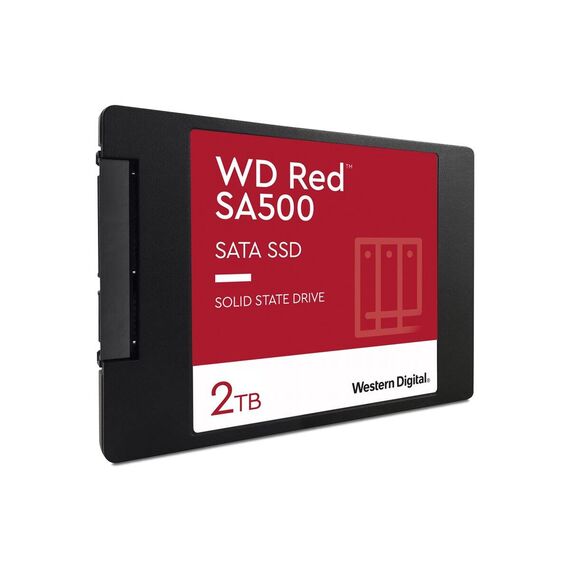

WD Red SA500 WDS200T2R0A / SSD / 2 TB / internal / 2.5" / SATA 6Gb/s | WDS200T2R0A
Please sign in so that we can notify you about a reply
Product Features
- Supercharge your NAS
Durability together with efficient caching of big files make the WD Red SA500 NAS SATA SSD ideal for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing and other demanding applications. - Access big files fast
WD Red SA500 500 GB SSD 2.5 inch SSD storage is optimized for caching in NAS systems to rapidly access your most frequently used content. - Give it your tough workloads
WD Red SSD's superior endurance can handle the heavy read and write loads demanded by NAS, giving you the reliability you need in a 24/7 environment. - Work more efficiently
Purpose-built for NAS with proven Western Digital 3D NAND, the WD Red NAS Solid State Drive delivers maximum SATA performance to boost your productivity and effectiveness at home or in the office. - Use it for your demanding applications
The drive reduces latency and improves responsiveness for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing, and more. - Build with flexibility
Customize your NAS to meet your most demanding storage needs with 2 TB capacity.
Special Features
- Endurance of 1300 TB
- Ideal for caching in NAS systems to rapidly access your most frequently used files
- Reduces latency and improves responsiveness for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing, and more
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | 24x7 continuous operation, 3D NAND Technology |
| Width | 69.85 mm |
| Depth | 100.2 mm |
| Height | 7 mm |
| Weight | 34.6 g |
| Performance | Performance |
| SSD Endurance | 1300 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 87000 IOPS |
| 4KB Random Write | 83000 IOPS |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| 24x7 Operation | Yes |
| Seek Errors | 1 per 10^17 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Power | Power |
| Power Consumption | 100 mW (active) ¦ 3000 mW (read) ¦ 3000 Watt (write) ¦ 70 mW (sleep) ¦ 7 mW (DevSleep) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL, TUV, VCCI, BSMI, FCC, KC, RCM, Morocco, UKCA, CB Scheme |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -55 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
Features - Western Digital - WDS200T2R0A-68CKB0
Form Factor
- 2.5"
- Internal
Capacity
2TB
Interface
- SATA
More Details
Product Code
04:474212
EAN Code
0718037903613
Manufacturer
Western Digital
