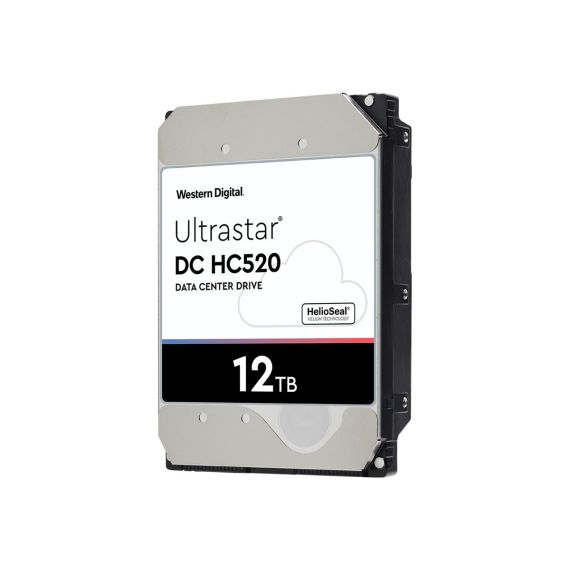

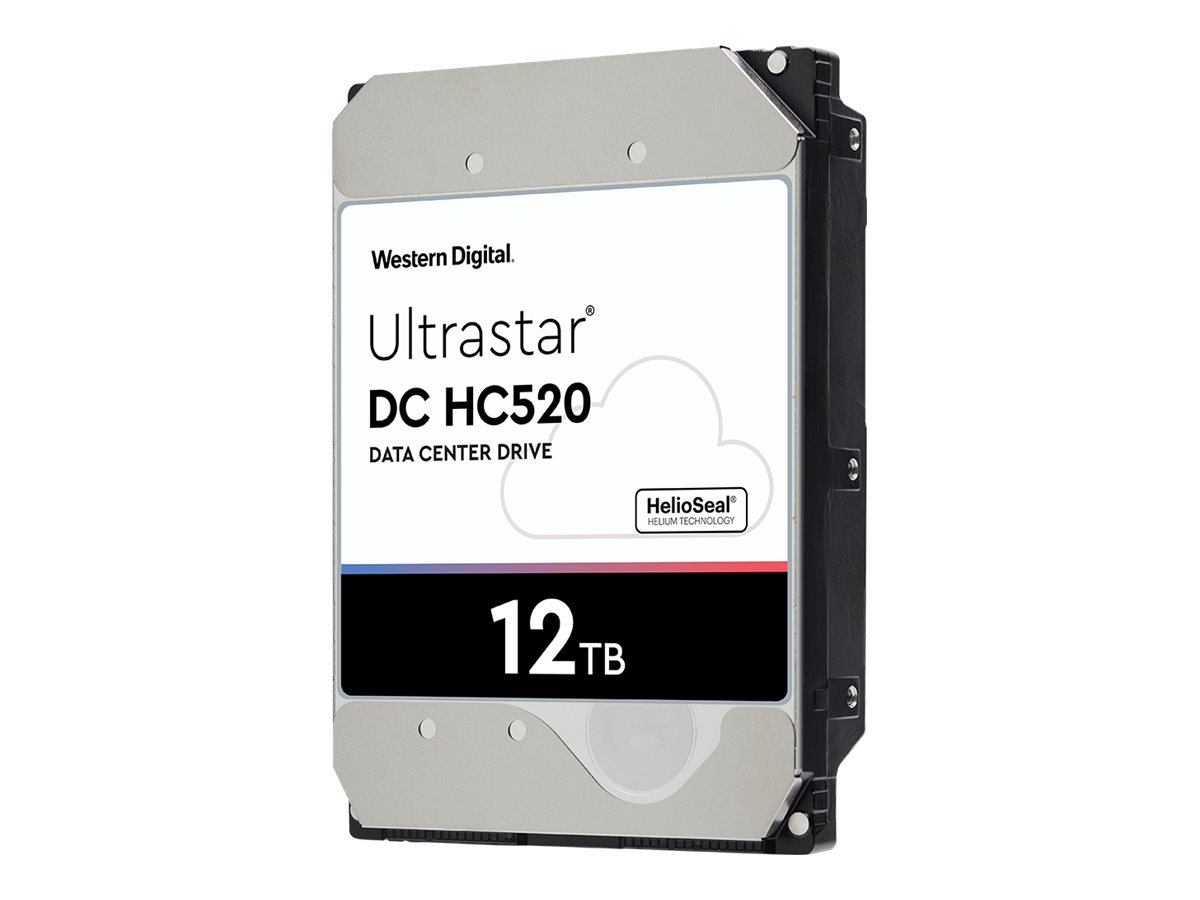

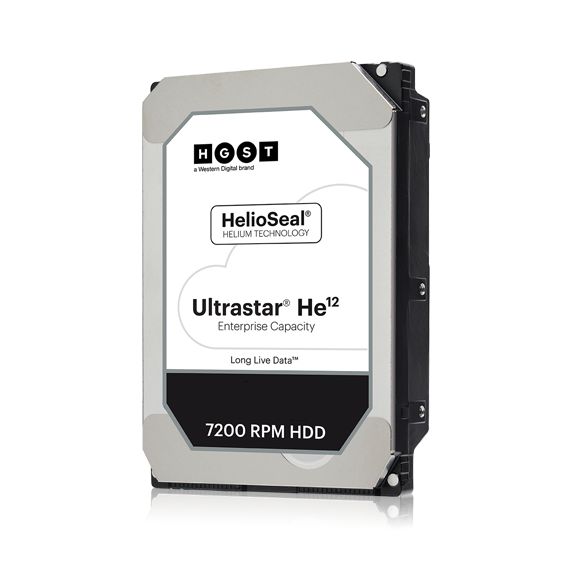

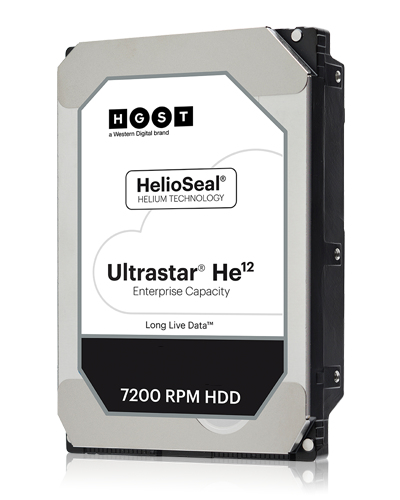

WD Ultrastar DC HC520 HUH721212AL5204 - Hard drive - 12 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB | 0F29532
Please sign in so that we can notify you about a reply
Product Features
- HelioSeal Technology helps solve challenges facing next generation data centers
Data centers are facing growing pressures. Data volume is expanding, operating costs are rising, yet budgets remain flat. Datacenter ready features like a second generation dual-stage actuator - the Western Digital Micro Actuator - enhance head-positioning accuracy to deliver better performance, data integrity and overall drive reliability, especially in multi-drive environments where operational vibration is present. - Data durability and data security to support compliance and privacy requirements
As drive capacity grows beyond single-digit TBs, object storage systems with erasure coding provide better data durability compared to RAID systems, given its tolerance for simultaneous error conditions. Compliance and privacy requirements drive the need for increased data security. The Ultrastar DC HC520 offers security and encryption options to help protect data from unauthorized use, including TCG SAS models.
Special Fetures
- Reliable, field-proven design
- Ready for capacity-optimized workloads
- Lower power consumption
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 12 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 512 |
| Features | Perpendicular Magnetic Recording (PMR), Secure Erase function, Enterprise, 24x7 availability |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 660 g |
| Performance | |
| Drive Transfer Rate | 1.2 GBps (external) |
| Seek Time | 8 ms (average) |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Power Consumption | 9.8 Watt (active) <br /> 6.1 Watt (idle) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Shock Tolerance (operating) | 70 g @ 2 ms half-sine wave |
| Shock Tolerance (non-operating) | 300 g @ 2 ms half-sine wave |
| Vibration Tolerance (operating) | 0.67 g @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 g @ 2-200 Hz |
Features - Western Digital - 0F29532
Form Factor
- 3.5"
- Internal
Capacity
12TB
Interface
- SAS
More Details
Product Code
04:283620
EAN Code
8717306638906
Manufacturer
Western Digital
