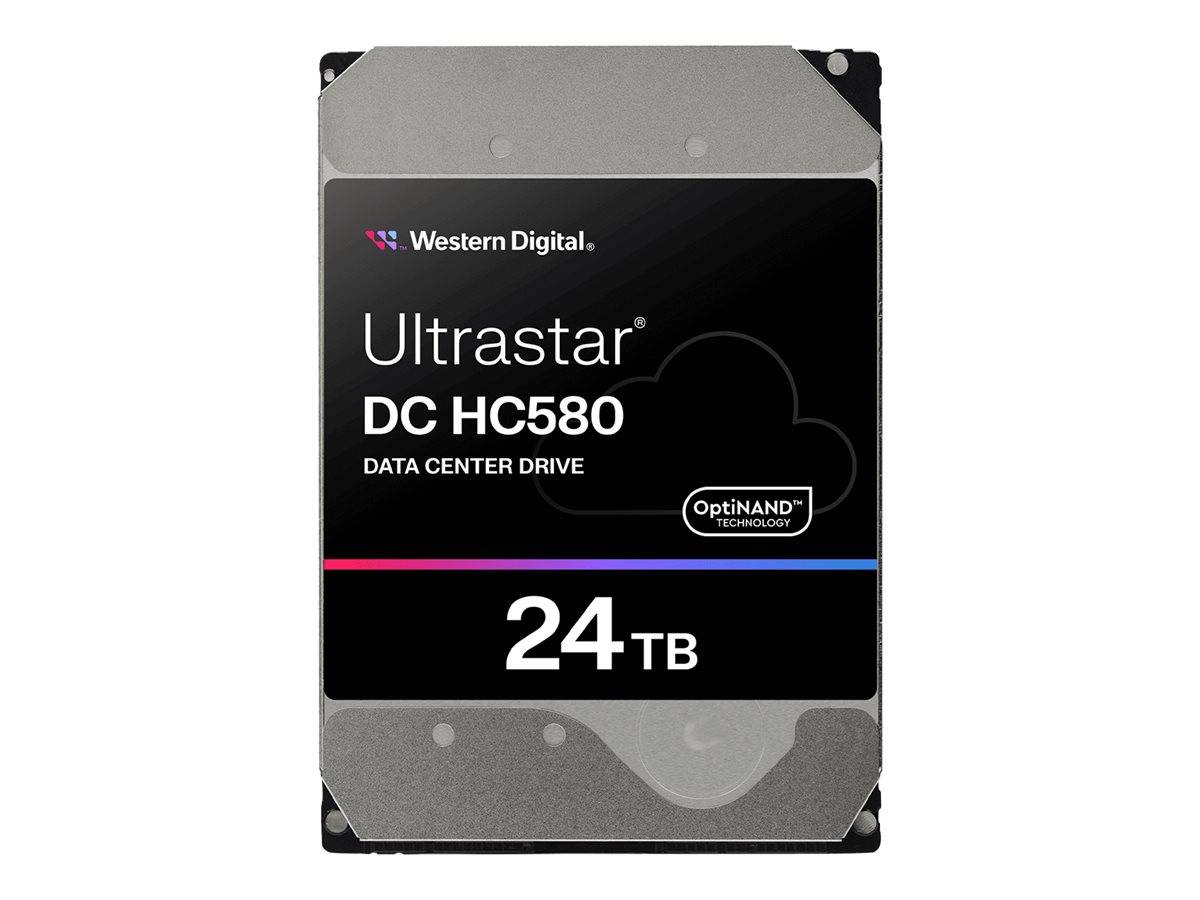

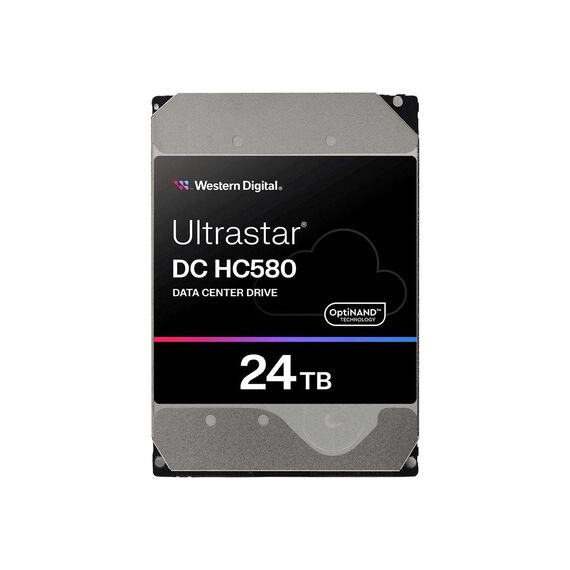

WD Ultrastar DC HC580 WUH722424ALE6L4 / Hard drive / 24 TB / internal / 3.5" / SATA 6Gb/s / 7200 rpm / buffer: 512 MB | 0F62796
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 24 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 512 MB |
| Features | HelioSeal, advanced format 512e, advanced format 4Kn, 24x7 availability, Massive Scale Out (MSO), Conventional magnetic recording (CMR), Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), OptiNAND technology, ArmorCache Technology |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 670 g |
| Performance | Performance |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 298 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | Reliability |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
| Power | Power |
| Power Consumption | 8.5 Watt (random read/write) ¦ 5.5 Watt (idle) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine wave |
| Shock Tolerance (non-operating) | 200 g @ half-sine wave |
| Vibration Tolerance (operating) | 0.7 gRMS @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 gRMS @ 2-200 Hz |
Features - Western Digital - 0F62796
Form Factor
- 3.5"
- Internal
Capacity
24TB
Interface
- SATA
More Details
Product Code
07:134564
EAN Code
0829686008830
Manufacturer
Western Digital
