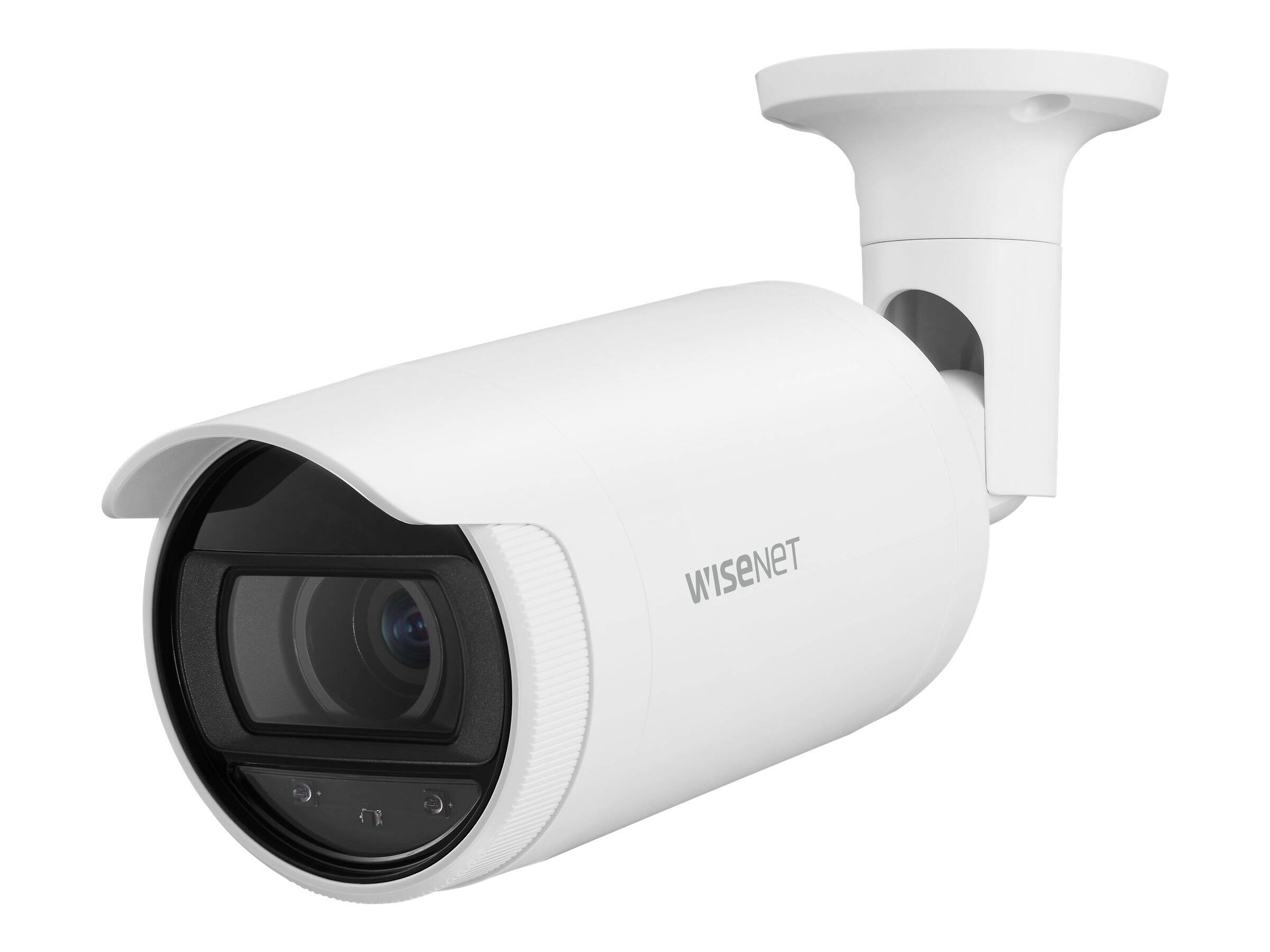

Hanwha Vision WiseNet ANO-L6082R / Network surveillance camera / bullet / indoor, outdoor / colour (Day&Night) / 2 MP / 1920 x 1080 / auto iris / motorized / LAN 10/100 / H.264, H.265, MJPEG / PoE Class 3 | ANO-L6082R
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to withstand a wide range of temperatures from -30°C to 55°C and humidity up to 95% RH, making it an ideal choice for both indoor and outdoor environments. - Advanced optical performance
Features a motorized zoom lens with a focal length range of 3.3 mm to 10.3 mm, providing flexibility in capturing wide angles or detailed close-ups. The auto iris and manual focus adjustment ensure optimal image clarity under varying lighting conditions. - High-quality imaging
Equipped with a 1/2.8" CMOS sensor and capable of delivering high-resolution video at 1920 x 1080 with a frame rate of 30 fps, ensuring detailed and smooth video playback. - Enhanced night vision capability
Infrared LEDs provide clear night vision up to 30 m, allowing for reliable surveillance in complete darkness with automatic switching between color and B&W modes. - Comprehensive network compatibility
Supports a wide array of network protocols including IPv4, IPv6, DHCP, and more, ensuring seamless integration into existing network infrastructures and easy setup.
Special Features
- Flexible temperature and humidity operation ranges
- Motorized zoom with auto iris for clear images
- Full HD 1080p resolution at 30 fps for smooth video
- 30 m infrared night vision for around-the-clock surveillance
- Supports a broad spectrum of network protocols for easy integration
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 7.8 cm |
| Depth | 7.8 cm |
| Height | 26.2 cm |
| Weight | 390 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - indoor, outdoor |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.03 lux - colour - F1.6 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Video Capture | 1920 x 1080 @ 30 fps |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Backlight Compensation (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, Privacy Mask Function, Motion Detection Technology, Lens Distortion Compensation (LDC), image flip, image mirror, auto gain control, auto white balance, tamper-detection, Hallway View, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, anti-flicker, Virtual Line detection, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 3.1 x |
| Focal Length | 3.3 mm - 10.3 mm |
| Lens Iris | F/1.6-3.3 auto iris (DC) |
| Focus Adjustment | Manual |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 30.6 - 105.2 |
| Vertical Field of View (degree) | 17.2 - 54.8 |
| Diagonal Field of View (degree) | 35.1 - 126.9 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, EAP |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP66, IEEE 802.3af |
| Colour | White |
| Power | Power |
| Power Requirements | PoE Class 3 |
| Power Device | 5 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 95% RH |
Features - Hanwha Techwin - ANO-L6082R
More Details
Product Code
07:21246116
EAN Code
8801089228673
Manufacturer
Hanwha Techwin
