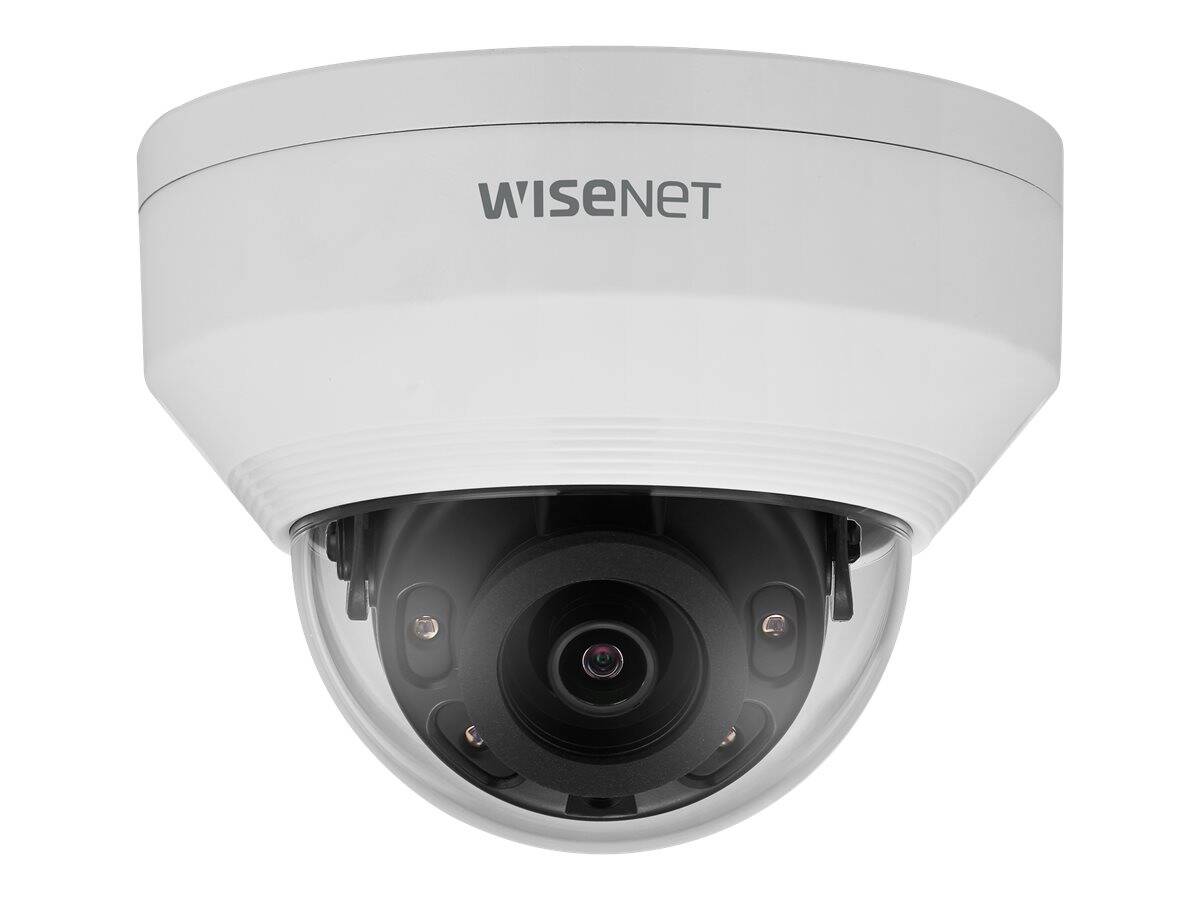

Hanwha Vision WiseNet ANV-L7012R - Network surveillance camera - pan / tilt - dome - indoor, outdoor - vandal-proof - colour (Day&Night) - 4 MP - 2560 x 1440 - fixed focal - LAN 10/100 - H.264, H.265, MJPEG - PoE Class 3 | ANV-L7012R
Please sign in so that we can notify you about a reply
Product Features
- Wide coverage
With an angular field of view reaching up to 114.6 degrees, the Hanwha Vision WiseNet ANV-L7012R ensures comprehensive coverage, minimizing blind spots in surveillance. - Exceptional clarity
Leveraging a 4 million pixel CMOS sensor, this network surveillance camera delivers high-resolution video capture at 2560 x 1440, ensuring detailed and clear footage. - Versatile performance
Equipped with day and night functionality, the camera adapts to varying lighting conditions, providing reliable surveillance around the clock. Its infrared LEDs illuminate up to 20 m, ensuring visibility in complete darkness. - Durable design
Designed to withstand harsh conditions, the camera is compliant with IK10 (vandal-proof) and IP66 (dust and water-resistant) standards, making it suitable for both indoor and outdoor installations. - Advanced features
Features such as Wide Dynamic Range (WDR), Motion Detection Technology, and WiseStream II support enhance the camera's ability to capture high-quality video in diverse scenarios, from bright backlight to low-light environments.
Special Fetures
- 114.6-degree angular field of view for comprehensive surveillance coverage
- 4 million pixel CMOS sensor for high-resolution video capture
- Day and night functionality with infrared LEDs for 24/7 surveillance
- Compliant with IK10 and IP66 standards for indoor and outdoor use
- Supports advanced features like WDR, Motion Detection, and WiseStream II
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Width | 12.03 cm |
| Depth | 12.03 cm |
| Height | 9.17 cm |
| Weight | 410 g |
| Camera | |
| Type | Colour - Day&Night - pan / tilt - indoor, outdoor - vandal-proof |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.13 lux - colour - F1.6 - shutter 1/30 sec <br /> 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 20 m |
| Video Capture | 2560 x 1440 @ 30 fps <br /> 1920 x 1080 @ 30 fps <br /> 1280 x 960 @ 30 fps <br /> 1280 x 720 @ 30 fps <br /> 800 x 600 @ 30 fps <br /> 800 x 448 @ 30 fps <br /> 720 x 576 @ 30 fps <br /> 720 x 480 @ 30 fps <br /> 640 x 480 @ 30 fps <br /> 640 x 360 @ 30 fps <br /> 320 x 240 @ 30 fps |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Backlight Compensation (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, Privacy Mask Function, Motion Detection Technology, Lens Distortion Compensation (LDC), image flip, image mirror, auto gain control, auto white balance, tamper-detection, Hallway View, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, anti-flicker, Virtual Line detection, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming, Defocus Detection, IP address filtering, digital noise reduction, Handover, Directional Detection, cross line detection, digest authentication, user access log, WiseStream II support |
| Image Sensor | |
| Type | 4 MP CMOS 1/3" |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 3 mm |
| Lens Iris | F/1.6 |
| Focus Adjustment | Fixed focus |
| Min Focus Distance | 1.1 m |
| Horizontal Field of View (degree) | 98.3 |
| Vertical Field of View (degree) | 54.2 |
| Diagonal Field of View (degree) | 114.6 |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 67 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IP66, IEEE 802.3af, IK10, IEEE 802.1x |
| Colour | White |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 5.7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 95% RH |
Features - Hanwha Techwin - ANV-L7012R
More Details
Product Code
07:21246115
EAN Code
8801089228628
Manufacturer
Hanwha Techwin
