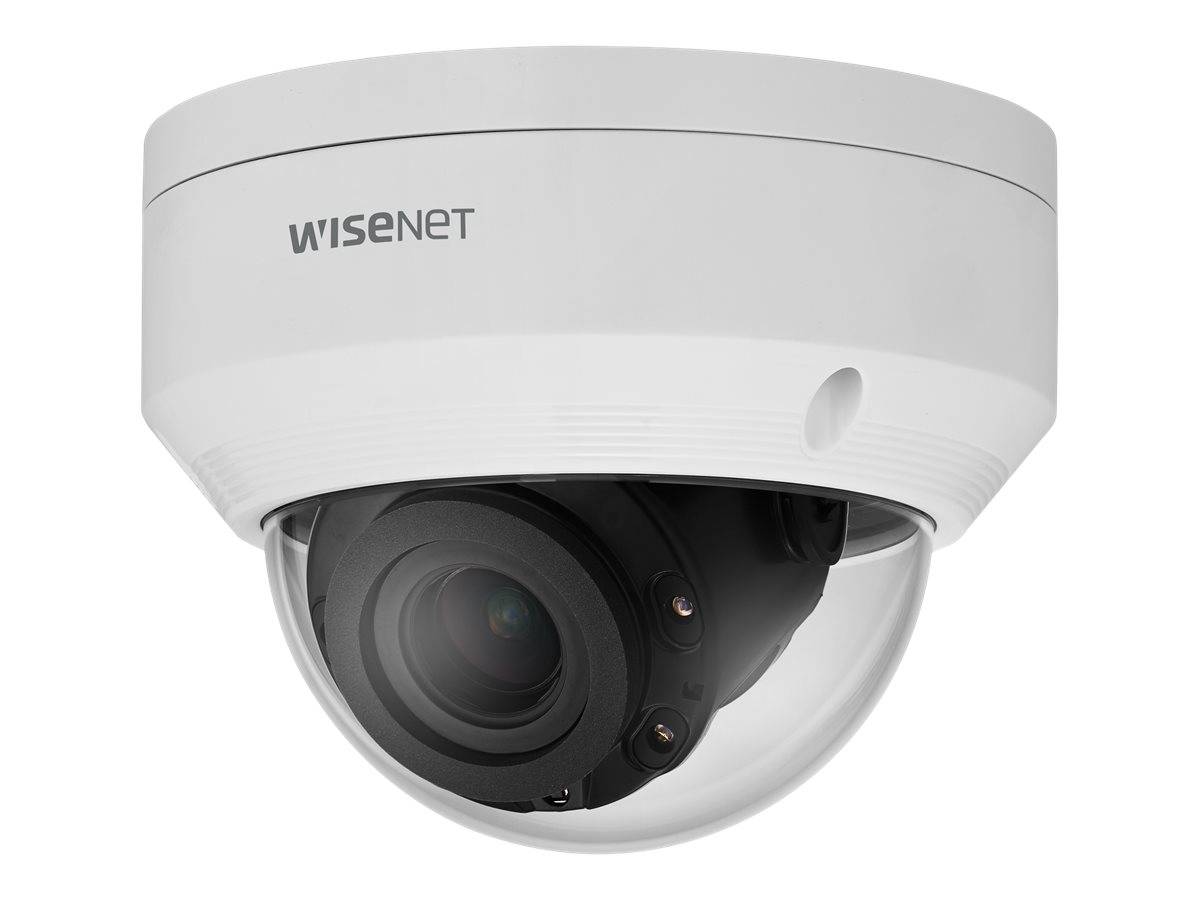

Hanwha Vision WiseNet ANV-L7082R / Network surveillance camera / PTZ / dome / indoor, outdoor / vandal-proof / colour (Day&Night) / 4 MP / 2560 x 1440 / auto iris / motorized / LAN 10/100 / H.264, H.265, MJPEG / PoE Class 3 | ANV-L7082R
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to withstand a wide range of temperatures from -30°C to 55°C and humidity up to 95% RH, ensuring reliable operation in diverse environmental conditions. - Advanced optical performance
Features a motorized zoom lens with a focal length range of 3.3 mm to 10.3 mm, auto iris control, and automatic focus adjustment, providing sharp, clear images across varying distances. - Versatile surveillance capability
Equipped with infrared LEDs for up to 30 m of visibility in complete darkness, coupled with color and B&W modes, this camera ensures round-the-clock surveillance. - High-quality video output
Supports multiple resolutions up to 2560 x 1440 with a frame rate of 30 fps, utilizing H.264, H.265, and MJPEG formats for efficient storage and streaming. - Comprehensive network compatibility
Offers extensive network protocol support, including IPv4, IPv6, DHCP, and more, ensuring seamless integration into existing network infrastructures.
Special Features
- 30 m infrared visibility for night surveillance
- Operational in temperatures from -30°C to 55°C
- 2560 x 1440 resolution at 30 fps for crisp images
- Supports H.264, H.265, and MJPEG video formats
- Motorized zoom and auto focus for detailed views
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Width | 13.78 cm |
| Depth | 13.78 cm |
| Height | 10.71 cm |
| Weight | 550 g |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - indoor, outdoor - vandal-proof |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.1 lux - colour - F1.6 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Video Capture | 2560 x 1440 @ 30 fps 1920 x 1080 @ 30 fps 1280 x 960 @ 30 fps 1280 x 720 @ 30 fps 800 x 600 @ 30 fps 800 x 448 @ 30 fps 720 x 576 @ 30 fps 720 x 480 @ 30 fps 640 x 480 @ 30 fps 640 x 360 @ 30 fps 320 x 240 @ 30 fps |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Backlight Compensation (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, Privacy Mask Function, Motion Detection Technology, Lens Distortion Compensation (LDC), image flip, image mirror, auto gain control, auto white balance, tamper-detection, Hallway View, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, anti-flicker, Virtual Line detection, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming, Defocus Detection, IP address filtering, digital noise reduction, Handover, Directional Detection, cross line detection, digest authentication, user access log, WiseStream II support |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 3.1 x |
| Focal Length | 3.3 mm - 10.3 mm |
| Lens Iris | F/1.6-3.3 auto iris (DC) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 28.1 - 94.8 |
| Vertical Field of View (degree) | 15.8 - 50.2 |
| Diagonal Field of View (degree) | 32.2 - 112.9 |
| Panning | Panning |
| Range (degree) | 0 to 350 |
| Tilting | Tilting |
| Range (degree) | 0 to 67 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP66, IEEE 802.3af, IK10, IEEE 802.1x |
| Colour | White |
| Power | Power |
| Power Requirements | PoE Class 3 |
| Power Device | 6 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 95% RH |
Features - Hanwha Techwin - ANV-L7082R
More Details
Product Code
07:21246137
EAN Code
8801089228703
Manufacturer
Hanwha Techwin
