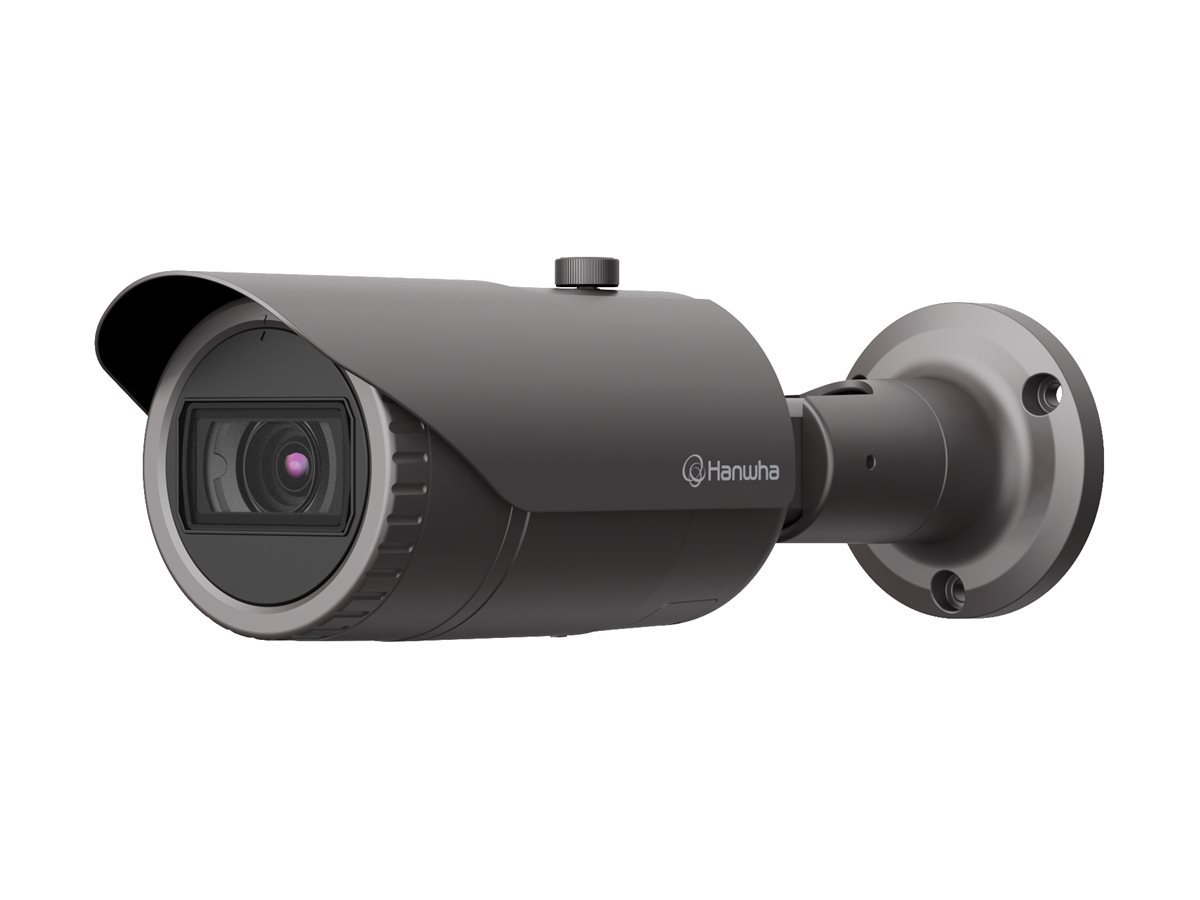

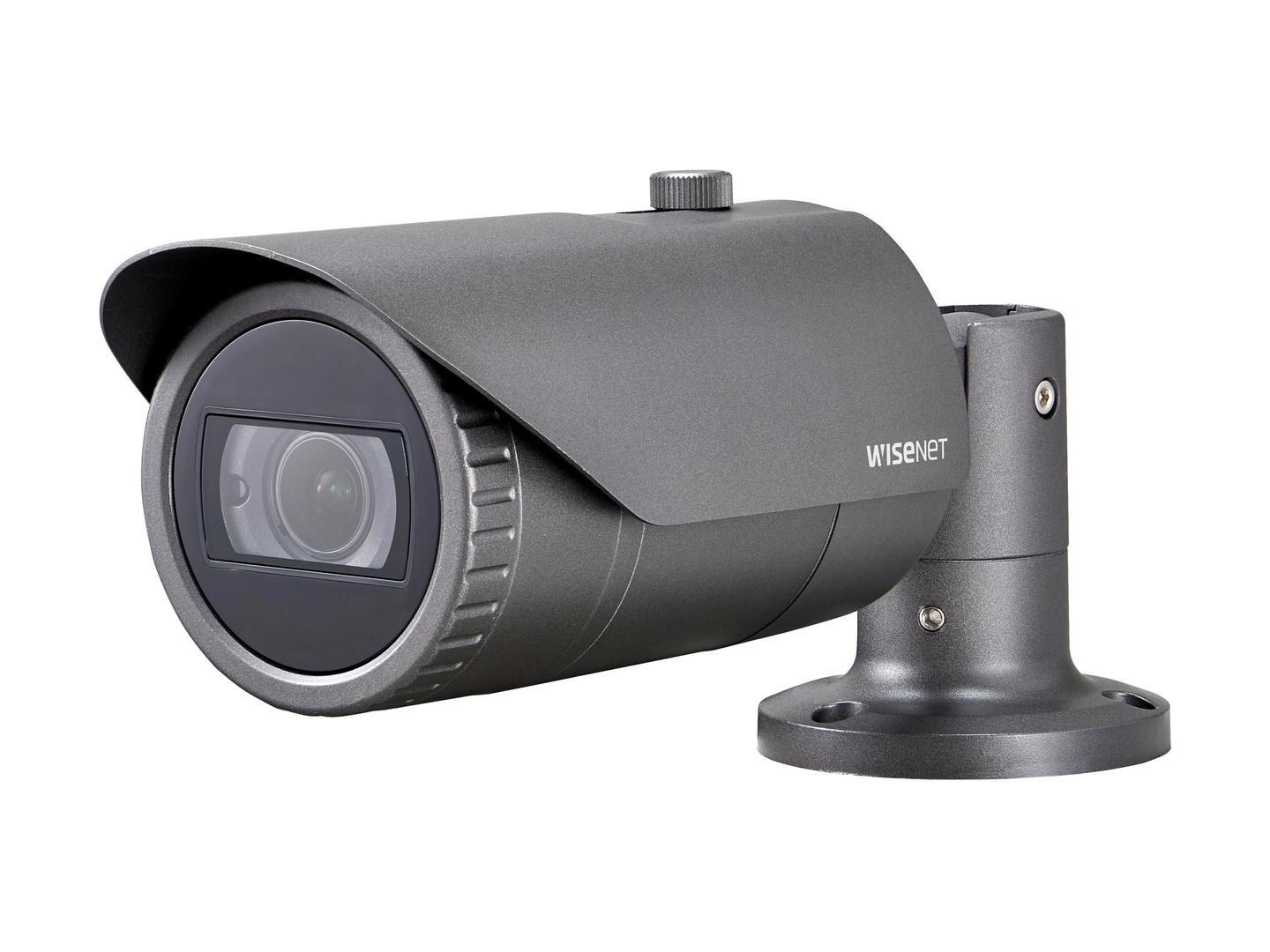

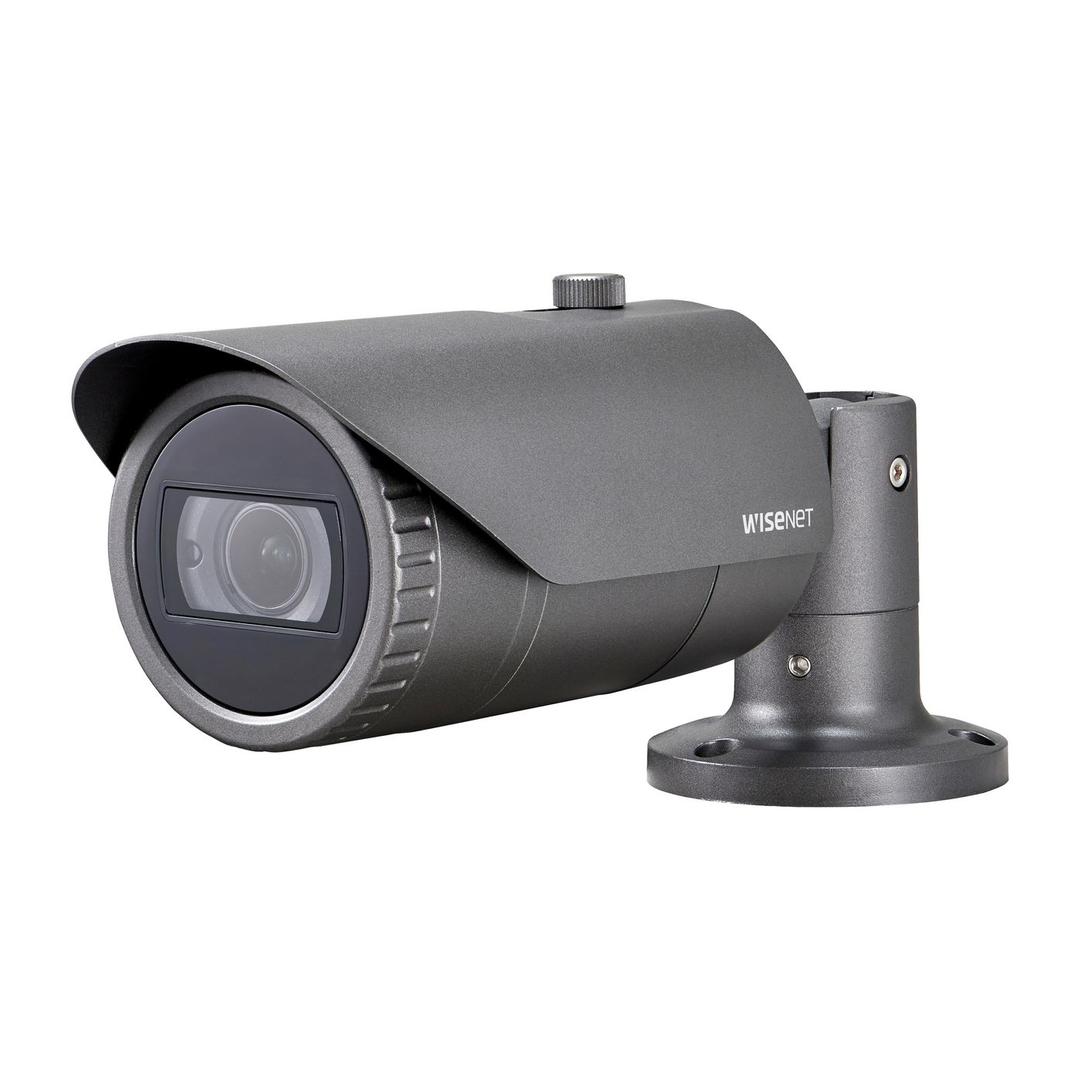

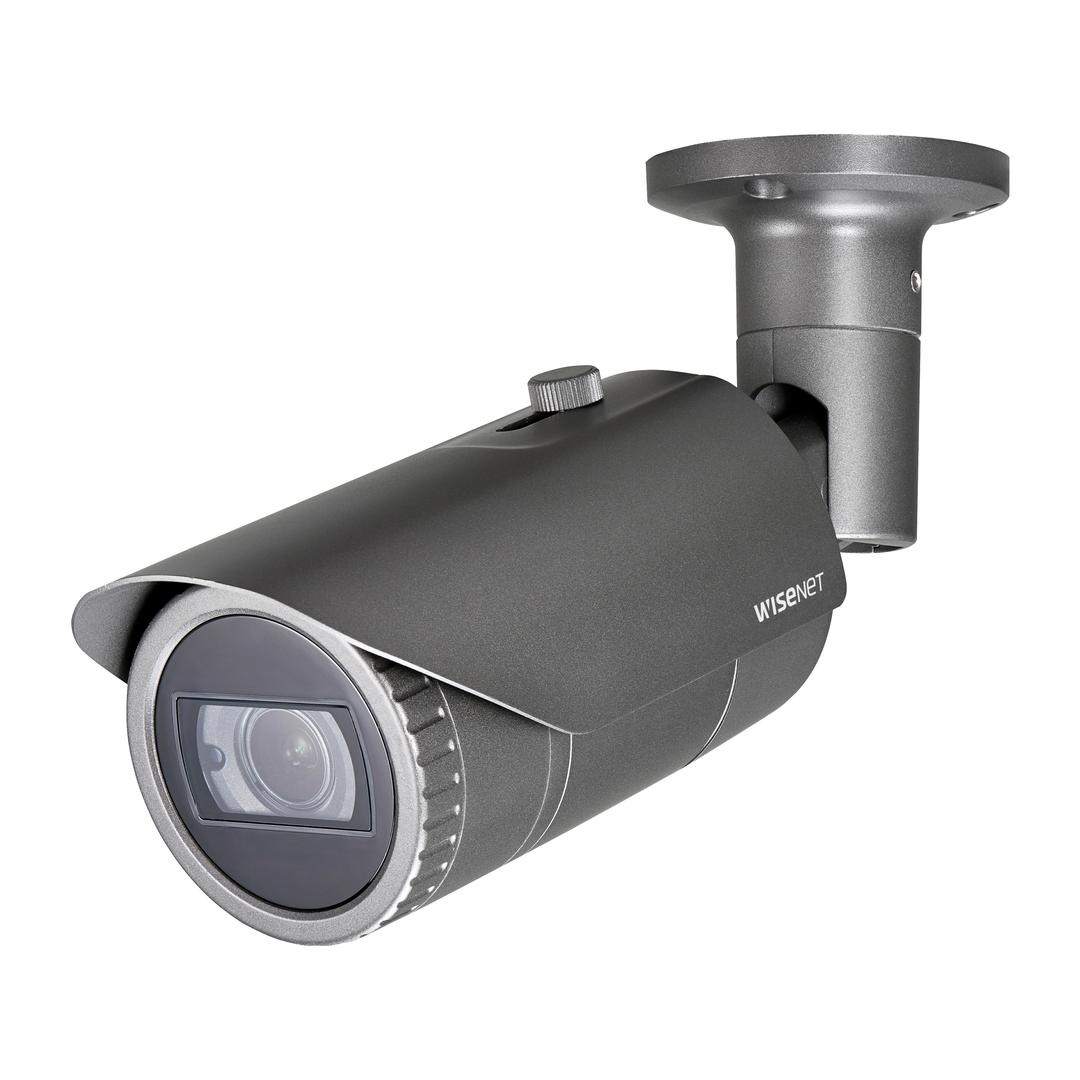

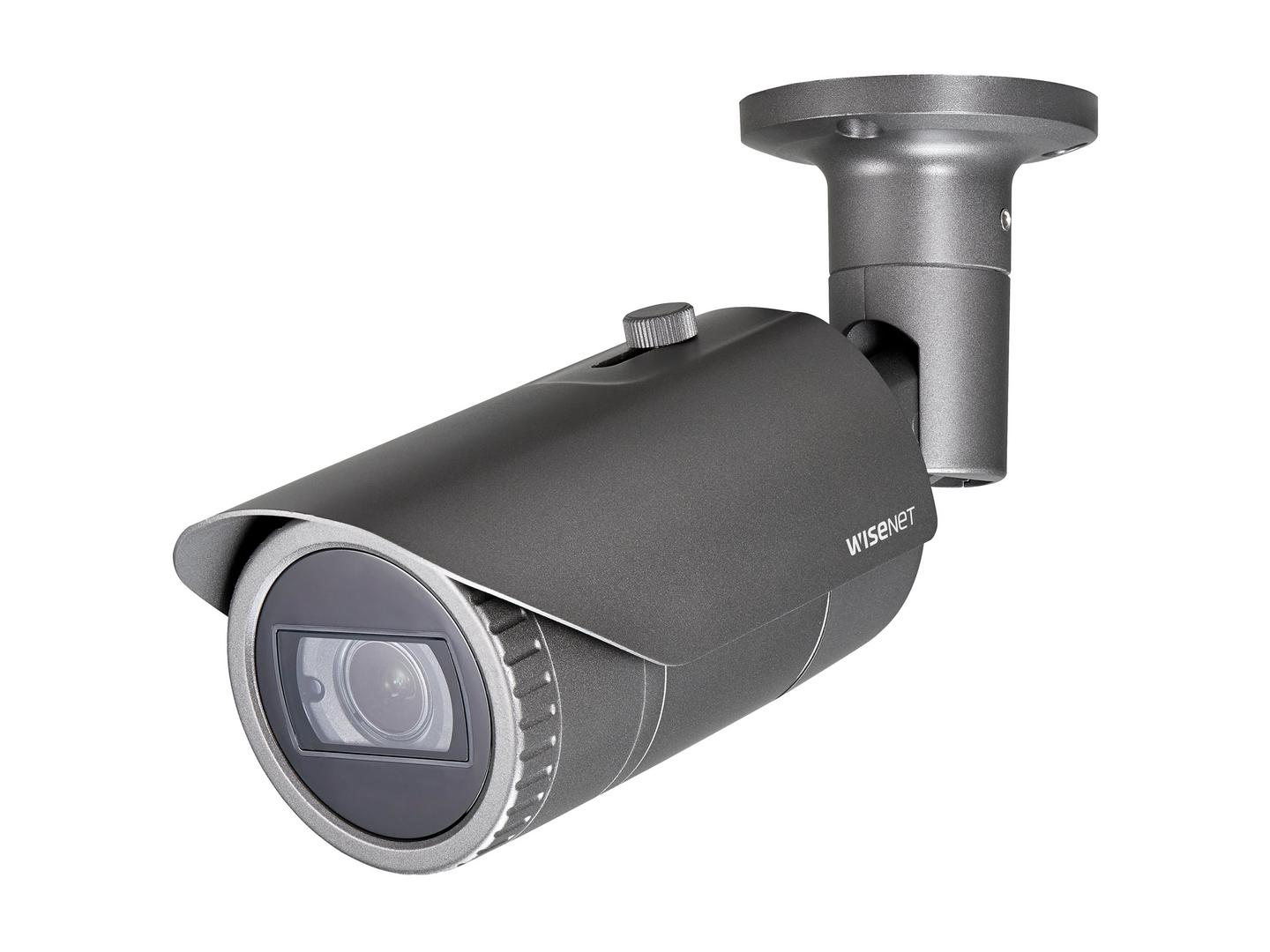

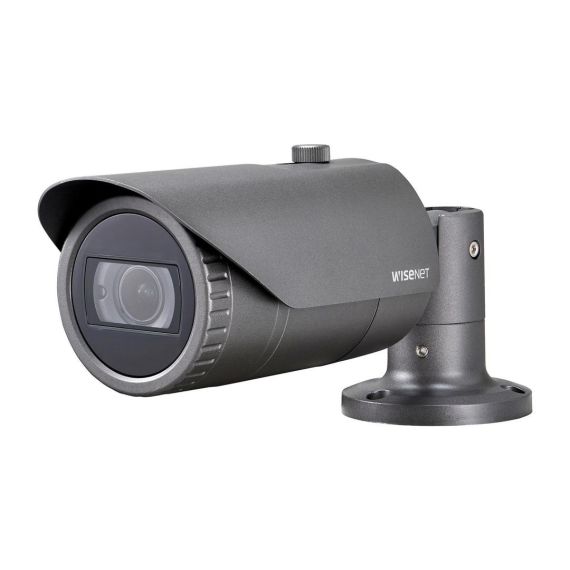

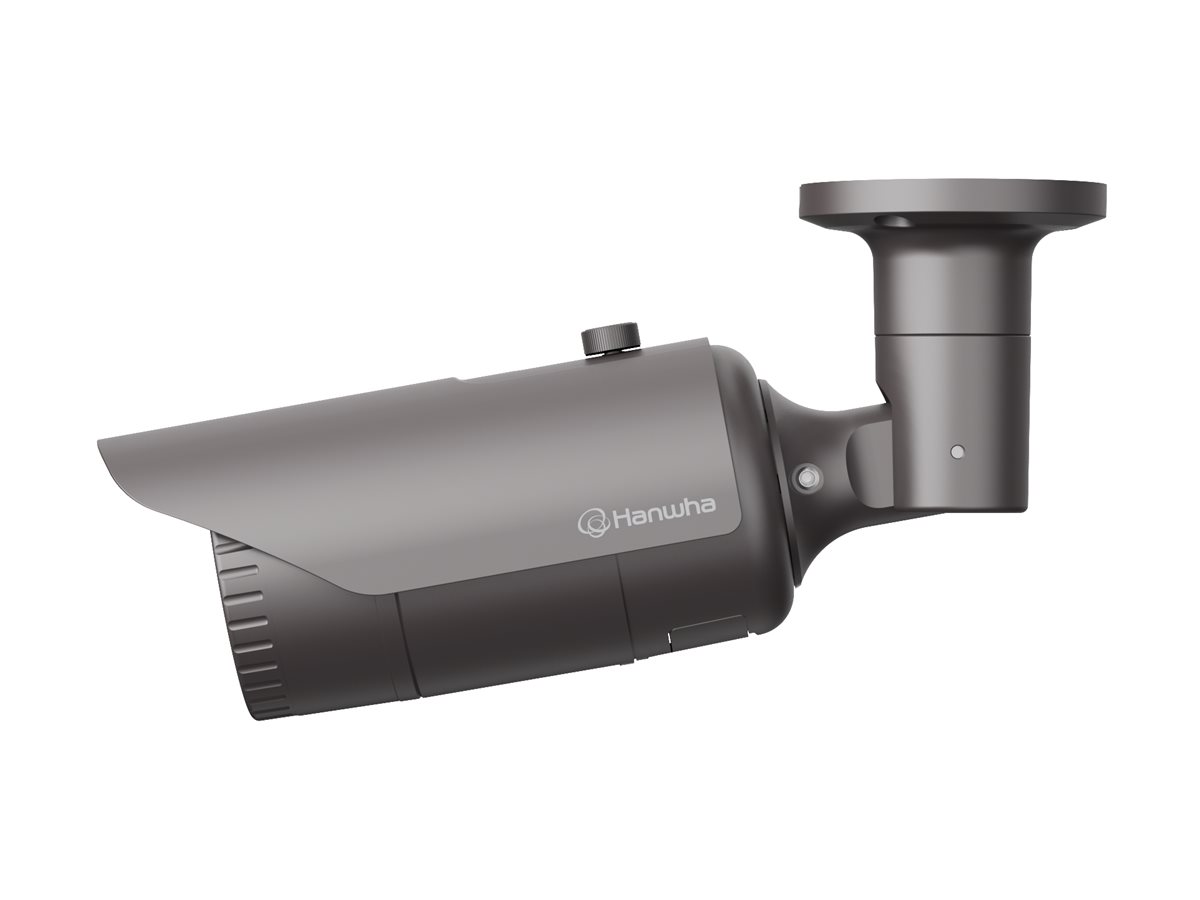

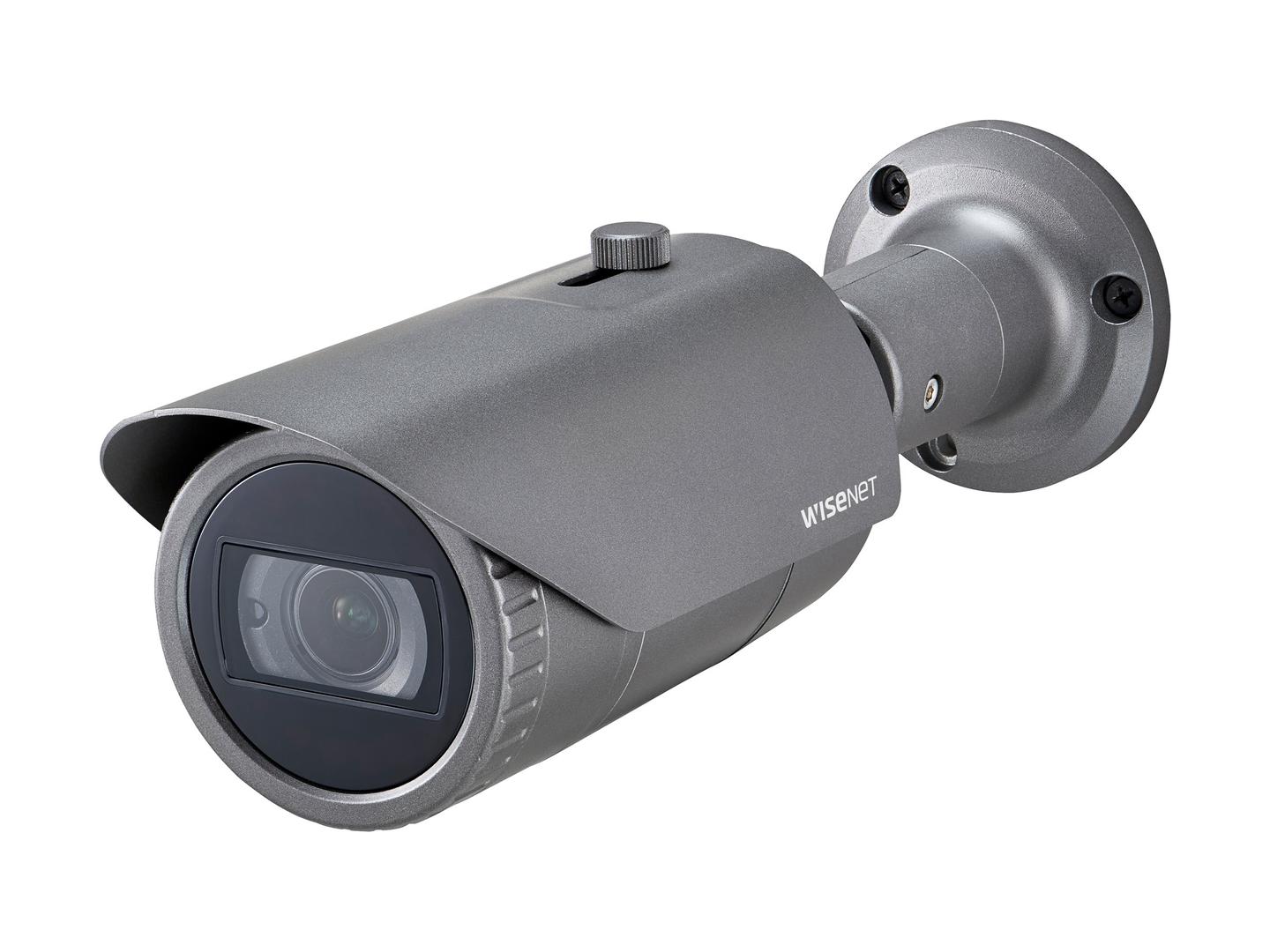

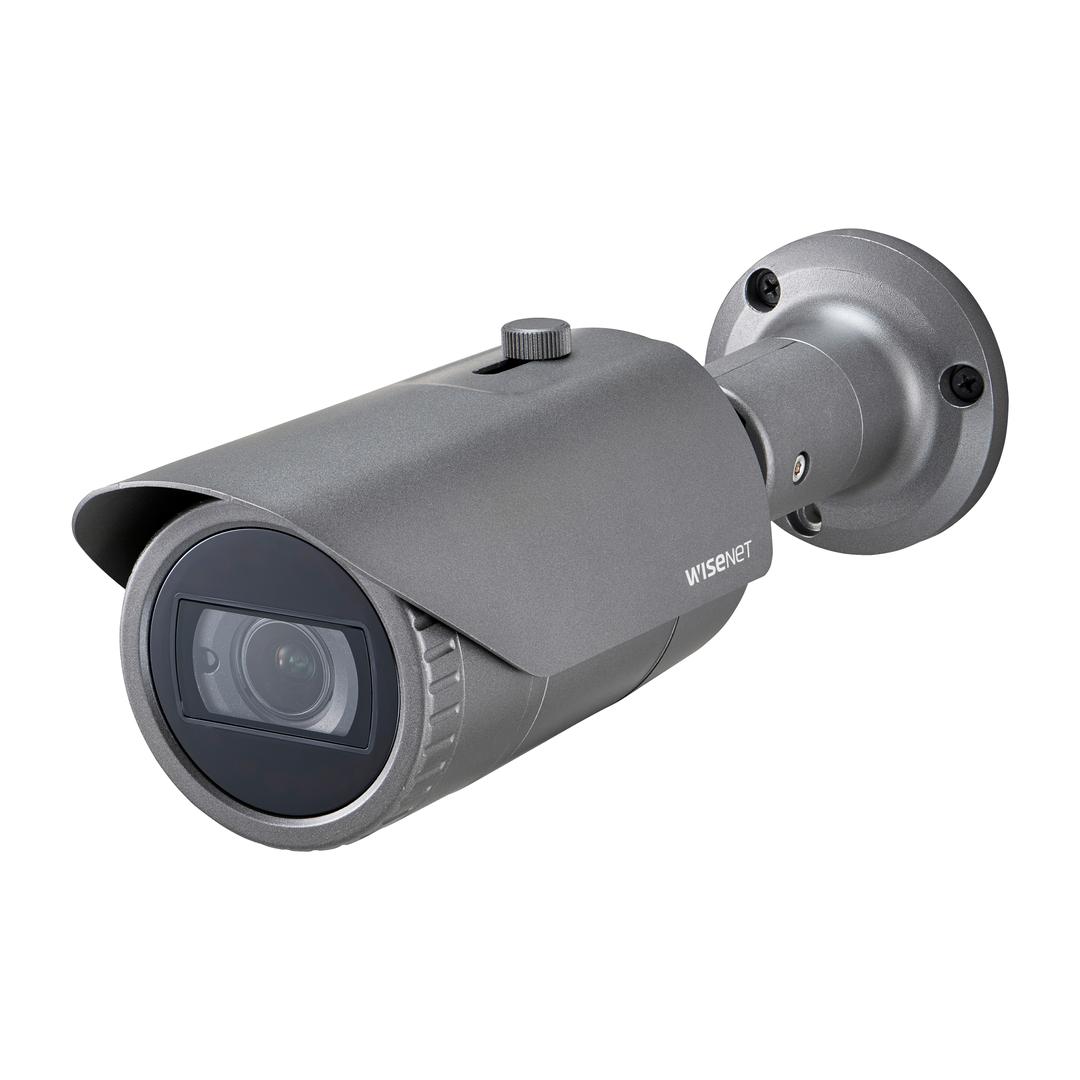

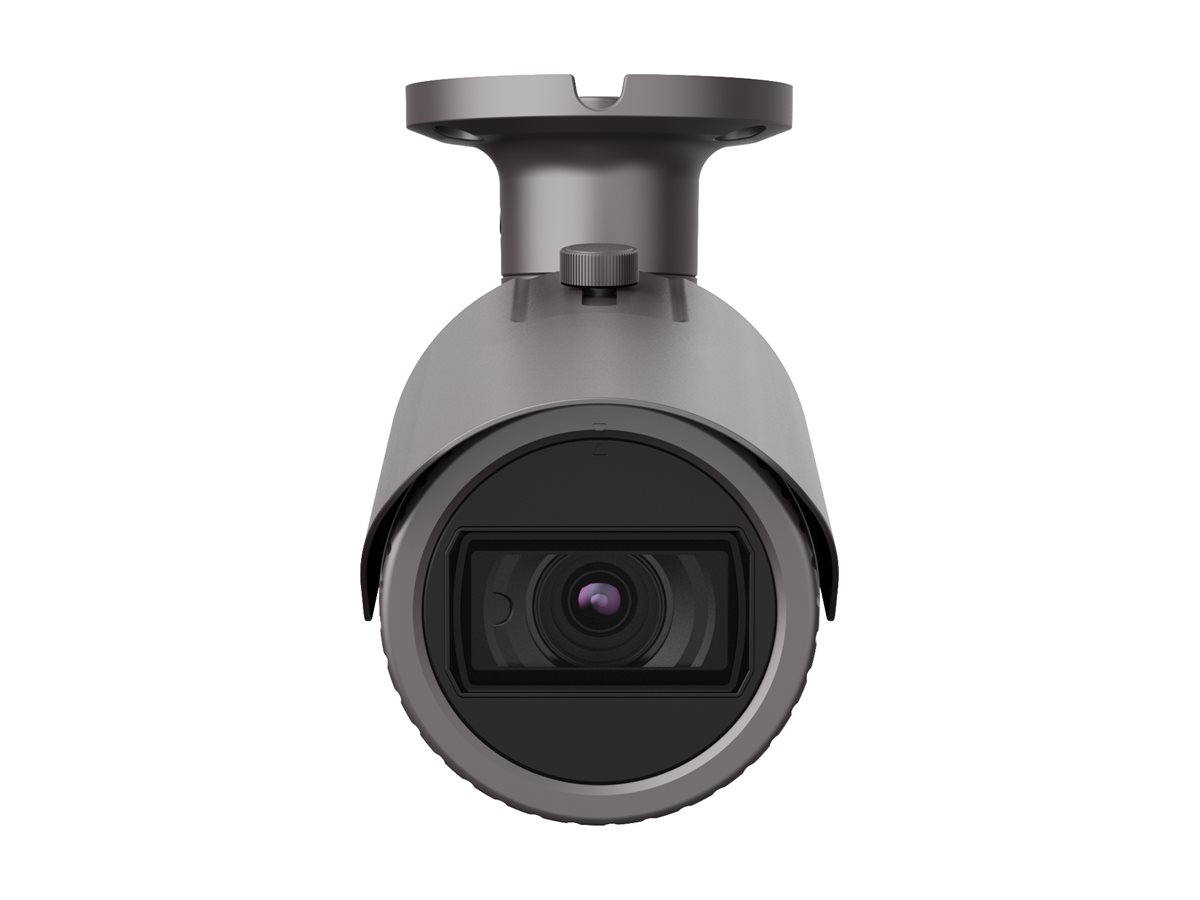

Hanwha Vision WiseNet Q QNO-6082R / Network surveillance camera / colour (Day&Night) / 2 MP / 1920 x 1080 / motorized / composite / LAN 10/100 / MJPEG, H.264, H.265 / PoE Class 3 | QNO-6082R
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to withstand a wide range of temperatures from -30°C to 55°C and humidity levels of 0 - 90%, ensuring reliable operation in diverse environmental conditions. - Versatile storage options
Supports microSD, microSDHC, and microSDXC cards, providing flexible storage solutions that meet various user needs for data retention. - Expansive field of view
Equipped with a lens system that offers a broad angular field of view ranging from 38° to 132°, capturing more area with less distortion, ideal for comprehensive surveillance coverage. - Advanced optical performance
Features a CMOS optical sensor with a 1/2.8" size and 2,000,000 pixels, delivering high-quality, detailed images even in low-light conditions with minimum illumination as low as 0.095 lux in color mode and 0 lux in B&W. - Enhanced connectivity and security
Supports a wide array of network protocols including IPv4, IPv6, HTTPS, and SNMP 3, alongside Ethernet 10Base-T/100Base-TX interface, ensuring secure and flexible integration into existing networks.
Special Fetures
- 30 m infrared distance for clear night vision
- Supports H.264, H.265, and MJPEG for efficient video compression
- IP66 and IK10 ratings for dust, water, and impact resistance
- Motion detection and tamper-detection for enhanced security
- WiseStream II support for optimized bandwidth and storage
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7.8 cm |
| Depth | 7.8 cm |
| Height | 25.98 cm |
| Weight | 900 g |
| Camera | |
| Type | Colour - Day&Night - fixed |
| Video Format | NTSC, PAL |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.095 lux - colour - F1.6 - shutter 1/30 sec <br /> 0 lux - B&W - infrared LEDs on |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, ONVIF (Profile T) support, direction detection |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Effective Pixels | 1920 x 1080 |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 3.1 x |
| Focal Length | 3.2 mm - 10 mm |
| Lens Iris | F/1.6-2.9 |
| Horizontal Field of View (degree) | 33.2 - 109 |
| Vertical Field of View (degree) | 18.7 - 57.4 |
| Diagonal Field of View (degree) | 38 - 132 |
| Interfaces | |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Ports | Composite video <br /> LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | FCC, cULus, IK10, IP66, IEEE 802.1x, IEEE 802.1af |
| Colour | Dark grey |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 7.4 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8.1 / 10, Apple macOS 10.12 - 10.14 |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% |
Features - Hanwha Techwin - QNO-6082R
More Details
Product Code
05:21246187
EAN Code
8801089165527
Manufacturer
Hanwha Techwin
