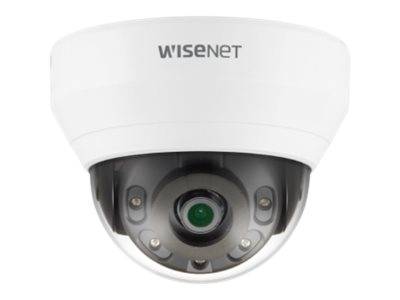

Hanwha Vision WiseNet Q QND-7012R / Network surveillance camera / dome / colour (Day&Night) / 4 MP / 2560 x 1440 / fixed focal / audio / composite / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE Class 3 | QND-7012R
Product Features
- Advanced imaging
Equipped with a 1/3" CMOS sensor and capable of capturing high-resolution images at 2560 x 1440, the Hanwha Vision WiseNet Q QND-7012R ensures detailed and clear surveillance footage, making it easier to identify subjects and details in various lighting conditions. - Versatile connectivity
This network surveillance camera supports a wide range of network protocols including IPv4, IPv6, DHCP, and more, ensuring seamless integration into existing network infrastructures and facilitating easy setup and management. - Enhanced night vision
With infrared LEDs providing clear vision up to 20 m in complete darkness and a minimum illumination of 0 lux with IR LEDs on, the camera ensures reliable surveillance around the clock, capturing clear black and white images even in pitch-black conditions. - Robust environmental design
Designed to operate in a wide range of temperatures from -10°C to 55°C and withstand humidity levels of 0 - 95% RH without condensation, the QND-7012R is built to perform in challenging environmental conditions. - Intelligent features
Features such as Motion Detection Technology, Defocus Detection, and Tamper-detection provide security measures. The camera's ability to send alerts and automate responses based on these detections makes it a smart choice for modern surveillance needs.
Special Features
- 1/3" CMOS sensor for high-resolution images
- Supports a wide range of network protocols for easy integration
- Infrared LEDs provide vision up to 20 m in complete darkness
- Operates in temperatures from -10°C to 55°C
- Security with Motion Detection and Tamper-detection
Product Specification
Device Type | Network surveillance camera |
Audio Support | Yes: built-in microphone |
Audio Formats | G.711, G.726, ADPCM |
Form Factor | Dome |
Connectivity Technology | Wired |
Width | 11 cm |
Depth | 11 cm |
Height | 8.6 cm |
Weight | 255 g |
Camera | Camera |
Type | Colour - Day&Night - fixed |
Digital Video Format | MJPEG, H.264, H.265 |
Max Digital Video Resolution | 2560 x 1440 |
Motion Detection | Yes |
Exposure Range | 1/5 sec - 1/12000 sec |
Minimum Illumination | 0.15 lux - colour - F2.0 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
Infrared LEDs | Yes |
Infrared Distance | 20 m |
Video Capture | 2560 x 1440 @ 30 fps |
RAM | 512 MB |
Flash Memory | 256 MB |
Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Automatic Tracing White (ATW), Lens Distortion Compensation (LDC), Defocus Detection, direction detection, Motion Detection Technology, tamper-detection, Virtual Line detection, Multicast Streaming, Unicast Streaming, WiseStream II support, Privacy Mask Function, Variable Bitrate (VBR), Constant Bitrate (CBR), auto gain control, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, WiseStream Smart Codec |
Image Sensor | Image Sensor |
Type | 4 MP CMOS 1/3" |
Lens Construction | Lens Construction |
Type | Fixed focal |
Focal Length | 2.8 mm |
Lens Iris | F/2.0 |
Horizontal Field of View (degree) | 107.5 |
Vertical Field of View (degree) | 59.7 |
Diagonal Field of View (degree) | 122 |
Panning | Panning |
Range (degree) | 0 to 350 |
Tilting | Tilting |
Range (degree) | 0 to 67 |
Interfaces | Interfaces |
Video | Composite video |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP |
Alarm Inputs Qty | 1 |
Alarm Outputs Qty | 1 |
Expansion / Connectivity | Expansion / Connectivity |
Ports | Composite video LAN/power - RJ-45 |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | Miscellaneous |
Compliant Standards | IEEE 802.1af |
Colour | White, RAL 9003 |
Power | Power |
Power Requirements | DC 12 V / PoE Class 3 |
Power Device | 7.9 Watt |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 55 °C |
Relative Humidity (operating) | 0 - 95% RH |
