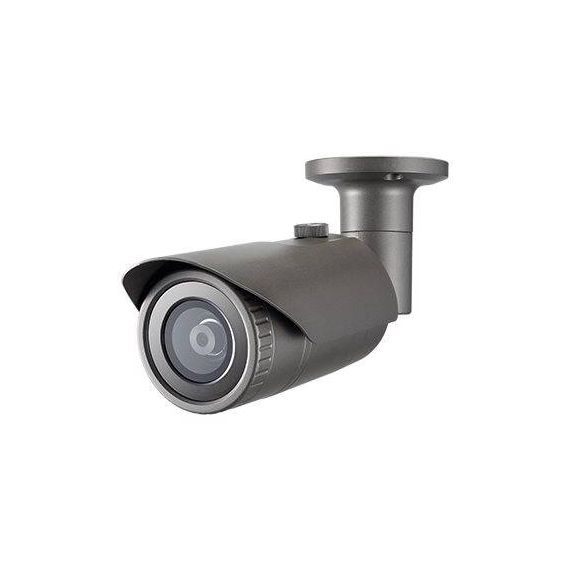

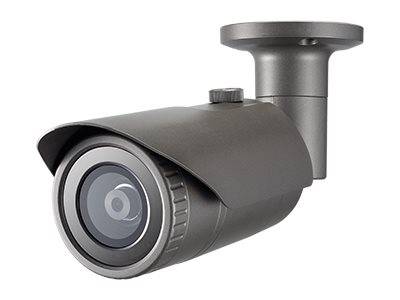

Hanwha Vision WiseNet Q QNO-8010R / Network surveillance camera / colour (Day&Night) / 5 MP / 2592 x 1944 / fixed focal / composite / LAN 10/100 / MJPEG, H.264, H.265 / PoE Class 3 | QNO-8010R
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to withstand a wide range of temperatures, from as low as -30°C to as high as 55°C, ensuring reliable operation in extreme weather conditions. - High-definition imaging
Equipped with a CMOS optical sensor and a resolution of 2592 x 1944 pixels, this camera delivers clear, detailed images for precise monitoring. - Advanced night vision capabilities
Features infrared LEDs with a 20 m range, providing exceptional night vision. Coupled with a minimum illumination of 0 lux in B&W mode, it ensures round-the-clock surveillance. - Comprehensive network compatibility
Supports a wide array of network protocols including IPv4, IPv6, DHCP, and more, facilitating seamless integration into existing network infrastructures. - Durable and secure design
Complies with IK10 and IP66 standards, making it resistant to impact and adverse weather conditions, while ensuring data security through IEEE 802.1x compliance.
Special Features
- 20 m infrared night vision for clear images in complete darkness
- Operates in temperatures ranging from -30°C to 55°C
- 2592 x 1944 resolution for high-definition surveillance footage
- Supports both H.265 and H.264 compression to optimize storage
- IP66 and IK10 rated for outdoor use and vandal resistance
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7 cm |
| Depth | 7 cm |
| Height | 24.6 cm |
| Weight | 680 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Video Format | NTSC, PAL |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.15 lux - colour - F2.0 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 20 m |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 2592 x 1944, 800 x 448 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, motion detection, ONVIF (Profile T) support, direction detection |
| Image Sensor | Image Sensor |
| Type | 5 MP CMOS 1/2.8" |
| Effective Pixels | 2592 x 1944 |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 104.7 |
| Vertical Field of View (degree) | 76.5 |
| Diagonal Field of View (degree) | 136 |
| Panning | Panning |
| Range (degree) | 350 |
| Tilting | Tilting |
| Range (degree) | 0 to 67 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, cULus, IK10, IP66, EAC, IEEE 802.3af, IEEE 802.1x |
| Colour | Dark grey |
| Power | Power |
| Power Requirements | PoE Class 3 |
| Power Device | 6.1 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 29 cm |
| Shipping Depth | 13 cm |
| Shipping Height | 12 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% |
Features - Hanwha Techwin - QNO-8010R
More Details
Product Code
07:21246178
EAN Code
8801089163288
Manufacturer
Hanwha Techwin
