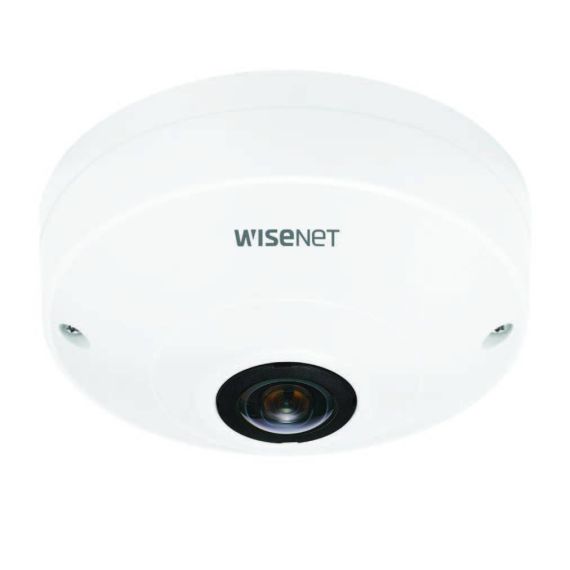

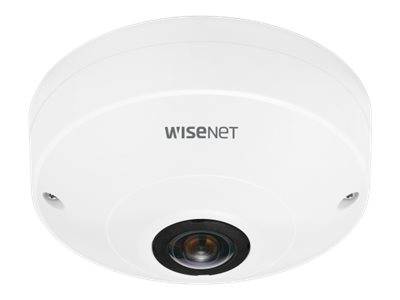

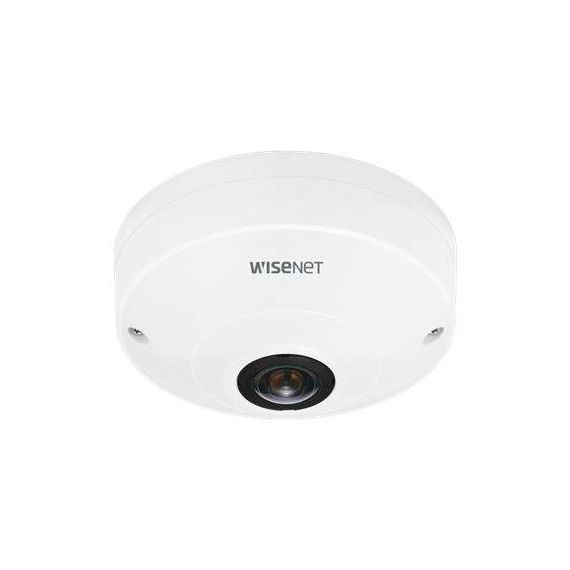

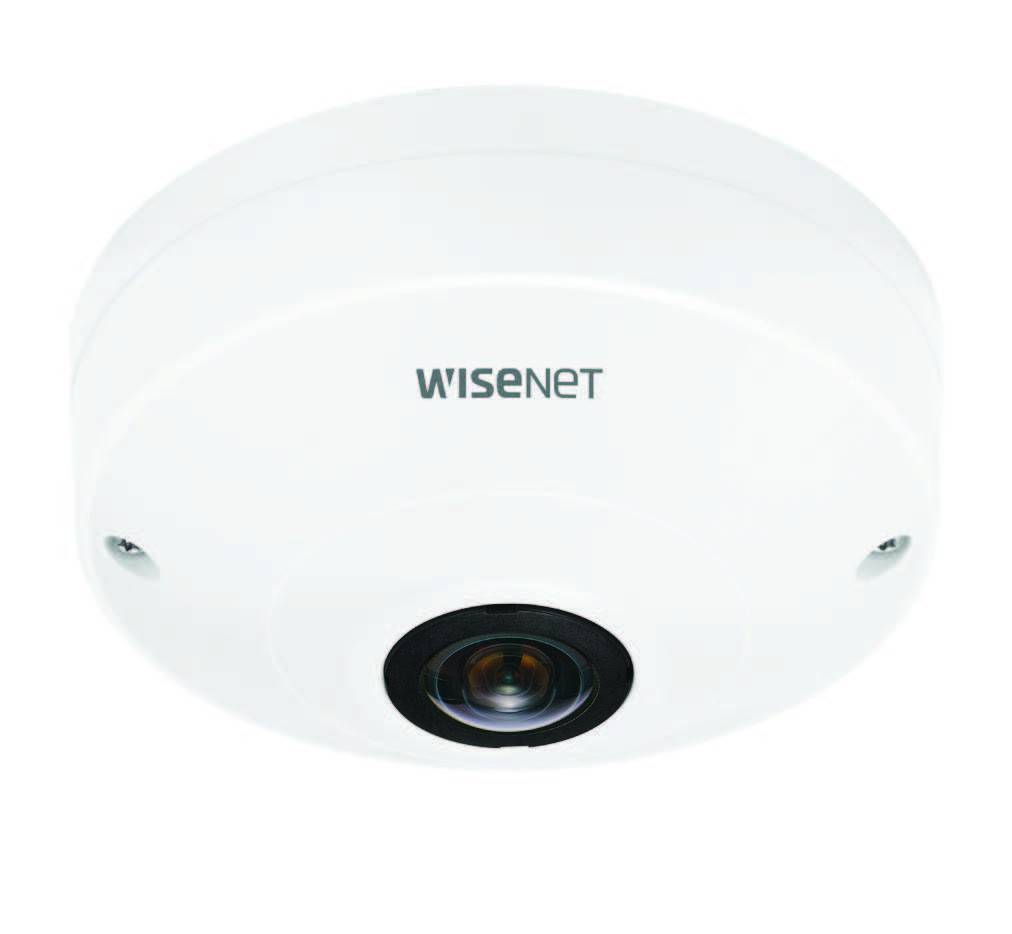

Hanwha Vision WiseNet Q QNF-8010 / Network surveillance camera / dome / indoor / colour (Day&Night) / 6 MP / 2048 x 2048 / fixed focal / composite / LAN 10/100 / MJPEG, H.264, H.265 / PoE Class 3 | QNF-8010
Please sign in so that we can notify you about a reply
Product Features
- Advanced connectivity
Equipped with both composite video and RJ-45 LAN/power interfaces, this camera offers versatile connectivity options for a variety of network configurations. - Exceptional image clarity
Featuring a 1/1.8" CMOS sensor and a wide range of video capture resolutions up to 2048 x 2048, the camera delivers sharp, detailed images for comprehensive surveillance coverage. - Robust environmental adaptability
Designed to operate in a wide range of temperatures from -10°C to 55°C and humidity levels from 0 - 90%, ensuring reliable performance in diverse environmental conditions. - Innovative surveillance features
Includes motion detection, people counting, and video analytics, enhancing security measures and providing valuable data for business intelligence. - Enhanced low-light performance
With a minimum illumination requirement of only 0.2 lux and day and night functionality, the camera ensures clear video capture in varying lighting conditions.
Special Features
- Supports a wide range of memory cards including microSD, microSDHC, and microSDXC
- Compliant with multiple standards including IEEE 802.1x, IEEE 802.3af, and IP42 for reliable operation
- Offers a fixed focal lens with a minimum focus distance of 30 cm for precise image capture
- Utilizes Power over Ethernet (PoE) Class 3 for simplified installation and power management
- Features a durable plastic housing suitable for indoor use
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 9.9 cm |
| Depth | 9.9 cm |
| Height | 4.9 cm |
| Weight | 320 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - indoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2048 x 2048 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.2 lux - colour - F2.5 - shutter 1/30 sec |
| Video Capture | 2048 x 2048 @ 30 fps |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), tamper-detection, fisheye lens, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, plastic housing, people counting, digest authentication, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, ONVIF (Profile T) support |
| Image Sensor | Image Sensor |
| Type | 6 MP CMOS 1/1.8" |
| Effective Pixels | 2048 x 2048 |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 1.14 mm |
| Lens Iris | F/2.5 |
| Min Focus Distance | 30 cm |
| Horizontal Field of View (degree) | 187 |
| Vertical Field of View (degree) | 187 |
| Diagonal Field of View (degree) | 187 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SNMP 2, PIM-SM |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP42, IEEE 802.3af, IEEE 802.1x |
| Colour | White |
| Power | Power |
| Power Requirements | PoE Class 3 |
| Power Device | 6.4 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7, Windows 8.1, Windows 10, Apple macOS 10.12 - 10.14 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% |
Features - Hanwha Techwin - QNF-8010
More Details
Product Code
07:21246194
EAN Code
8801089153777
Manufacturer
Hanwha Techwin
