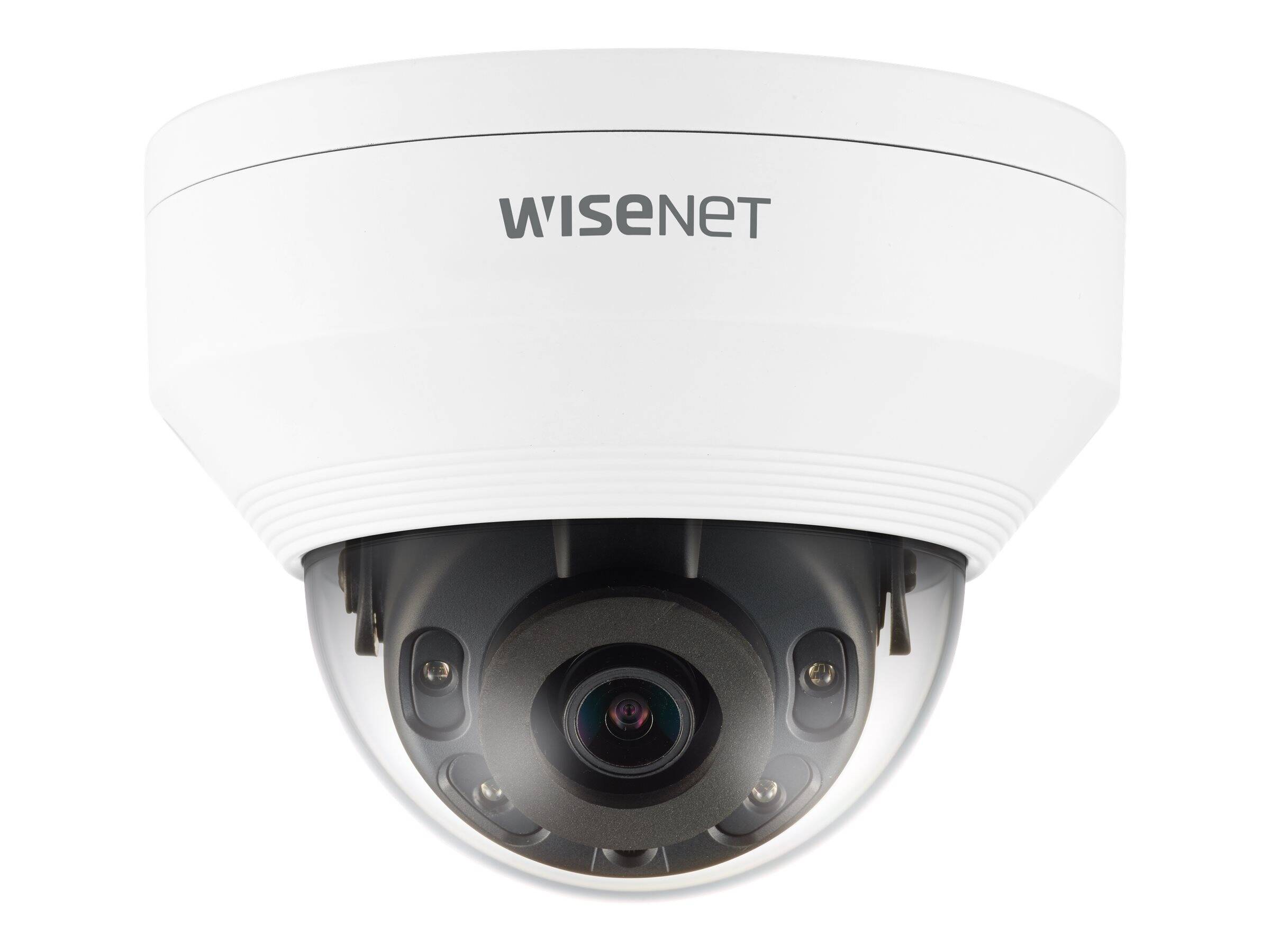

Hanwha Vision WiseNet Q QNV-6012R / Network surveillance camera / dome / colour (Day&Night) / 2 MP / 1920 x 1080 / 1080p / fixed focal / audio / composite / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE | QNV-6012R
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Robust environmental adaptability
Designed to withstand a wide range of temperatures from -30°C to 55°C and humidity levels of 0 - 90%, ensuring reliable operation in diverse environmental conditions. - High-quality imaging
Features a 1/2.8" CMOS sensor with effective pixels of 1920 x 1080, delivering clear and detailed Full HD video footage, complemented by a wide angular field of view (113.7° horizontal and 61.5° vertical) for comprehensive coverage. - Advanced surveillance capabilities
Equipped with infrared LEDs for up to 20 m of visibility in complete darkness, alongside motion detection, backlight compensation, and wide dynamic range, this camera ensures optimal performance in varied lighting conditions. - Versatile networking and storage
Supports a broad array of network protocols and offers flexible storage solutions with support for microSD, microSDHC, and microSDXC cards, facilitating easy integration and data management. - Durable and secure design
Meets IK10 standards for protection against impact and IEEE 802.1x for network security, making it a reliable choice for safeguarding your premises.
Special Features
- Full HD 1080p resolution with a 1/2.8" CMOS sensor
- Operational in temperatures from -30°C to 55°C
- Infrared night vision up to 20 m
- Supports microSD, microSDHC, and microSDXC cards
- Impact-resistant with IK10 certification
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.726, ADPCM, G.711, G.711a |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 12 cm |
| Depth | 12 cm |
| Height | 9.17 cm |
| Weight | 510 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Video Format | NTSC, PAL |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.1 lux - colour - F2.0 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 20 m |
| Video Capture | 1920 x 1080 @ 30 fps |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, ONVIF (Profile T) support, direction detection |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Effective Pixels | 1920 x 1080 |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 113.7 |
| Vertical Field of View (degree) | 61.5 |
| Diagonal Field of View (degree) | 134.5 |
| Panning | Panning |
| Range (degree) | 350 |
| Tilting | Tilting |
| Range (degree) | 0 to 67 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video Audio line-in/microphone LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IEC 60529 IP66, IK10, IEEE 802.1x, IEEE 802.1af |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 7.4 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7 / 8.1 / 10, Apple macOS 10.12 - 10.14 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% |
Χαρακτηριστικά
Product Code
07:21246191
EAN Code
8801089164445
Manufacturer
Hanwha Techwin
