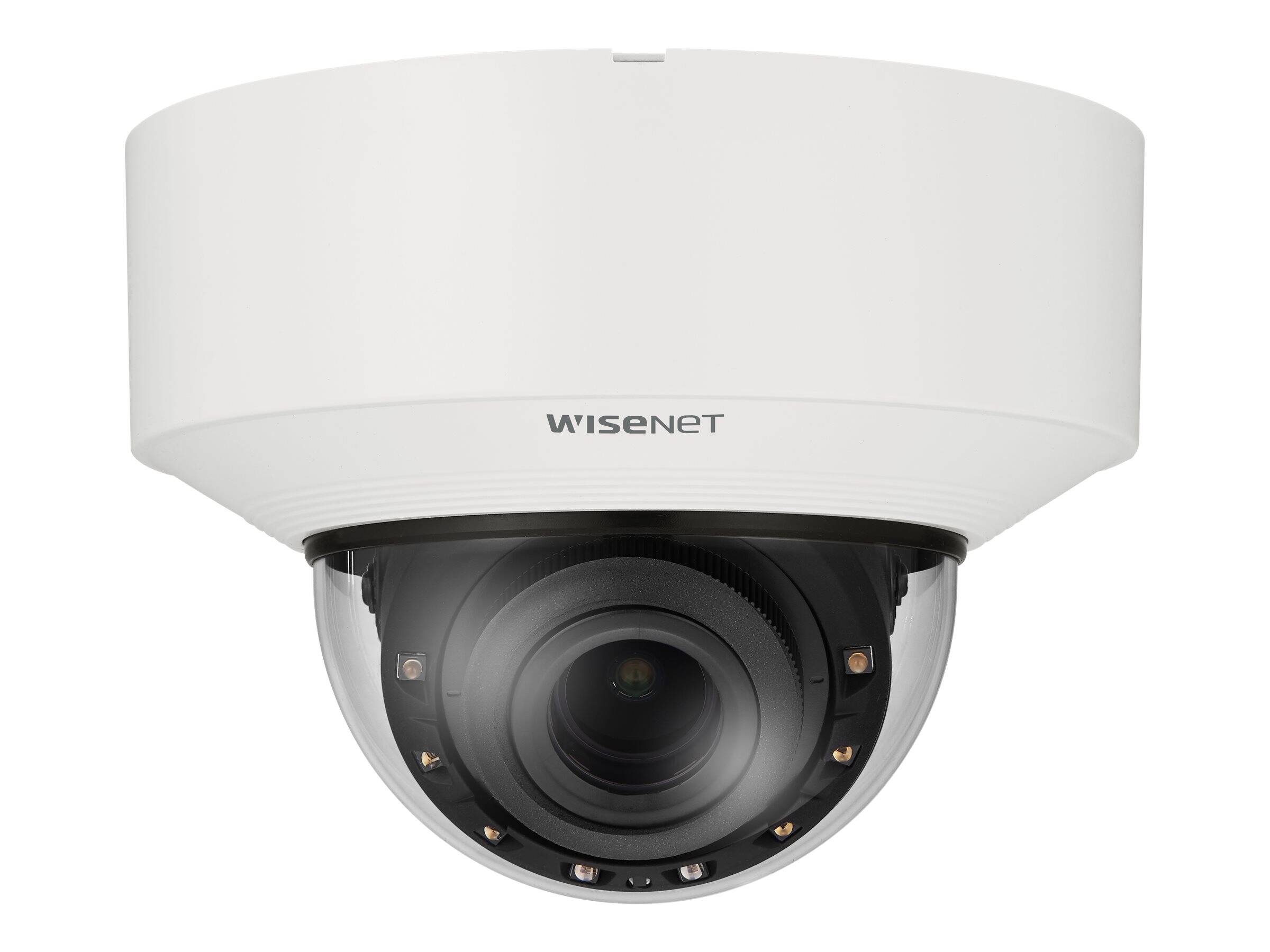

Hanwha Vision WiseNet X XND-C7083RV / Network surveillance camera / dome / indoor / vandal-proof / colour (Day&Night) / 4 MP / 2592 x 1520 / auto iris / motorized / audio / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE Class 3 | XND-C7083RV
Please sign in so that we can notify you about a reply
Product Features
- Advanced optical clarity
With an angular field of view ranging from 35.3 to 131.3 degrees and a lens aperture of f/1.4-3.0, this camera captures wide, clear images, ensuring no detail goes unnoticed. The motorized zoom and manual focus adjustment offer precise control over image capture, making it ideal for various surveillance needs. - Robust environmental adaptability
Designed to operate in a wide range of temperatures from -10°C to 50°C and humidity levels from 0 to 95% (non-condensing), this camera is built to withstand challenging environmental conditions, ensuring reliable performance indoors or outdoors. - Enhanced night vision capability
Equipped with infrared LEDs and a sensitivity range that allows for clear images in color mode at 0.038 lux and in B&W mode at 0.0038 lux, transitioning to 0 lux with infrared, this camera provides exceptional low-light performance. The day and night functionality ensures continuous surveillance. - Comprehensive connectivity and storage
Featuring a variety of interfaces including LAN/power via RJ-45, USB, and audio lines in and out, alongside support for microSD, microSDHC, and microSDXC cards, this camera offers flexible connectivity and storage options to meet diverse surveillance requirements. - Intelligent surveillance features
This camera comes packed with advanced features such as two-way audio capability, motion detection, and a suite of intelligent video analysis tools like defog, digital image stabilization, and people counting, enhancing security and operational efficiency.
Special Features
- 131.3° maximum angular field of view for comprehensive coverage
- Operational in temperatures from -10°C to 50°C for versatile use
- Infrared LEDs provide clear night vision up to 40 m
- Supports microSD, microSDHC, and microSDXC cards for ample storage
- Features like motion detection and intelligent video analysis for enhanced security
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 11.8 cm |
| Weight | 1.35 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - indoor - vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.038 lux - colour - F1.4 - 30 IRE - shutter 1/30 sec 0.0038 lux - B&W - F1.4 - 30 IRE - shutter 1/30 sec 0 lux - B&W - infrared LEDs on 0.076 lux - colour - F1.4 - 30 IRE - shutter 1/60 sec 0.0076 lux - B&W - F1.4 - 30 IRE - shutter 1/60 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 40 m |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 2560 x 1440, 800 x 448, 2592 x 1520 |
| Frame Rate (max) | 60 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Object Detection, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), tamper-detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, people counting, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, Hallway View, built-in gyroscope, fog detection, Unicast Streaming, ONVIF (Profile T) support, sound classification, Gain Control, queue management, WiseStream III support, WiseNR II, WiseIR |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 3.6 x |
| Focal Length | 2.8 mm - 10 mm |
| Lens Iris | F/1.4-3.0 auto iris (DC) |
| Focus Adjustment | Manual |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 30.4 - 109.7 |
| Vertical Field of View (degree) | 17.8 - 60.8 |
| Diagonal Field of View (degree) | 35.3 - 131.3 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | -45 to +75 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 USB - Micro-USB Type B Audio line in Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP52, IEEE 802.3af, IEEE 802.1x, UL 2900-1, IK08 |
| Colour | White, RAL 9003 |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 12.95 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - Hanwha Techwin - XND-C7083RV
More Details
Product Code
07:21246680
EAN Code
8801089207968
Manufacturer
Hanwha Techwin
