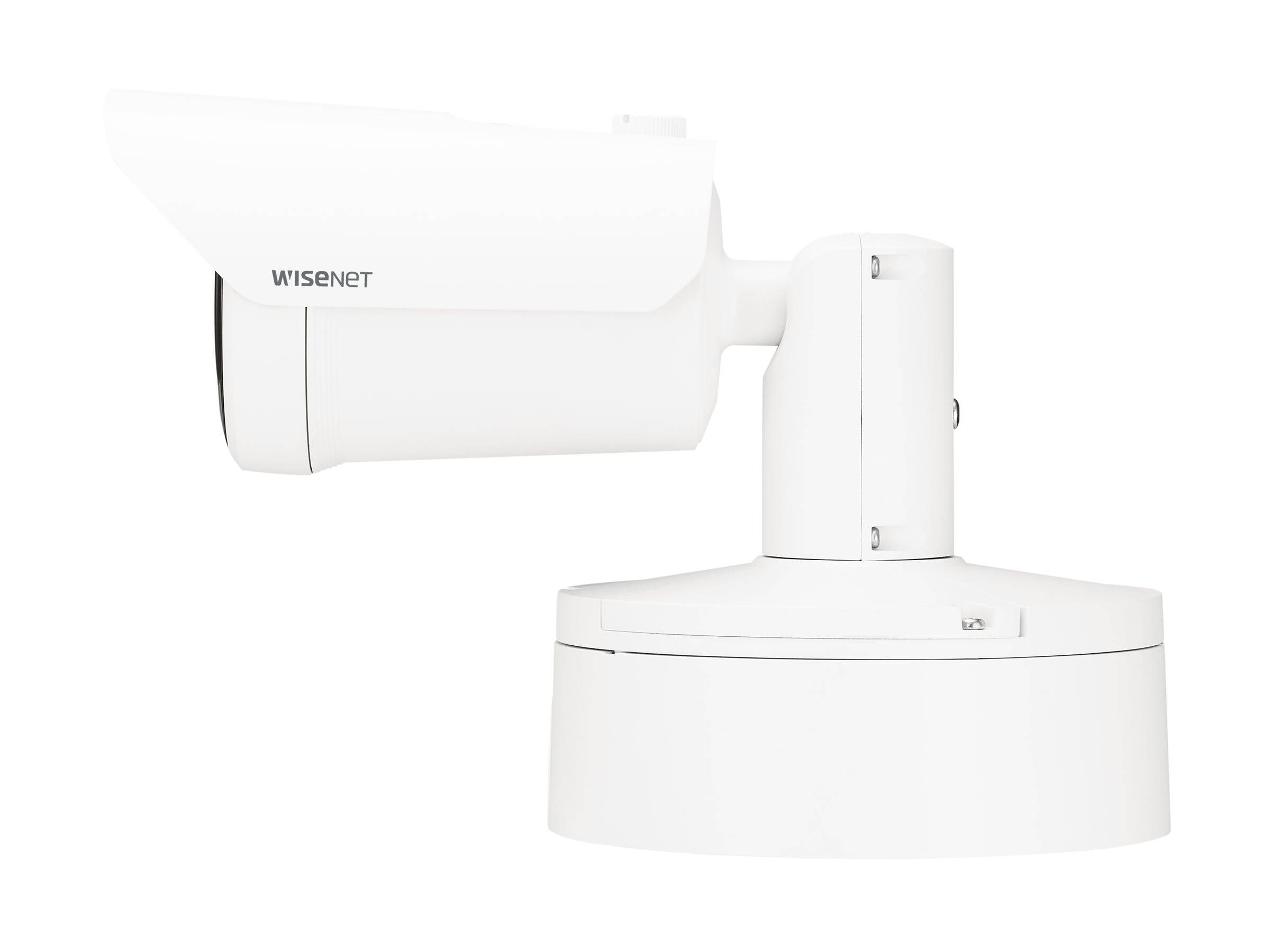

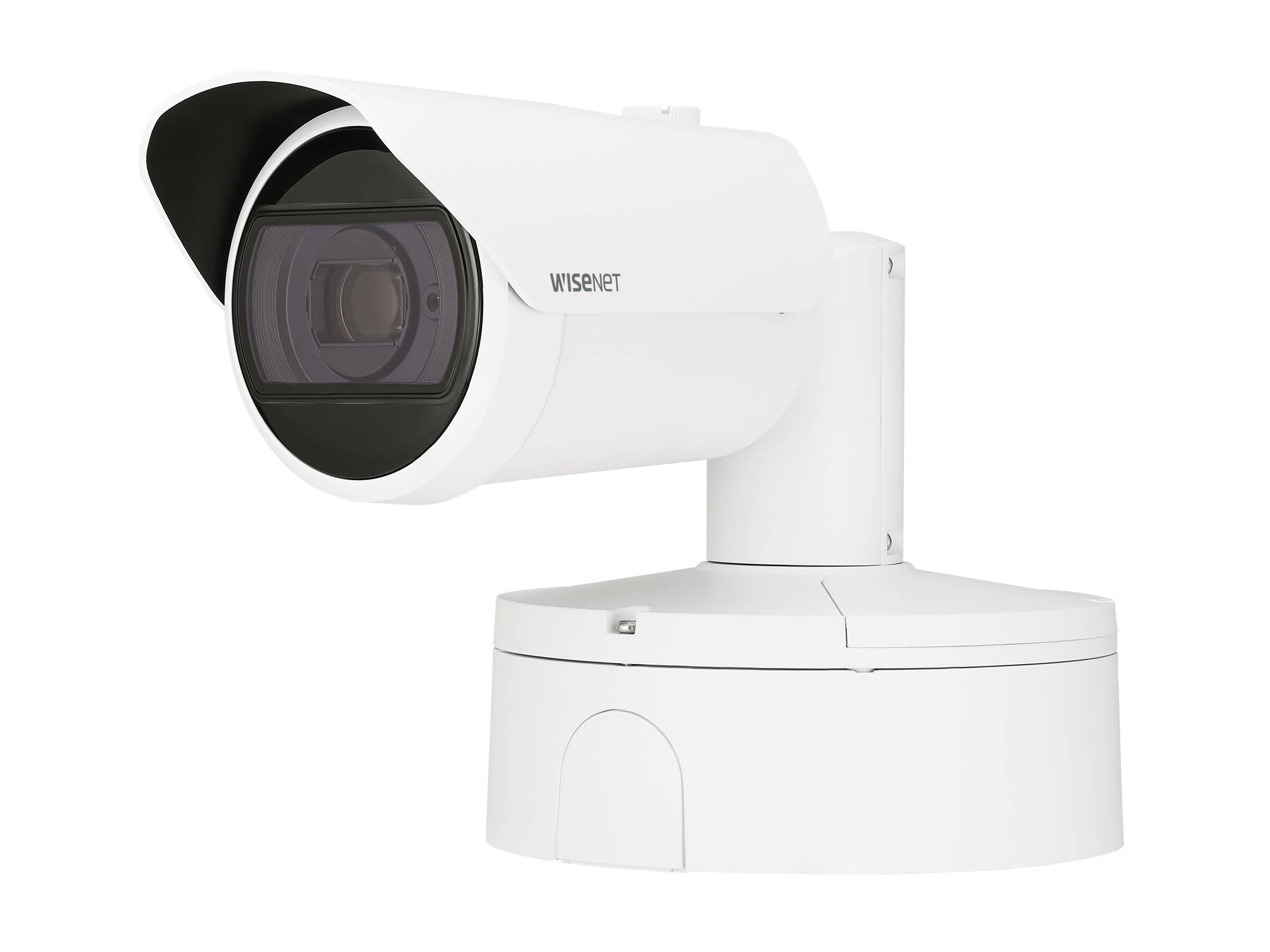

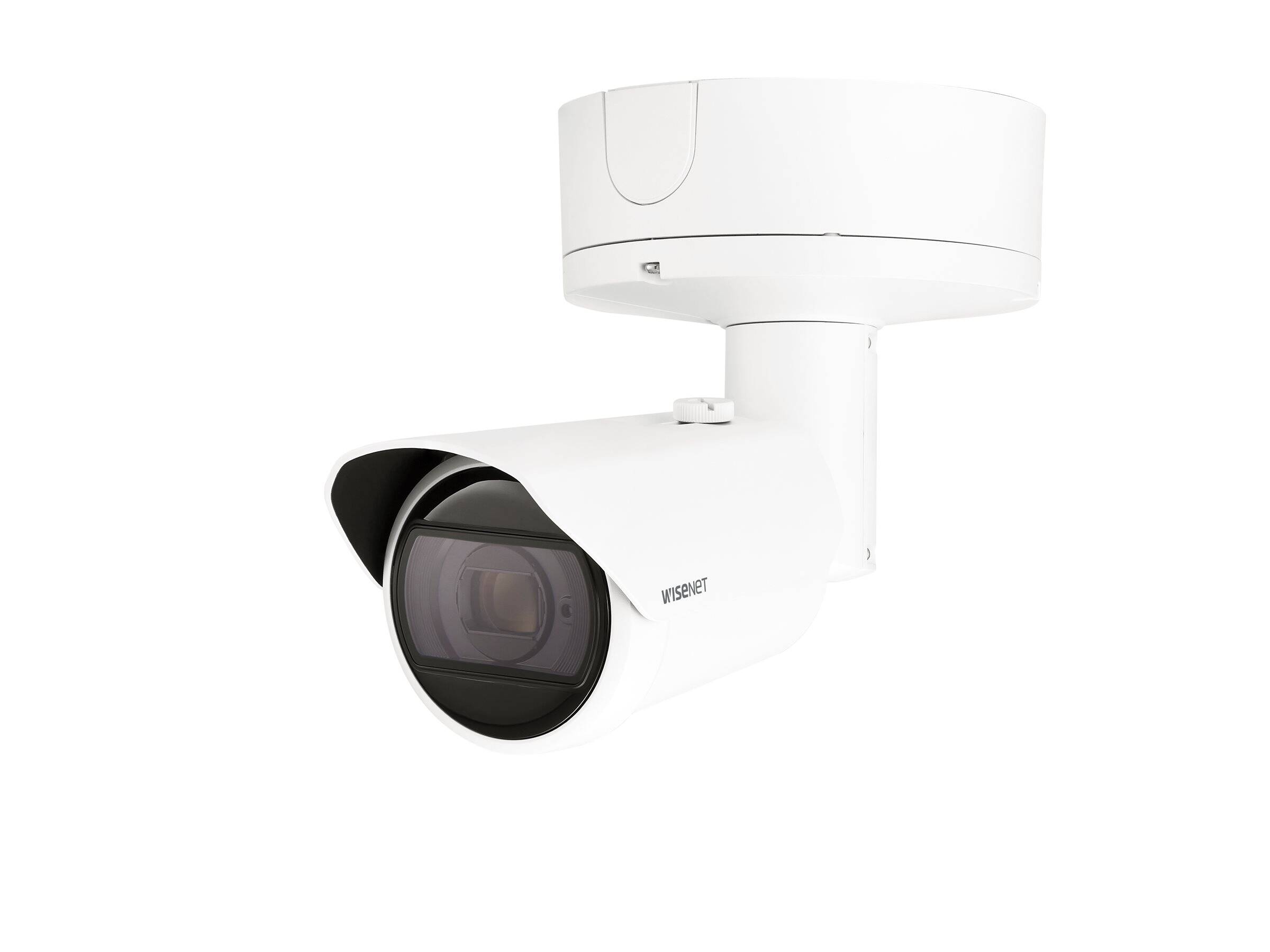

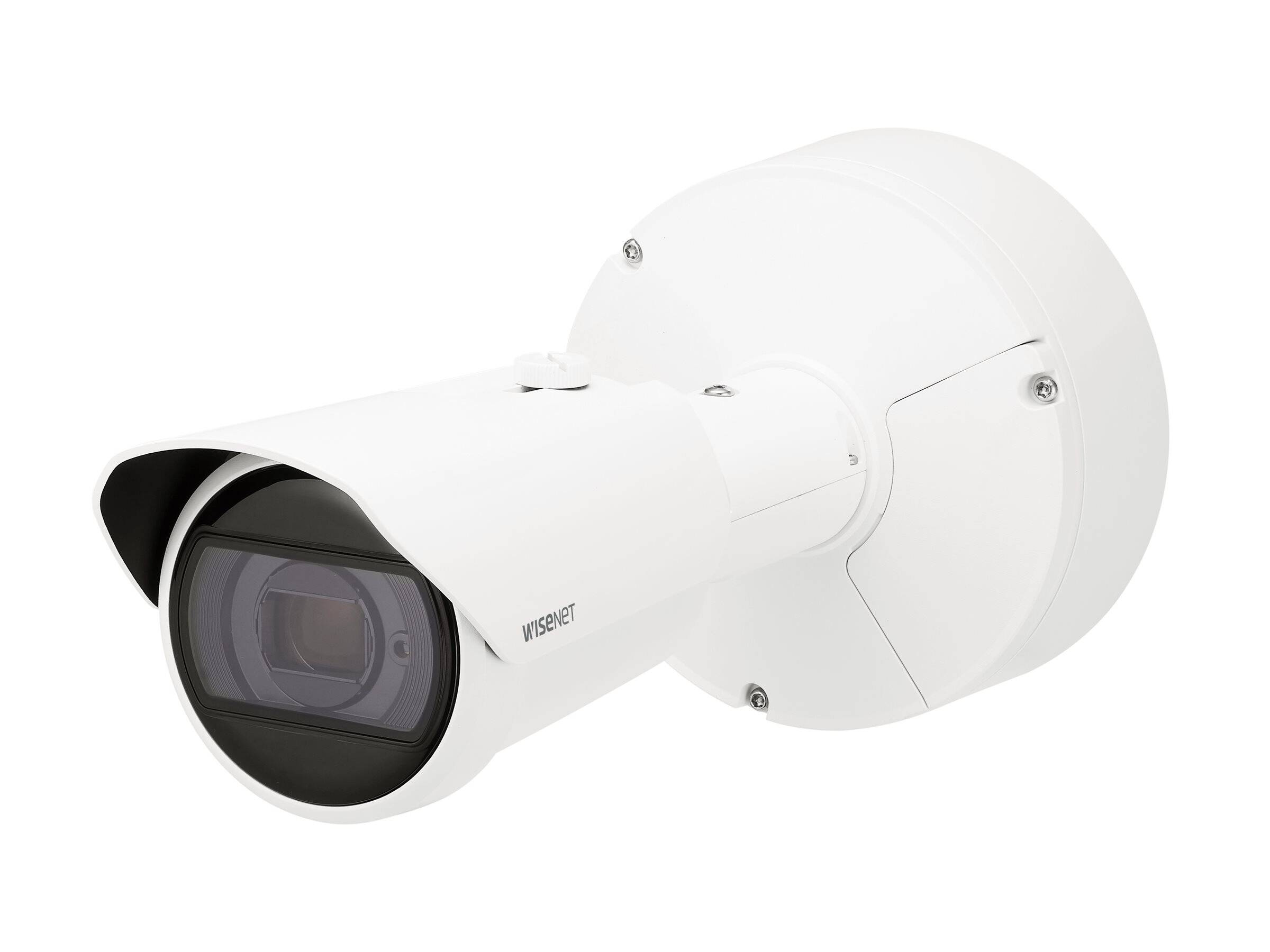

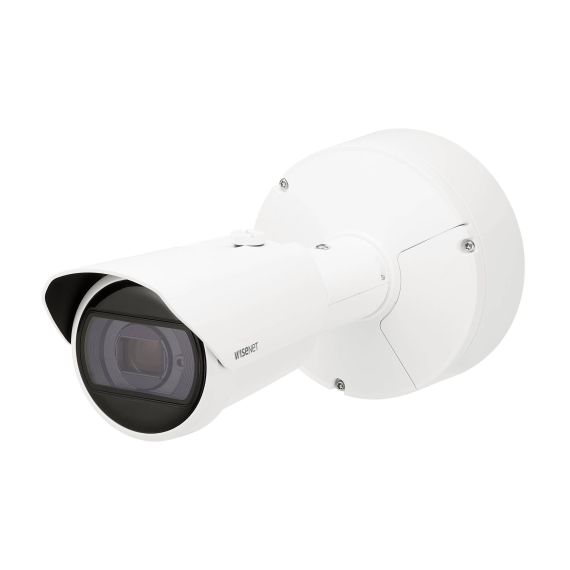

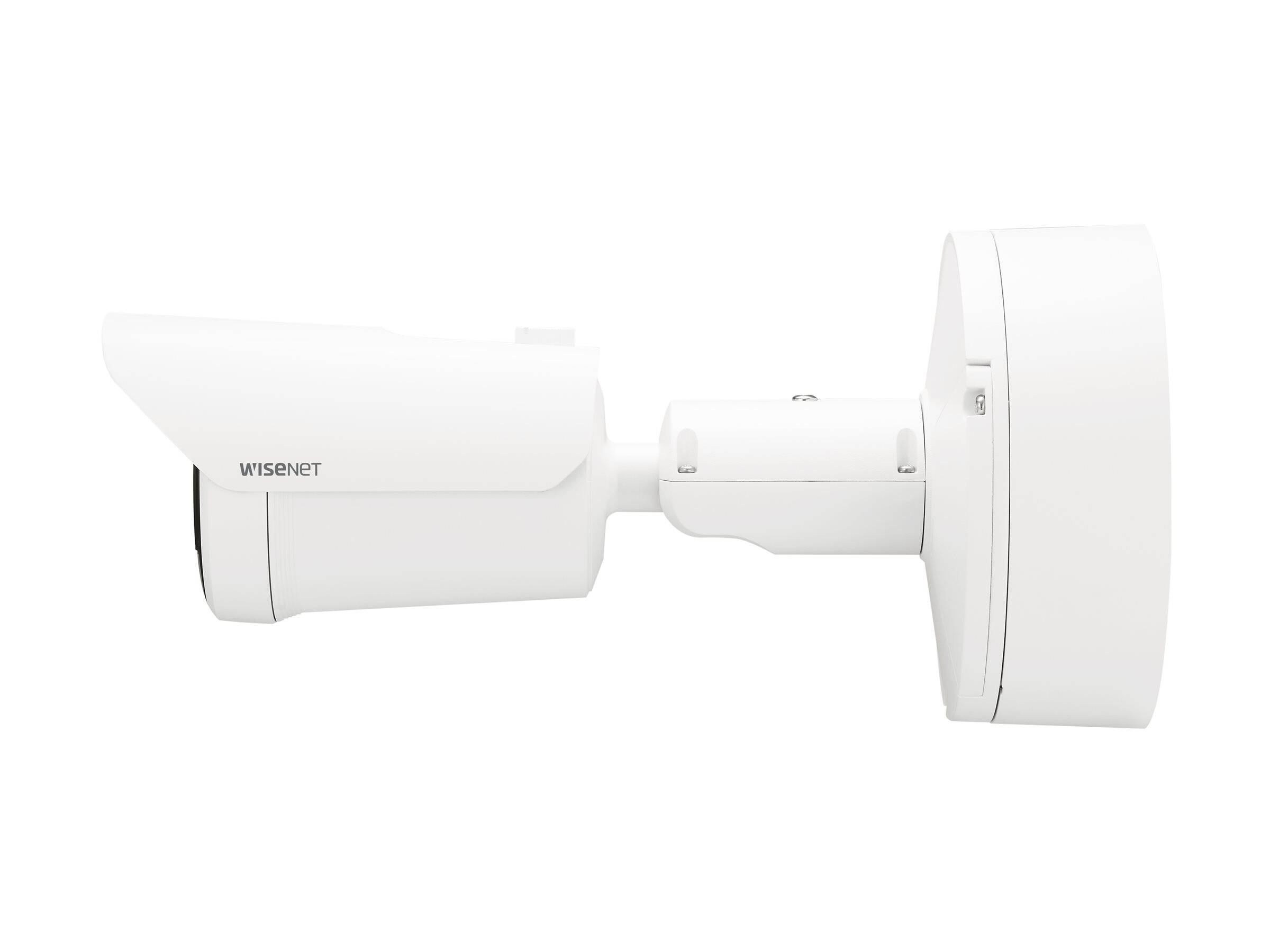

Hanwha Vision WiseNet X XNO-6123R / Network surveillance camera / bullet / outdoor / dust resistant / water resistant / shock resistant / corrosion resistant / colour (Day&Night) / 2 MP / 1920 x 1080 / auto iris / motorized / audio / composit | XNO-6123R
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to withstand extreme temperatures ranging from -40°C to 60°C and humidity up to 95% (non-condensing), making it ideal for outdoor use in any climate. - Advanced optical performance
Features a motorized zoom lens with a focal length from 5.2 mm to 62.4 mm, auto iris control, and an angular field of view between 5.3° and 54.58°, ensuring clear and focused images across varying distances. - Enhanced night vision
Equipped with infrared LEDs, providing up to 90 m of visibility in complete darkness, ensuring reliable surveillance around the clock. - High-definition video quality
Captures video at a frame rate of 120 fps with a resolution of 1920 x 1080, supported by technologies like Extreme WDR, Defog, and Digital Image Stabilization for crisp, clear images under any conditions. - Intelligent surveillance features
Incorporates advanced analytics such as face detection, intrusion detection, and direction detection, enhancing security measures and situational awareness.
Special Features
- Outdoor durability with IP66, IP67, and IK10 ratings for water, dust, and impact resistance
- 90 m infrared night vision for clear images in total darkness
- 120 fps high frame rate at 1080p for smooth video playback
- Intelligent video analytics for automated threat detection and alerts
- Supports a wide range of network protocols ensuring compatibility and integration ease
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, G.711.8, AAC-LC, G.711u |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 9.34 cm |
| Depth | 9.34 cm |
| Height | 29.84 cm |
| Weight | 2.3 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - dust resistant / water resistant / shock resistant / corrosion resistant |
| Digital Video Format | H.265, H.264M, H.264H, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.03 lux - colour - F1.6 - 30 IRE - shutter 1/30 sec 0.003 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec 0 lux - IR - infrared LEDs on 0.06 lux - colour - F1.6 - 30 IRE - shutter 1/60 sec 0.06 lux - B&W - F1.6 - 30 IRE - shutter 1/60 sec 0.12 lux - colour - F1.6 - 30 IRE - shutter 1/120 sec 0.12 lux - B&W - F1.6 - 30 IRE - shutter 1/120 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 90 m |
| Video Capture | 1920 x 1080 @ 120 fps |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), WiseIR, Extreme WDR, WiseNR II, WiseStream III support, Digital Image Stabilization (DIS), built-in gyroscope, Object Detection, Person Detection, face detection, Vehicle Detection, Intelligent Video Analysis (IVA), Virtual Line detection, entrance / exit detection, loitering detection, direction detection, intrusion detection, Defocus Detection, motion detection, Camera Tampering Detection, fog detection, Audio Detection, sound classification, shock detection, appearing / disappearing detection, Highlight Compensation (HLC), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Privacy Mask Function, Lens Distortion Compensation (LDC), WiseStream II support, Unicast Streaming, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Gain Control, Hallway View, 300 preset positions, white balance, Smart Codec, Defog, video analytics |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 5.2 mm - 62.4 mm |
| Lens Iris | F/1.6-3.0 auto iris (DC) |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 1.5 m |
| Horizontal Field of View (degree) | 5.3 - 54.58 |
| Vertical Field of View (degree) | 3 - 32.19 |
| Interfaces | Interfaces |
| Video | Composite video, USB |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video Audio line-in/microphone Audio line out - 3.5 mm mono jack USB - Micro-USB Type B LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IP66, IP67, NEMA Type 4X, IK10, IEEE 802.3at, IEEE 802.1x |
| Colour | White, RAL 9003 |
| Power | Power |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Power Device | PoE splitter DC 12 V / PoE+ V |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | Up to 95% (non-condensing) |
Features - Hanwha Techwin - XNO-6123R
More Details
Product Code
07:21246707
EAN Code
8801089210821
Manufacturer
Hanwha Techwin
