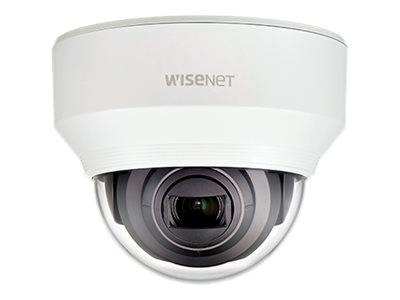

Hanwha Vision WiseNet X XND-6081RV / Network surveillance camera / dome / colour (Day&Night) / 2 MP / 1920 x 1080 / auto iris / motorized / audio / composite / LAN 10/100 / MJPEG, H.264, H.265 / DC 12 V / PoE Class 3 | XND-6081RV
Please sign in so that we can notify you about a reply
Product Features
- Advanced optical clarity
Equipped with a motorized zoom and auto iris control, the Hanwha Vision WiseNet X XND-6081RV offers excellent optical clarity. Its lens system provides a wide angular field of view ranging from 32 to 142.1 degrees, ensuring comprehensive coverage of the monitored area. - Robust environmental adaptability
Designed to operate in a wide range of temperatures from -25°C to 60°C and humidity levels from 0 to 90%, this network surveillance camera is built to withstand challenging environmental conditions. - Enhanced night vision
With infrared LEDs capable of illuminating up to 50 m, the camera ensures clear, detailed images even in complete darkness. This feature, combined with a minimum illumination of 0 lux in B&W mode, makes it ideal for round-the-clock surveillance. - High-definition video quality
The Hanwha Vision WiseNet X XND-6081RV captures video at a frame rate of 60 fps with a resolution of 1920 x 1080, delivering crisp, clear images. Supported by H.265 and H.264 compression, it offers efficient bandwidth and storage use. - Intelligent surveillance features
This camera is equipped with features such as directional motion detection, people counting, and face detection. Combined with digital image stabilization and defog capabilities, it provides reliable monitoring and analysis in diverse scenarios.
Special Features
- 142.1° maximum angular field of view for expansive area coverage
- Infrared illumination up to 50 m for clear night vision
- Supports multiple compression formats including H.265 and H.264 for efficient storage
- Operational in extreme temperatures ranging from -25°C to 60°C
- Equipped with advanced analytics like people counting and face detection
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 12.5 cm |
| Weight | 1.45 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Video Format | NTSC, PAL |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.015 lux - colour - F1.4 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 50 m |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | White balance, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), digital PTZ function, Camera Tampering Detection, auto tracking, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, appearing / disappearing detection, people counting, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, fog detection, motion detection, Unicast Streaming, Heatmap, Handover |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2.8" |
| Effective Pixels | 1945 x 1097 |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4-3.6 auto iris (DC) |
| Focus Adjustment | Manual |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Diagonal Field of View (degree) | 32 - 142.1 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | -45 to +85 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, PIM-SM, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video USB - Micro-USB Type B Audio line-in/microphone Audio line out LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IK10, IP52, IEEE 802.1x |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 12.95 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 90% |
Features - Hanwha Techwin - XND-6081RV
More Details
Product Code
07:21246640
EAN Code
8801089154811
Manufacturer
Hanwha Techwin
