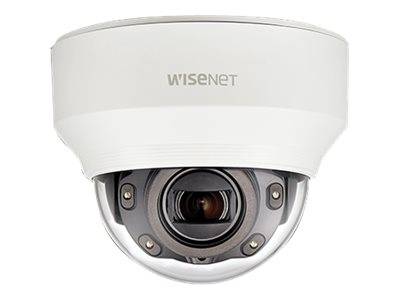

Hanwha Vision WiseNet X XND-6080R / Network surveillance camera / dome / vandal-proof / colour (Day&Night) / 2.2 MP / 1920 x 1080 / auto iris / motorized / audio / composite / LAN 10/100 / MPEG-4, MJPEG, H.264, AVC, H.265 / DC 12 V / PoE | XND-6080R
Please sign in so that we can notify you about a reply
Product Features
- Advanced optical performance
With an angular field of view ranging from 27.9 to 119.5 degrees horizontally, and 15.7 to 62.8 degrees vertically, the Hanwha Vision WiseNet X XND-6080R offers extensive coverage. The motorized zoom and focus adjustments, along with auto iris control, ensure crisp, clear images under various conditions. - Robust environmental adaptability
Designed to operate in a wide range of temperatures from -10°C to 55°C and humidity levels from 0 to 90%, this camera is built to withstand challenging environmental conditions. Its compliance with IEC 62262 IK08 standards further assures its durability and vandal-proof protection. - Superior connectivity and storage
Featuring a comprehensive suite of network protocols and support for SD, SDHC, and SDXC memory cards, the XND-6080R ensures seamless integration and flexible storage solutions. The inclusion of Ethernet 10Base-T/100Base-TX interface facilitates easy connectivity. - Enhanced night vision capabilities
Equipped with infrared LEDs capable of illuminating up to 30 m, the camera provides clear, black and white images in complete darkness. This feature, combined with a minimum illumination of 0 lux with infrared LEDs on, makes it ideal for round-the-clock surveillance. - Advanced video technology
The camera supports multiple digital video formats including AVC, H.264, H.265, MJPEG, and MPEG-4, ensuring compatibility and efficient bandwidth use. Features like 2D and 3D noise filtering, digital image stabilization, and WiseStream II support enhance video quality and reliability.
Special Features
- Angular field of view from 27.9° to 119.5° for comprehensive coverage
- Operates in temperatures from -10°C to 55°C and humidity 0 to 90%
- Supports SD, SDHC, and SDXC memory cards for flexible storage options
- Infrared LEDs provide visibility up to 30 m in complete darkness
- Supports AVC, H.264, H.265, MJPEG, and MPEG-4 video formats for versatile use
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 14.08 cm |
| Depth | 14.08 cm |
| Height | 11.3 cm |
| Weight | 624 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.015 lux - colour - F1.4 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Hallway View |
| Image Sensor | Image Sensor |
| Type | 2.2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4-3.6 auto iris (DC, P-Iris) |
| Focus Adjustment | Automatic, manual, motorised |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Diagonal Field of View (degree) | 32 - 142.1 |
| Panning | Panning |
| Range (degree) | 0 to 354 |
| Tilting | Tilting |
| Range (degree) | 0 to 67 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video Audio line-in/microphone Audio line out USB - Micro-USB Type B |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IEC 62262 IK08, IEEE 802.3af |
| Colour | Ivory |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 10 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% |
Features - Hanwha Techwin - XND-6080R
More Details
Product Code
07:21246639
EAN Code
8801089092076
Manufacturer
Hanwha Techwin
