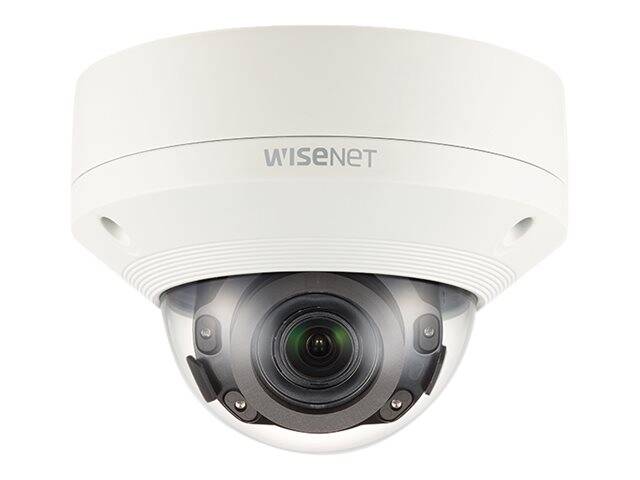

Hanwha Vision WiseNet X XNV-6080R / Network surveillance camera / dome / outdoor / dustproof / waterproof / vandal-proof / colour (Day&Night) / 2.2 MP / 1920 x 1080 / auto iris / motorized / audio / composite / LAN 10/100 / MPEG-4, MJPEG, H.2 | XNV-6080R
Please sign in so that we can notify you about a reply
Product Features
- Robust design
Built to withstand harsh environmental conditions, this camera is dustproof, waterproof, and vandal-proof, meeting IK10, IP66, IP67, and NEMA Type 4X standards. Its durability ensures reliable operation in any outdoor setting. - Advanced imaging
Featuring a 1/2.8" CMOS sensor with effective pixels of 1945x1097, the camera delivers high-quality images. The wide range of focal lengths from 2.8 mm to 12 mm, coupled with motorized zoom and focus adjustments, provides flexibility in capturing the desired field of view. - Low-light performance
With infrared LEDs capable of illuminating up to 50 m, the camera ensures clear, black and white images in complete darkness. The minimum illumination requirements of 0.015 lux in color mode and 0 lux with infrared make this camera exceptionally sensitive to low light. - Enhanced connectivity
Supporting a variety of network protocols and compatibility with both Mac and PC, this camera offers seamless integration into existing systems. Ethernet 10Base-T/100Base-TX interface ensures reliable network connection. - Intelligent features
Equipped with features like 2D and 3D noise reduction, backlight compensation, defog, digital image stabilization, and motion detection, the camera enhances video quality and analytical capabilities. Support for ONVIF profiles G and S facilitates interoperability with third-party systems.
Special Features
- Multiple streaming
- Sound classification
- Motion detection
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 11.85 cm |
| Weight | 995 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.015 lux - colour - F1.4 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 50 m |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support |
| Image Sensor | Image Sensor |
| Type | 2.2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4-3.6 auto iris (DC, P-Iris) |
| Focus Adjustment | Automatic, manual, motorised |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Panning | Panning |
| Range (degree) | 0 to 354 |
| Tilting | Tilting |
| Range (degree) | 0 to 67 |
| Interfaces | Interfaces |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | Composite video Audio line-in/microphone Audio line out USB - Micro-USB Type B |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66 |
| Colour | Ivory |
| Power | Power |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Power Device | 14 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 0 - 90% |
Features - Hanwha Techwin - XNV-6080R
More Details
Product Code
07:21246613
EAN Code
8801089092304
Manufacturer
Hanwha Techwin
