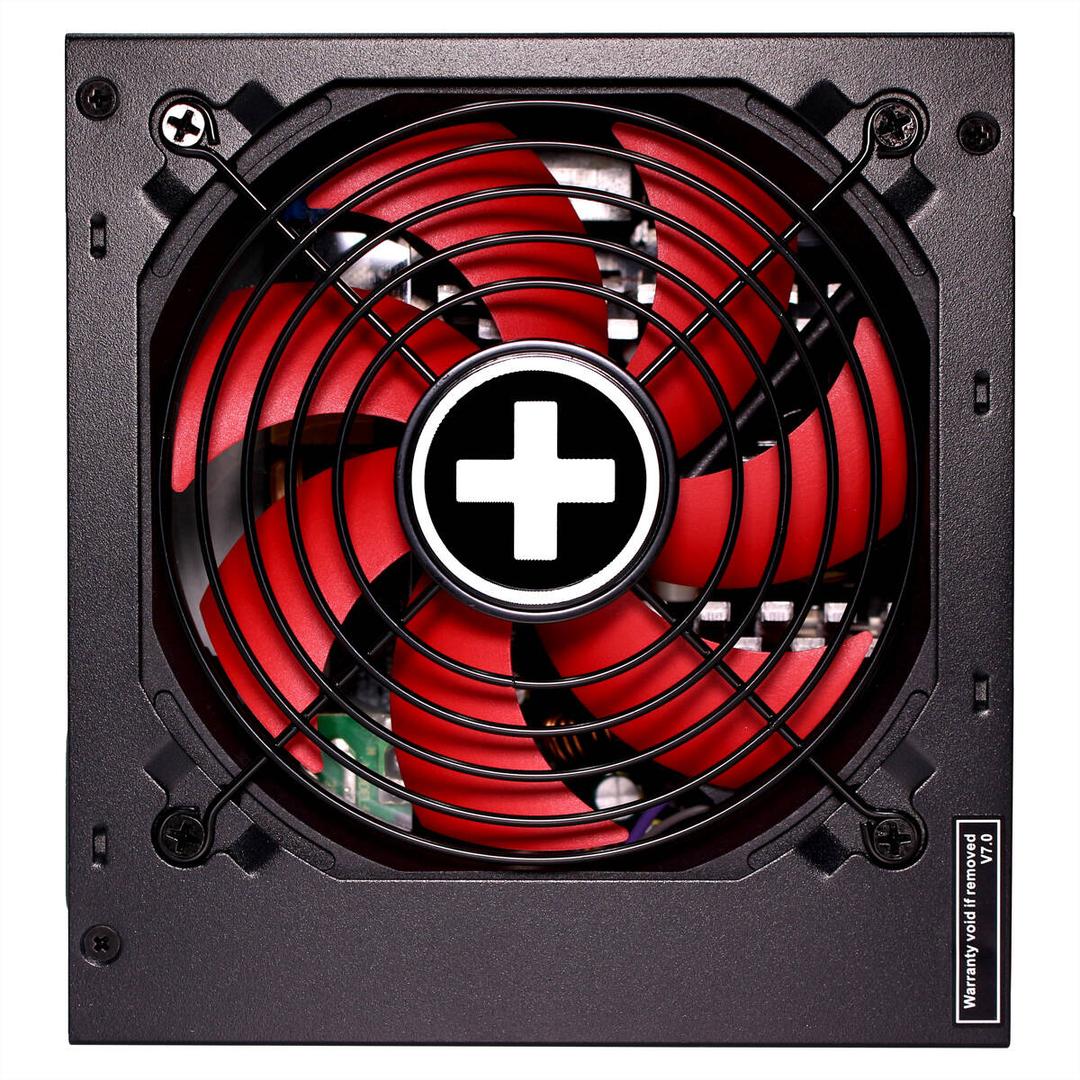

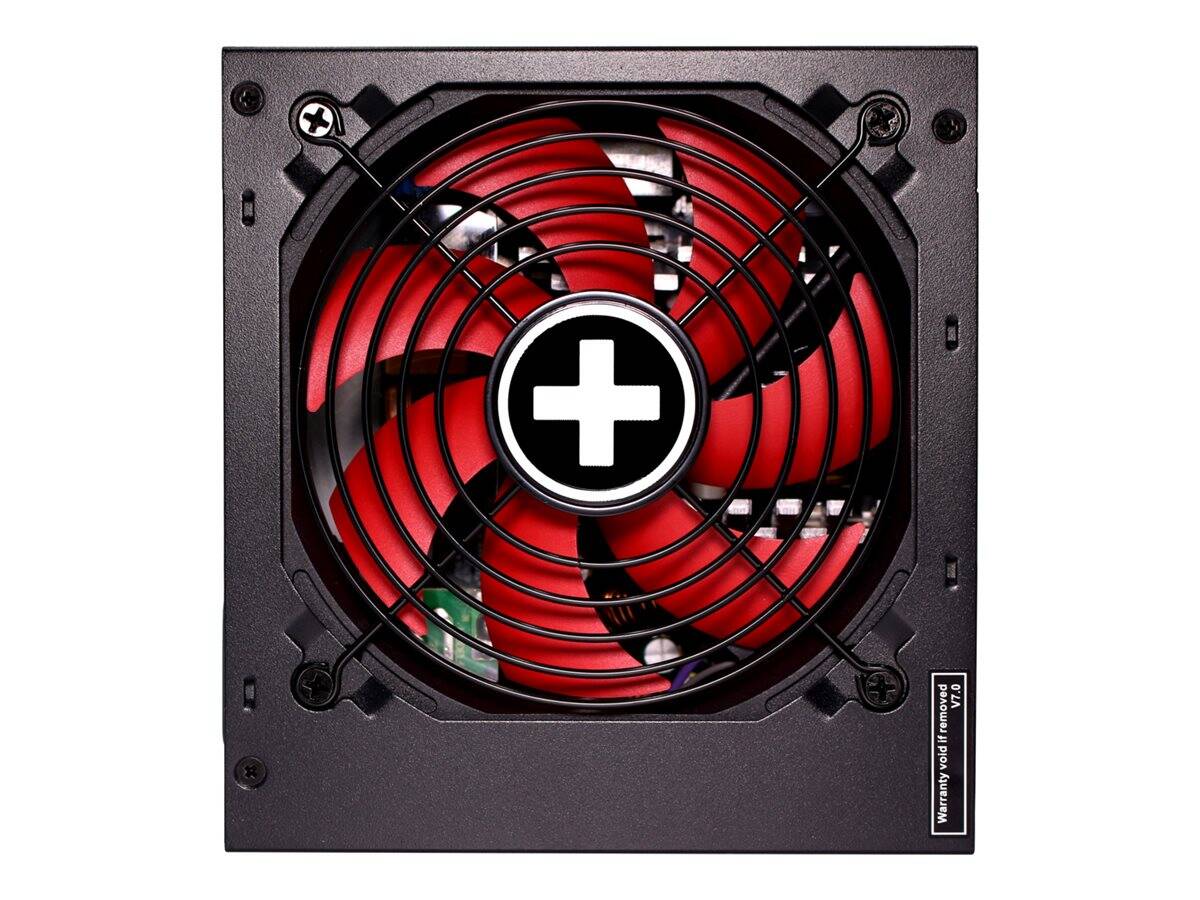

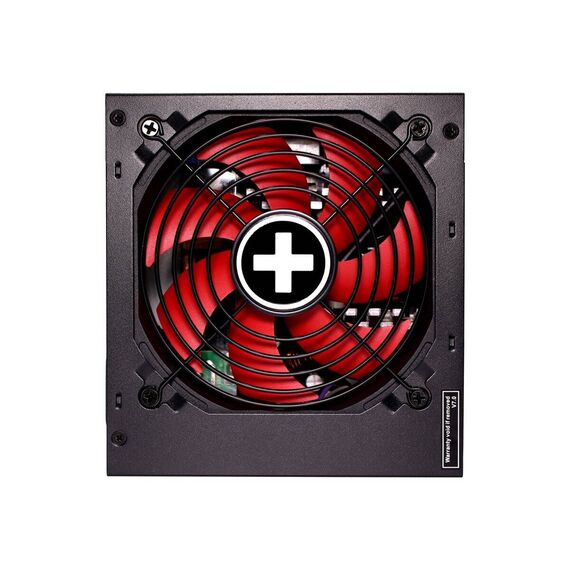

Xilence Gaming Series XP750R10 - Power supply (internal) - ATX12V 2.4/ EPS12V - 80 PLUS Bronze - AC 200-240 V - 750 Watt - active PFC | XN235
Please sign in so that we can notify you about a reply
Special Fetures
- Extremely silent cooling: large 120 mm fan
- Excellent air flow design for a better heat dissipation
- Full safety design: OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection)
- Low stand-by consumption
- High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)
- Active-PFC
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x Parallel ATA |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 85% at 20% Load (230 VAC), 88% at 50% Load (230 VAC), 85% at 100% Load (230 VAC) |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, hydrodynamic bearing cooling fan |
| Compliant Standards | PCT, CB, RoHS, WEEE, EAC, ErP 2014, TUV Rheinland |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 44 cm |
| Shipping Depth | 58 cm |
| Shipping Height | 26.5 cm |
Features - Xilence - XN235
More Details
Product Code
07:129732
EAN Code
4044953502361
Manufacturer
Xilence
