XPG GAMMIX S70 Blade / SSD / 1 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / 256-bit AES / integrated heatsink | AGAMMIXS70B-1T-CS
Product Features
- Speed ahead with PCIe 4.0
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6400 MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0. - Cool in the heat of battle

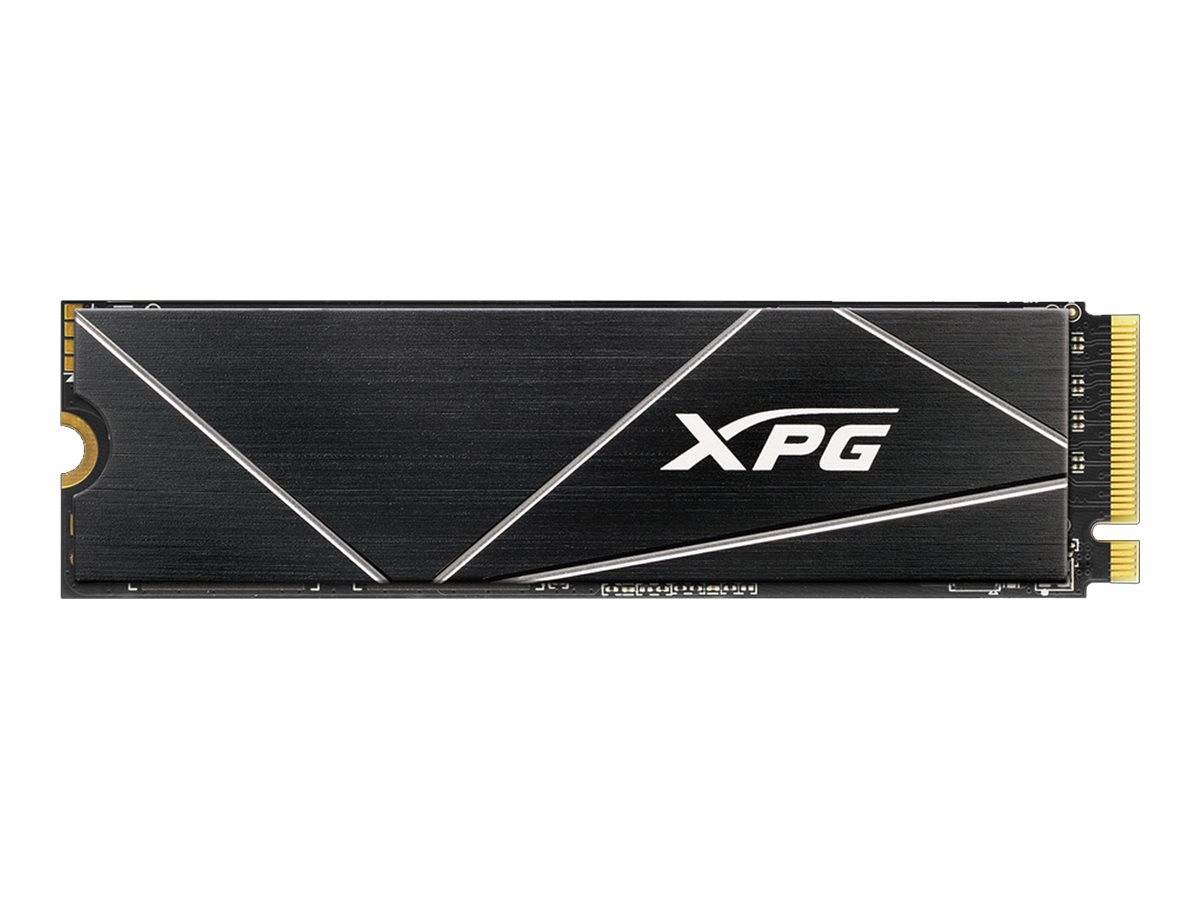

Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines. - Perfect for compact and thin devices
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints. - Boosting your performance
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming. - The ultimate game cache
Equipped with 3D NAND Flash memory, the S70 BLADE offers big capacities. What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity. - Security and integrity
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.
Special Features
- Speed ahead with PCIe 4.0
- Cool in the heat of battle
- Perfect for compact and thin devices
- Compliant with NVMe 1.4
- Boosting your performance
- The ultimate game cache
- Security and integrity
Product Specification
Device Type | Solid state drive - internal |
Capacity | 1 TB |
Encryption Algorithm | 256-bit AES |
Integrated Heatsink | Yes |
Form Factor | M.2 2280 |
Interface | PCIe 4.0 x4 (NVMe) |
Features | End-to-end data protection, 3D NAND Technology, Advanced LDPC ECC Technology, dynamic SLC caching, NVM Express (NVMe) 1.4 |
Width | 22 mm |
Depth | 80 mm |
Height | 3.3 mm |
Weight | 10 g |
Performance | Performance |
SSD Endurance | 740 TB |
Internal Data Rate | 7400 MBps (read) / 5500 MBps (write) |
4KB Random Read | 350000 IOPS |
4KB Random Write | 720000 IOPS |
Reliability | Reliability |
MTBF | 2,000,000 hours |
Expansion & Connectivity | Expansion & Connectivity |
Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
Compatible Bay | M.2 2280 |
Miscellaneous | Miscellaneous |
Compliant Standards | BSMI, FCC, KC, EAC, Morocco |
Package Details | Box |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 85 °C |
Shock Tolerance (operating) | 1500 g @ 0.5 ms |
