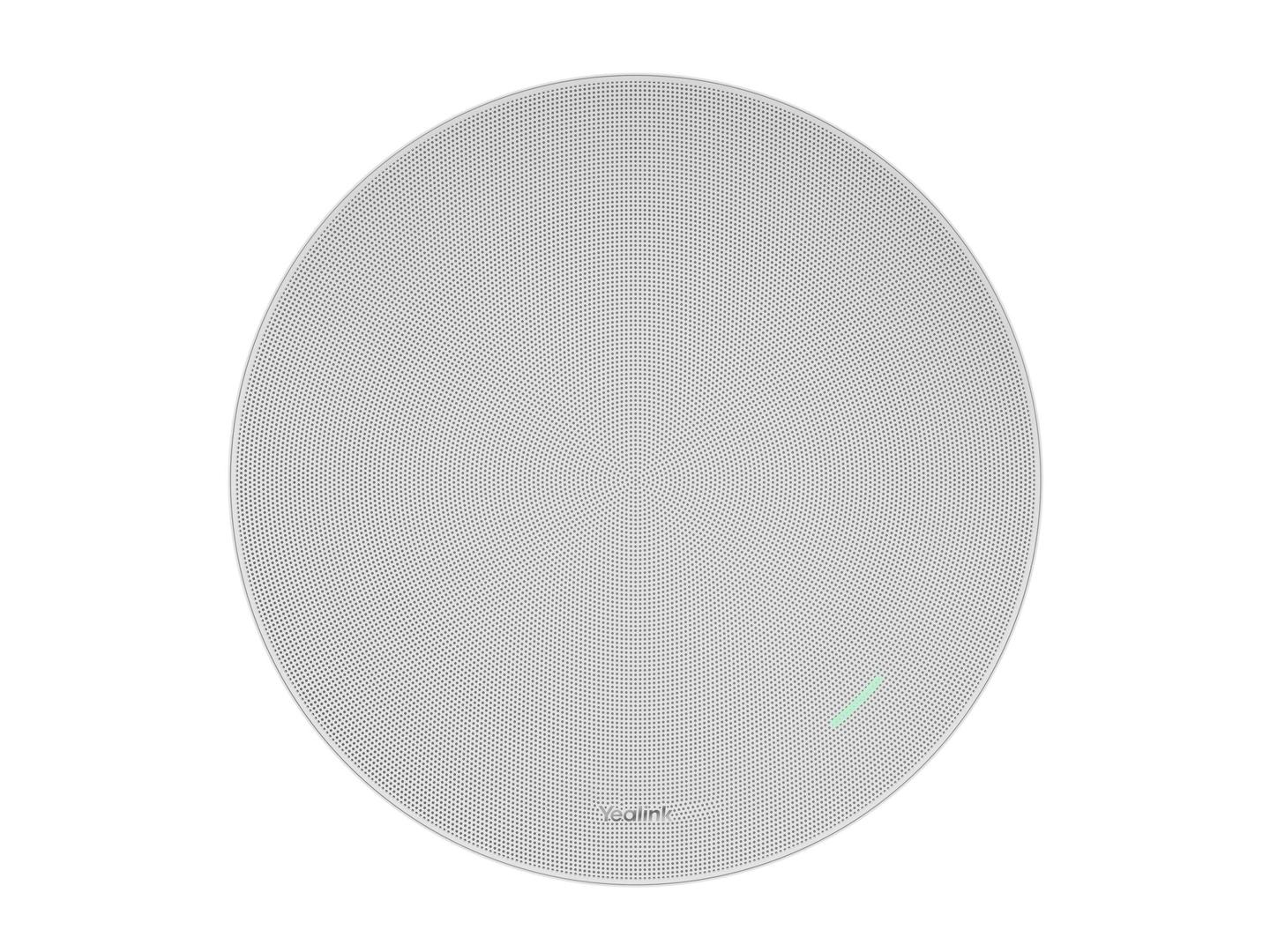

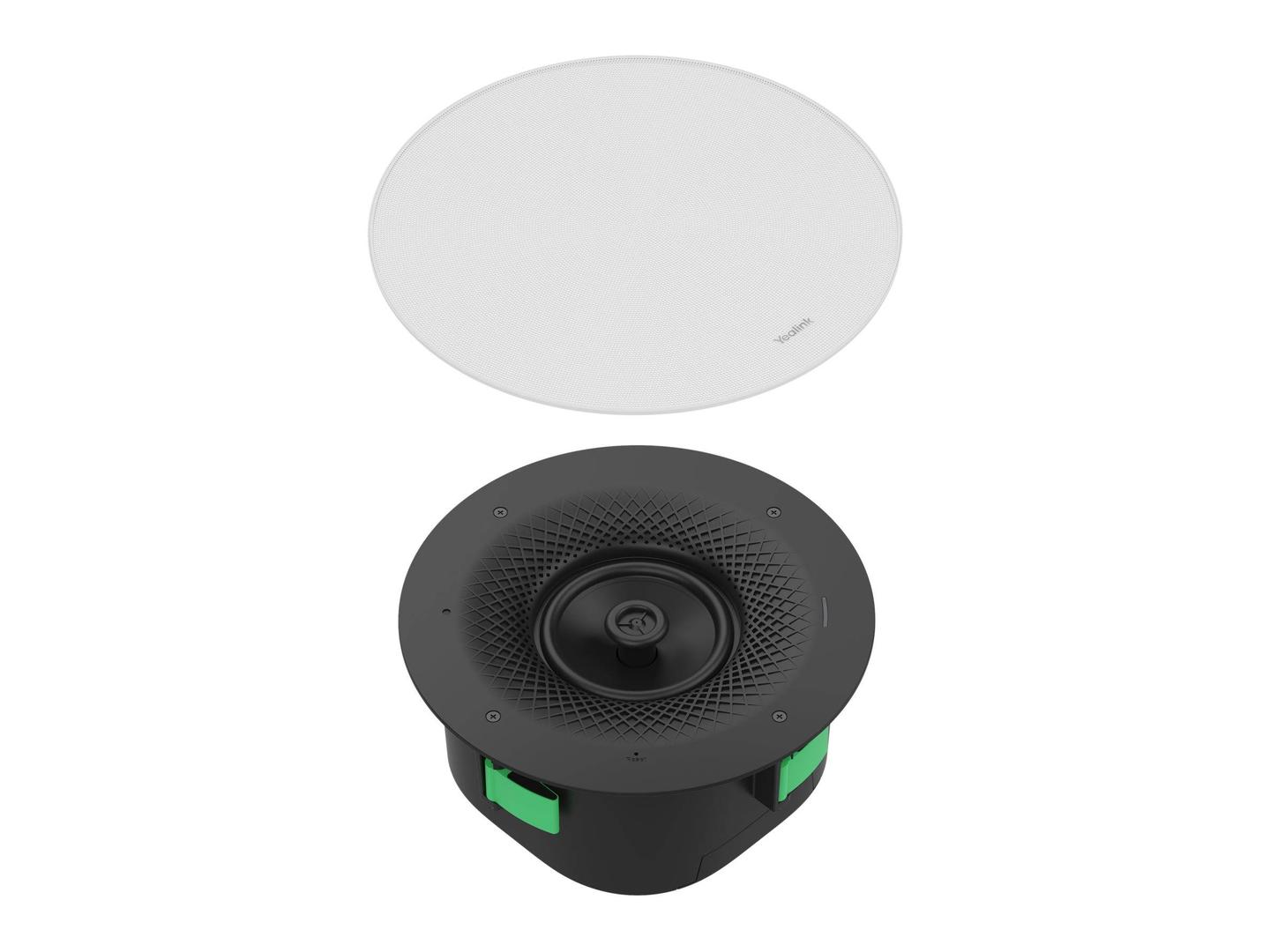

Yealink CS10 / IP speaker / for conference system / 20 Watt / 2-way / coaxial / white (grille colour / white) | 1303094
Please sign in so that we can notify you about a reply
Special Features
- Active network speaker
- 2-way coaxial low-profile design
- Speech emphasizing
Product Specification
| Product Type | IP speaker - for conference system |
| Enclosure Colour | White |
| Enclosure Material | Aluminium alloy, fibreglass-reinforced polyamide, ABS polycarbonate |
| Design Features | Paintable grille |
| Grille Colour | White |
| Speaker System | Speaker System |
| Speaker Type | Coaxial - 2-way - active |
| Continuous Power | 20 Watt |
| Frequency Response (-6dB) | 100 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 99 dB |
| Sensitivity | 88 dB (1W@1m) |
| Amplifier | Integrated |
| Coverage | 120° |
| Recommended Placing | Ceiling mountable |
| Detachable Grilles | Yes |
| Speaker System Details | Speaker System Details |
| Driver Details | Speaker: woofer driver - 5.7" Speaker: tweeter driver - 1.1" |
| Connections | Connections |
| Connector Type | Network (RJ-45) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket, dust cover, magnetic speaker grille, screws |
| Compliant Standards | UL 2043, IEEE 802.3at, PoE+ |
| Power | Power |
| Power Source | Power over Ethernet (PoE) |
| Dimensions & Weight | Dimensions & Weight |
| Diameter | 28.72 cm |
| Depth | 12.5 cm |
| Weight | 2.808 kg |
| Dimensions (WxDxH) / Weight Details | Cover: / 207 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | 0 °C |
| Max Storage Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% |
Features - Yealink - 1303094
More Details
Product Code
07:135908
EAN Code
6938818317987
Manufacturer
Yealink
