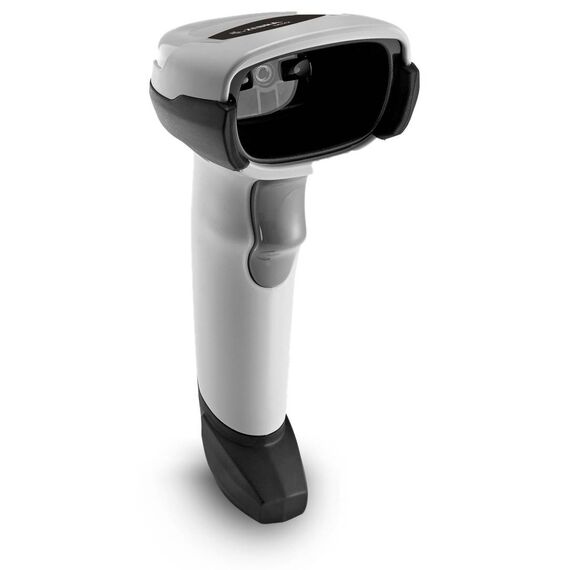

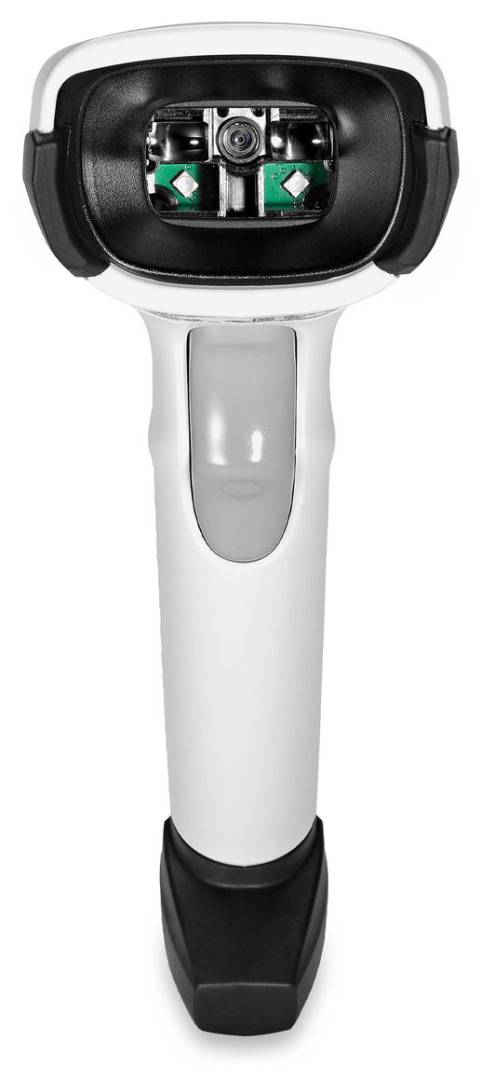

Zebra DS2208 / Barcode scanner / handheld / 2D imager / 762 mm / sec / decoded / keyboard wedge, RS-232, USB / Scanner Only,Cables sold separately | DS2208-SR00006ZZWW
Zebra DS2208 / Barcode scanner / handheld / 2D imager / 762 mm / sec / decoded / keyboard wedge, RS-232, USB / Scanner Only,Cables sold separately | DS2208-SR00006ZZWW
Description 2D barcodes have made their way to your point of sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.Your 1D scanner can't capture the 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. Zebra DS2208 / Barcode scanner | DS2208-SR00006ZZWWSpecial Features
Product features
|
Product Specification
Type | Barcode scanner - handheld |
Colour | Nova white |
Interface Type | Keyboard wedge, RS-232, USB |
Minimum Bar Width | 4 mil |
Scan Element Type | 2D imager |
Sensor Resolution | 640 x 480 |
Light Source Wave Length | 624 nm |
Scan Mode | Single-pass |
Scan Speed | 762 mm / sec |
Max Working Distance | 36.8 cm |
Skew (Degrees) | 65 |
Pitch (Degrees) | 65 |
Print Contrast Signal (PCS) | 25% |
Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Interfaces | 1 x USB ¦ 1 x RS-232 ¦ 1 x keyboard wedge |
Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
Width | 6.6 cm |
Depth | 9.9 cm |
Height | 16.5 cm |
Weight | 161.6 g |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 1.5 m to concrete |
