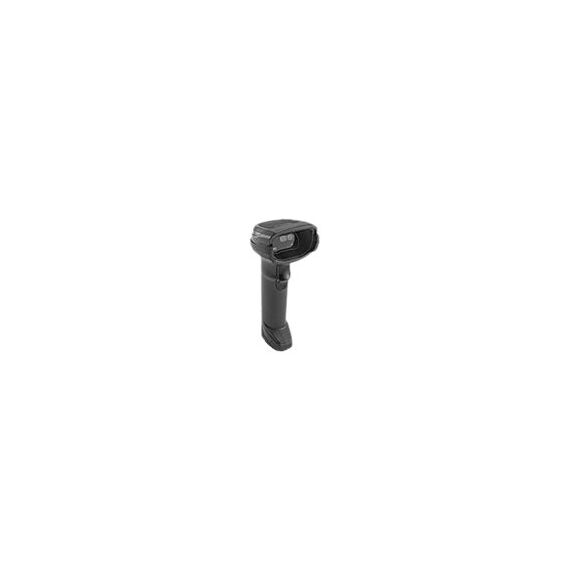

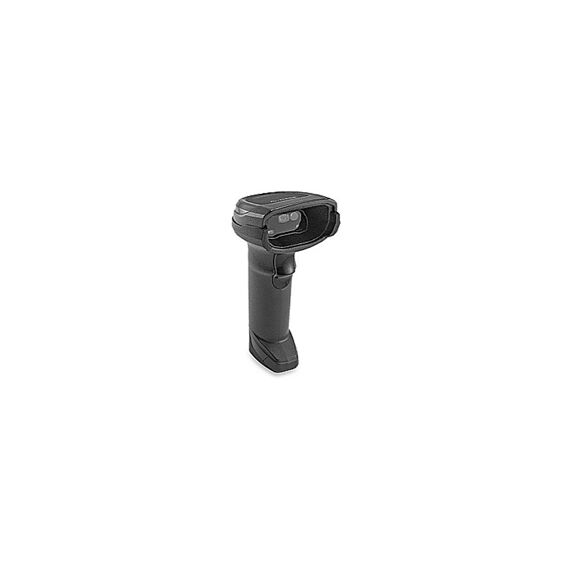

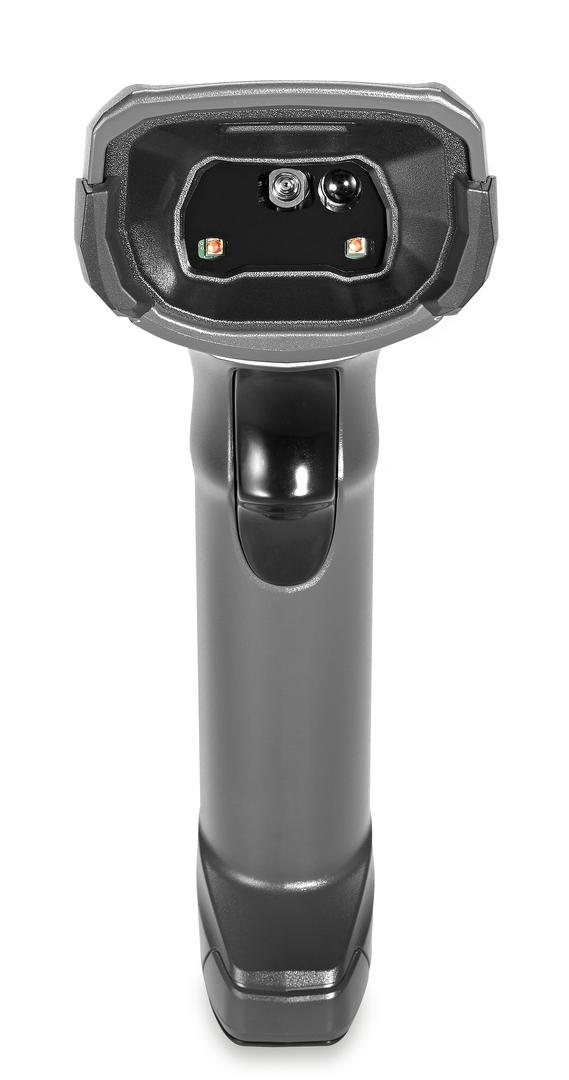

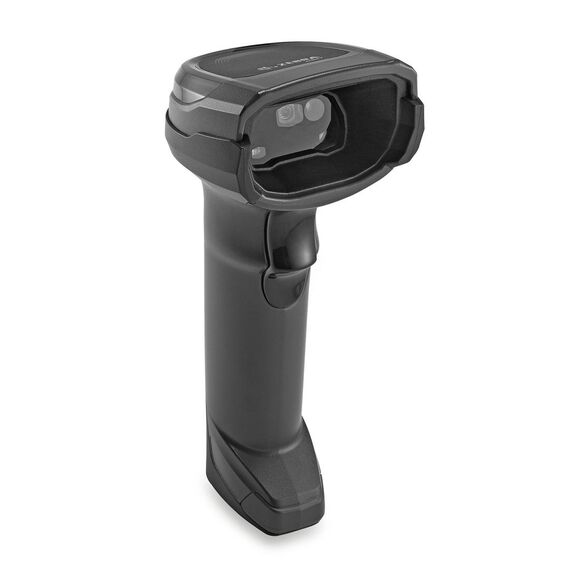

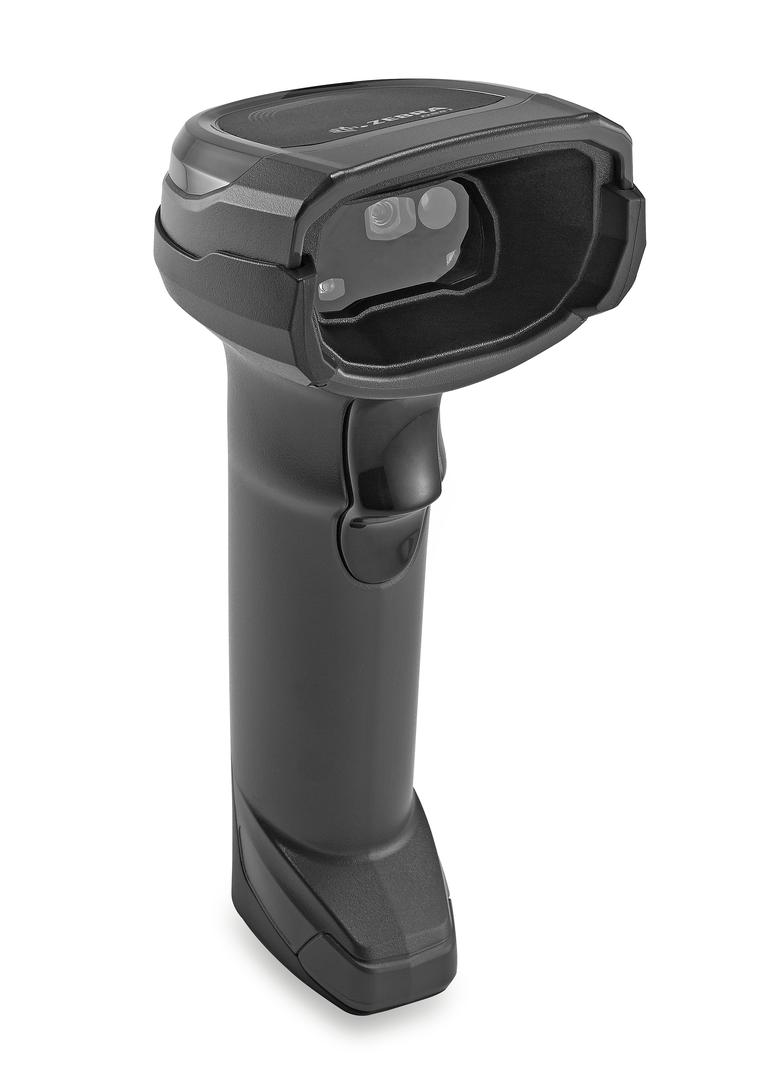

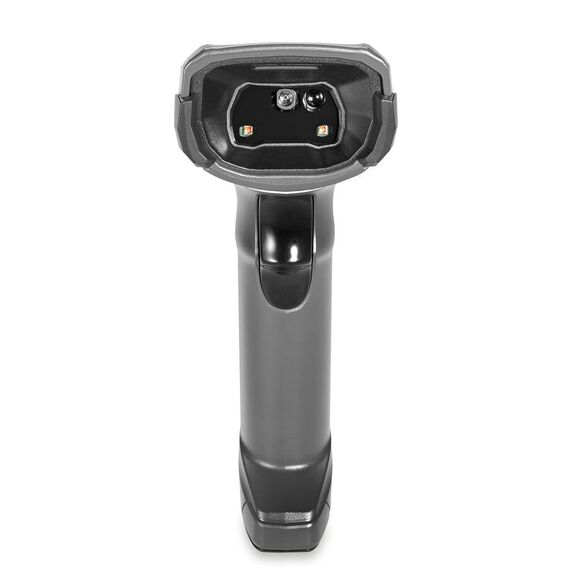

Zebra DS8108-DL - Barcode scanner - handheld - 2D imager - decoded - USB | DS8108-DL7U2100SGW
Please sign in so that we can notify you about a reply
Product Features
- Perfect performance on virtually every barcode in any condition
Only the DS8100 series combines the power of advanced microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 series instantly captures problematic barcodes - including dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays. - Superior scan range
A wide scanning range, a high resolution imaging sensor and a bright aiming spot improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer's shopping cart - without leaving the cash-wrap. - PRZM intelligent imaging
Only from Zebra, PRZM features reset the bar for imaging performance. Poor images are turned into instantly useful images for faster decoding. PRZM then handles some of the processing typically handled in the decoder to reduce power usage, improve battery cycle times and further increase decoding speed.
Special Fetures
- Perfect performance on virtually every barcode in any condition
- Superior scan range
- PRZM intelligent imaging
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Twilight black |
| Barcode | |
| Interface Type | USB |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | Code 39, QR code, Code 128, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | PRZM Intelligent Imaging technology, driving licence parsing |
| Processor | |
| Clock Speed | 800 MHz |
| Expansion / Connectivity | |
| Interfaces | 1 x USB ¦ 1 x RS-232 ¦ 1 x keyboard wedge |
| Miscellaneous | |
| Included Accessories | Stand |
| Cables Included | 1 x USB cable |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2 |
| Dimensions & Weight | |
| Width | 6.6 cm |
| Depth | 10.7 cm |
| Height | 16.8 cm |
| Weight | 154 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
