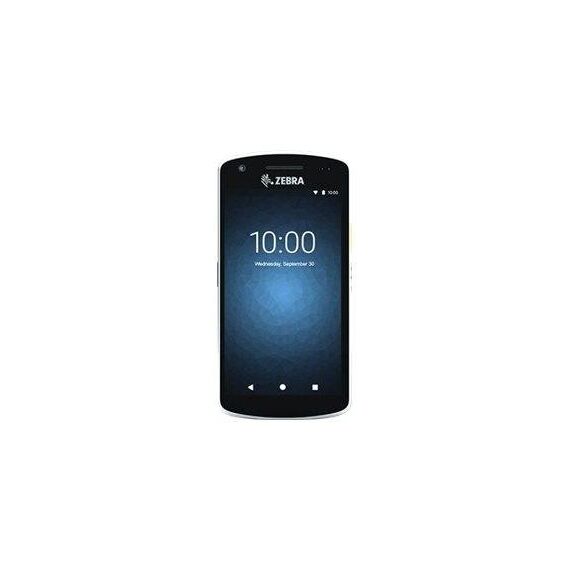

Zebra EC55 / Data collection terminal / Android 10 / 64 GB / 5" colour (720 x 1280) / rear camera + front camera / barcode reader / (2D imager) / USB host / microSD slot / Wi-Fi 5, NFC, Bluetooth / 3G, 4G | EC55BK-21B222-A6
EC55BK-21B222-A6
Product CodeV36F008
ManufacturerZebra
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Data collection terminal |
| Operating System | Android 10 |
| Display | Display |
| Type | 5" colour - LED backlight |
| Resolution | 720 x 1280 |
| Touchscreen | Multi-Touch |
| Image Brightness | 450 cd/m² |
| Features | Corning Gorilla glass, capacitive touch screen |
| Processor | Processor |
| Processor | Qualcomm Snapdragon 660 |
| Processor Clock Speed | 2.2 GHz |
| Number of Cores | 8-core |
| Memory | Memory |
| Storage | 64 GB |
| RAM | 4 GB |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
| Max Supported Capacity | 128 GB |
| Communications | Communications |
| Cellular Technology | 3G, 4G |
| Cellular Protocols | GSM, UMTS, FDD LTE, TDD LTE |
| Wireless Connectivity | 802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, EAP-MSCHAP, EAP-PWD, WPA-Enterprise |
| Rear Camera | Rear Camera |
| Sensor Resolution | 13 Megapixel |
| Focus Adjustment | Automatic |
| Lens Aperture | F/2.0 |
| Light Source | LED flash |
| Front Camera | Front Camera |
| Sensor Resolution | 5 Megapixel |
| Lens Aperture | F/2.0 |
| Navigation System | Navigation System |
| Receiver | A-GPS/GPS/GLONASS/Gallileo/Beidou |
| Multimedia | Multimedia |
| Audio | 3-microphone array, speaker |
| Barcodes | Barcodes |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Software | Software |
| Preloaded Software | Google Mobile Services |
| Expansion and Connectivity | Expansion and Connectivity |
| Expansion Slots | 1 x microSDXC ¦ 1 x Nano-SIM card |
| Interfaces | USB-C ¦ 2 pin connector |
| USB Host | Yes |
| Battery | Battery |
| Capacity | 3060 mAh |
| Run Time | Up to 10 hours |
| Miscellaneous | Miscellaneous |
| Sensors | Ambient light sensor, proximity sensor, 3-axis gyro sensor, electromagnetic compass, 3-axis accelerometer |
| Features | Interactive Sensor Technology (IST), drop-resistant, push-to-talk speaker, 2x2 MiMo function, ESD protection, vibration-resistant, SE4100 imager |
| Vibrating Alert | Yes |
| Compliant Standards | ISO 14443 type A, ISO 14443 type B, ISO 15693, IP67, FeliCa, REACH 2006/1907, MIFARE, RoHS 2011/65/EU Amendment 2015/863 |
| Localisation | Rest of World (excluding China) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.6 cm |
| Depth | 0.98 cm |
| Height | 15.45 cm |
| Weight | 173 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
