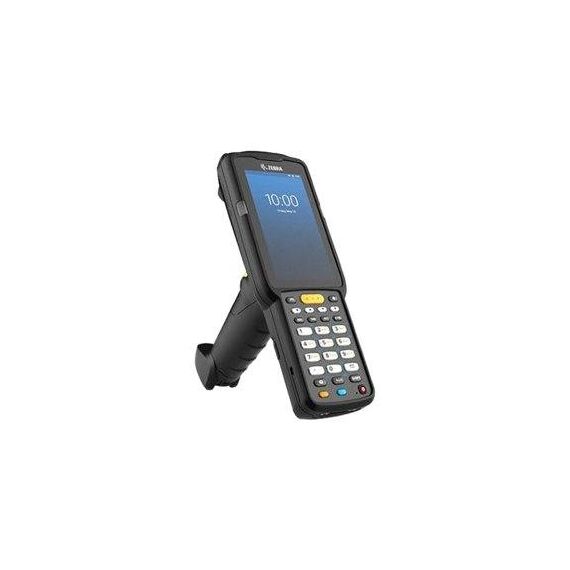

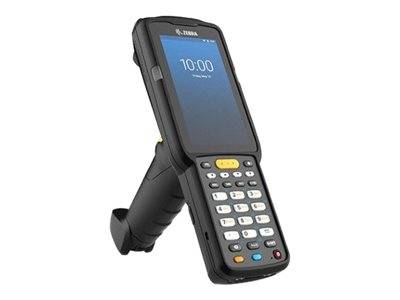

Zebra MC3300ax / Data collection terminal / Android 11 / 32 GB / 4" colour (800 x 480) / barcode reader / (2D imager) / USB host / microSD slot / NFC, Wi-Fi 6, Bluetooth | MC330X-GJ3EG4RW
Product Features
- Superior performance on all of your voice and data apps
Power even the most demanding apps of today and tomorrow with the most powerful processor and most memory in this class - every model offers an ultra-powerful 2.2 GHz octa-core processor and 4 GB RAM/32 GB flash. - Power three shifts with the 7000 mAh battery
The 7000 mAh extended capacity battery is standard with every MC3300ax. More power means fewer battery changes, easier battery management, and a smaller battery pool with fewer batteries to purchase and manage, saving you time and money. - Maximum Wi-Fi power
Get next generation Wi-Fi performance with Wi-Fi 6. Increased bandwidth and efficiency enable a major increase in devices and traffic - without impacting application performance. 2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology also boosts Wi-Fi network capacity and range by allowing access points to communicate with multiple devices simultaneously via pinpoint beamforming. - The perfect combination: touchscreen and keypad
Your application can utilize the entire display, while the physical keypad provides the same familiar user input experience your workers have today. In addition, the touchscreen paves the way to migrate to intuitive touch-based interfaces. And with three different options, you can choose the right keypad for your data entry needs - alphanumeric, numeric and functional numeric. - Bluetooth 5.1 - twice the speed, four times the range, less power
Speeds up to 2 Mbps improve the performance of Bluetooth peripherals, such as ring scanners, printers and headsets. The result? Faster application response times, faster printing and better voice quality. And battery runtime is also extended, since Bluetooth Low Energy reduces power consumption. - Integrated NFC for simple, split-second pairing
With a quick tap, workers can pair the MC3300ax with Zebra's family of ring scanners, mobile printers, and Bluetooth headsets - your pairing possibilities are endless.
Special Features
- Superior performance on all of your voice and data apps
- Power three shifts with the 7000 mAh battery
- Maximum Wi-Fi power
- The perfect combination: touchscreen and keypad
- Bluetooth 5.1 - twice the speed, four times the range, less power
- Integrated NFC for simple, split-second pairing
Product Specification
Product Type | Data collection terminal |
Operating System | Android 11 |
Display | Display |
Type | 4" colour - LED backlight |
Resolution | 800 x 480 |
Features | Corning Gorilla glass, touch screen, glove touch mode |
Processor | Processor |
Processor | Qualcomm Snapdragon 660 |
Processor Clock Speed | 2.2 GHz |
Number of Cores | 8-core |
Memory | Memory |
Storage | 32 GB |
RAM | 4 GB |
Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
Max Supported Capacity | 512 GB |
Communications | Communications |
Wireless Connectivity | NFC, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 LE |
Security Protocols & Features | LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, MS-CHAP, MS-CHAPv2, PEAPv0, PEAPv1, IPv6 support, EAP-PWD, WPA-Enterprise, GCMP, WPA3-Enterprise, WPA3-SAE |
Multimedia | Multimedia |
Audio | Microphone, speaker |
Input Device | Input Device |
Type | 2 side programmable buttons, push-to-talk button, function numeric keypad |
Keys Qty | 38 |
Barcodes | Barcodes |
Barcode Reader | Yes |
Scan Element Type | 2D imager |
RFID | RFID |
RFID Specification | ISO 15693, Felica, ISO 14443A, ISO 14443B |
Software | Software |
Preloaded Software | Google Mobile Services, Enterprise Browser |
Expansion and Connectivity | Expansion and Connectivity |
Expansion Slots | 1 x microSD |
Interfaces | USB 2.0 |
USB Host | Yes |
Battery | Battery |
Technology | PowerPrecision+ - Lithium Ion |
Capacity | 7000 mAh |
Recharge Time | 5 hour(s) |
Miscellaneous | Miscellaneous |
Sensors | 3-axis accelerometer with MEMS gyro |
Features | Interactive Sensor Technology (IST), hot-swappable battery, drop-resistant, Gun Form Factor, dustproof, push-to-talk speaker, 2x2 MiMo function, ESD protection, SE4770 Standard Range Array Imager, BLE battery, integrated Bluetooth beacon |
Compliant Standards | EN55024, Bluetooth Class 2, ICES-003 Class B, RSS-102, FIPS 140-2, FCC Part 2, UL 60950-1, IEC 60950-1, EN 60950-1, MIL-STD 810G, IP64, EN 62311, FCC OET Bulletin 65c, EN 50566, EN 301 489-1, EN 55032 Class B, REACH SvHC, EN 301 489-3, EN 50364, EN 62369-1, CAN/CSA C22.2 No. 60950-1, RoHS 2011/65/EU Amendment 2015/863, FCC Part 15 Subpart B Class B |
Localisation | Rest of World |
Dimensions & Weight | Dimensions & Weight |
Width | 7.47 cm |
Depth | 16.39 cm |
Height | 20.26 cm |
Weight | 535 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 1 year |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
