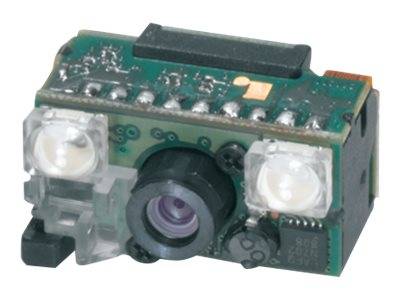

Zebra SE4500 / Short Range / barcode scanner / plug-in module / decoded | SE-4500SR-I000R
Product Features
- Exceptional motion tolerance
Enables extraordinary scanning speed for all bar codes, increasing throughput and productivity - regardless of application - Unique aiming pattern
Bright central dot ensures quick, accurate scanning - even in bright sunlight - Miniature, lightweight form factor
Less than three tenths of an ounce, adds minimal weight and maximum data capture functionality; tiny size fits easily in the most space-constrained designs - Low power consumption
Ideal for battery powered and other mobile devices - Three engine models to meet wide variety of working ranges and applications
SR (Standard Range) designed for 1D intensive applications with medium to large bar codes; DL (Driver's License optimized) ideal for small to medium bar codes and 2D intensive applications, including U.S. driver's license ID verification; HD (High Density) for very small bar codes - Easy to use
When your products are powered by the SE4500, users will enjoy an unparalleled ease of use. Full omnidirectional scanning eliminates the need to precisely align bar code and imager. A unique aiming pattern with a bright central dot ensures quick, accurate scanning - even in bright sunlight. The result is a highly intuitive scanning function that increases worker productivity, virtually eliminating the need and cost associated with training. - Proven technology you can count on
When you choose the SE4500, you get the peace of mind that comes from choosing superior, well-tested technology. Every day, all around the world, OEM products power millions of devices in thousands of applications across industries.
Special Features
- Exceptional motion tolerance
- Unique aiming pattern
- Miniature, lightweight form factor
- Low power consumption
- Three engine models to meet wide variety of working ranges and applications
- Easy to use
- Proven technology you can count on
Product Specification
Type | Barcode scanner - plug-in module |
Barcode | Barcode |
Minimum Bar Width | 5 mil |
Scan Element Type | Visible laser diode |
Sensor Resolution | 752 x 480 |
Light Source Wave Length | 655 nm |
Max Working Distance | 39.4 cm |
Skew (Degrees) | 60 |
Pitch (Degrees) | 60 |
Decode Capability | EAN/JAN, Code 39, UPC, PDF417 |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x - ZIF |
Miscellaneous | Miscellaneous |
Compliant Standards | UL, VDE, RoHS, CDRH Class II, IEC 60825 Class 2, CU |
Power | Power |
Voltage | DC 3.3 V |
Electric Current Required | 250 mA (operating), 0.5 mA (standby) |
Dimensions & Weight | Dimensions & Weight |
Width | 2.15 cm |
Depth | 1.63 cm |
Height | 1.18 cm |
Weight | 8.22 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 15 months |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -30 °C |
Max Operating Temperature | 55 °C |
Humidity Range Operating | 95% (non-condensing) |
