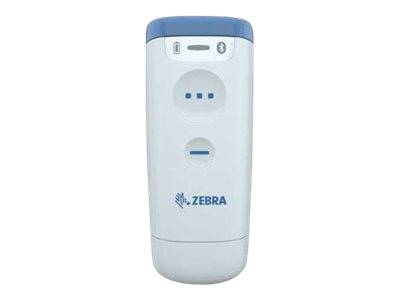

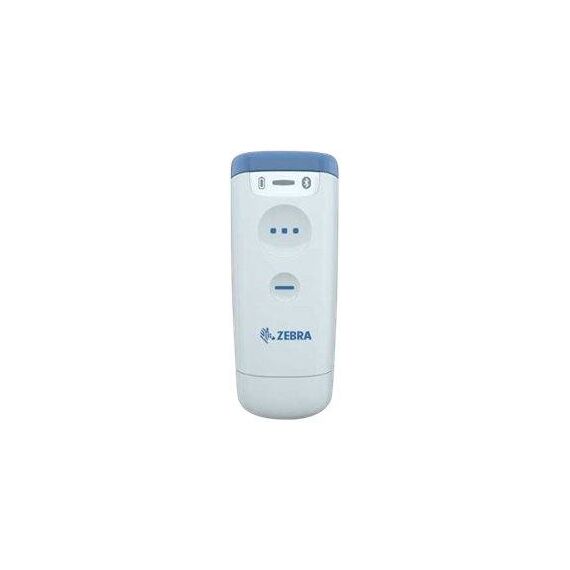

Zebra CS60-HC / Barcode scanner / companion / 2D imager / decoded / Bluetooth 5.0 | CS6080-HC4F00BVZWW
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - companion |
| Colour | Healthcare white |
| Barcode | Barcode |
| Interface Type | Bluetooth 5.0 |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 525 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 66 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | EAN/JAN, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Korean 2 of 5, Composite, Han Xin, Base 32, US currency serial number |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | 15 kV ESD protection (air discharge), 8 kV ESD protection (indirect discharge), 8 kV ESD protection (contact discharge), Qi inductive charging |
| Networking | Networking |
| Wireless Connectivity | Bluetooth 5.0 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN 61000-4-2, FIPS 140-2, IP65, EN 50581:2012, RoHS 2011/65/EU, IEC 62471:2006, EN 62471:2008, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, REACH SvHC, REACH 2006/1907, EN 62368-1:2014/AC:2015, EN 61000-3-2:2014 Class A, EN 55032:2015+AC:2016, EN 55035:2017, RoHS 2015/863/EU, EN/IEC 63000:2018, IEC 62368-1 Second Edition |
| Power | Power |
| Battery | Lithium polymer |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.6 cm |
| Depth | 10.9 cm |
| Height | 2.3 cm |
| Weight | 87 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
Features - Zebra Technologies - CS6080-HC4F00BVZWW
More Details
Product Code
V36E391
EAN Code
-
Manufacturer
Zebra Technologies
