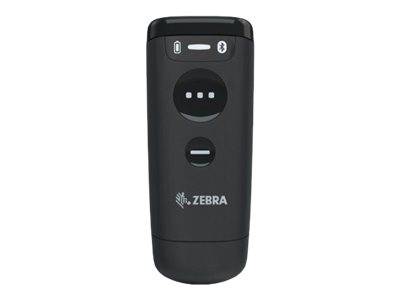

Zebra CS60 / Standard Range (SR) / Kit / barcode scanner / companion / 2D imager / decoded / Bluetooth 5.0 LE | CS6080-SR40000TZVW
Please sign in so that we can notify you about a reply
Product Features
- First-of-its-kind convertible design

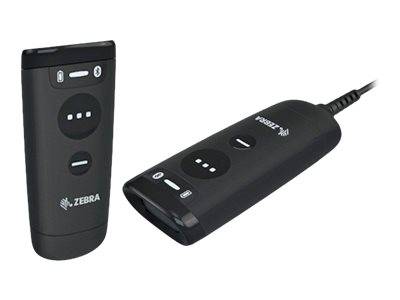

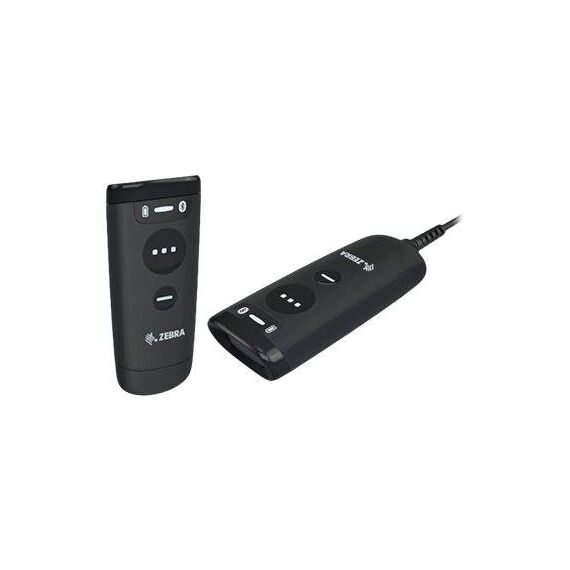

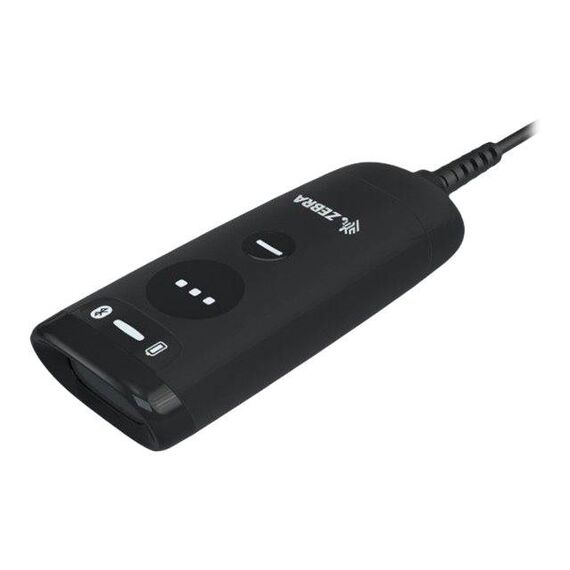

Do you need a cordless companion scanner paired to a cradle or mobile device, a corded handheld or a hands-free presentation scanner connected to a checkout stand? With the CS60, you don't have to choose. Simply swap the battery and corded USB converter at any time to change between corded and cordless scanning. - Proven scanning performance you can trust
A high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology provide unparalleled performance on the most challenging barcodes - including poorly printed, damaged dirty, crinkled, low-contrast, glossy, and electronic barcodes on dimly lit mobile phone displays. When you choose the CS60, you get Zebra's world-renowned quality and reliability. - Effortless multi-tasking with a second programmable button
Your workers may be scanning at the point of sale one minute, then taking inventory the next. That's why the CS60 has a second programmable button that can be used to instantly toggle between two host applications. With a quick press of the button, workers can send data to the right application in the proper format and order. - Easy to clean seamless construction
With its monocoque design, inductive sensing touch buttons and contactless charging, the scanner has a crevice-free surface that's easy to clean and keep clean shift after shift. - Durable for all-day, everyday use
Drop it on the floor. Spill water on it. Use it in a dusty backroom or out on the receiving dock. With best-in-class IP65 sealing and a 5 ft./1.5 m drop specification, the CS60 is engineered for durability and uptime.
Special Features
- First-of-its-kind convertible design
- Proven scanning performance you can trust
- Effortless multi-tasking with a second programmable button
- Easy to clean seamless construction
- Durable for all-day, everyday use
Product Specification
| Type | Barcode scanner - companion |
| Colour | Midnight black |
| Barcode | Barcode |
| Interface Type | Bluetooth 5.0 LE |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - green LED |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 525 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 66 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, UPC/EAN supplementals, DotCode, Han Xin, Korean 3 of 5, Base 32, US currency serial number, Composite Codes, SecurPharm, Dotted DataMatrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Waterproof, dustproof, PRZM Intelligent Imaging technology, white LEDs illumination, removable battery, Human Interface Device Profile (HID), Serial Port Profile (SPP), drop protection, 15 kV ESD protection (air discharge), 8 kV ESD protection (indirect discharge), 8 kV ESD protection (contact discharge), Qi inductive charging |
| Networking | Networking |
| Wireless Connectivity | NFC, Bluetooth 5.0 LE |
| Miscellaneous | Miscellaneous |
| Included Accessories | Lanyard |
| Compliant Standards | Bluetooth Class 1, EN 61000-4-2, REACH, IP65, EN 50581:2012, SVHC Free: 1907/2006/EC, IEC 62471:2006, EN 62471:2008, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, EN 62368-1:2014/AC:2015, EN 61000-3-2:2014 Class A, EN 55032:2015+AC:2016 Class B, EN 55035:2017, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, IEC 62368-1 Second Edition |
| Power | Power |
| Voltage | DC 4.5 - 5.5 V |
| Electric Current Required | 90 mA (standby), 400 mA (typical) |
| Battery | Lithium polymer |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.6 cm |
| Depth | 10.9 cm |
| Height | 2.3 cm |
| Weight | 83 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
Features - Zebra Technologies - CS6080-SR40000TZVW
More Details
Product Code
V36E399
EAN Code
-
Manufacturer
Zebra Technologies
