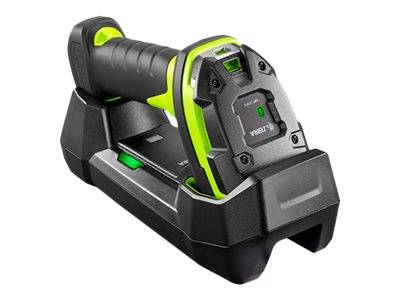

Zebra DS3678-ER / Barcode scanner / portable / 2D imager / decoded / keyboard wedge, RS-232, USB, Bluetooth 4.0 /Kit includes: scanner, 7-foot USB cable, cradle, power supply, and line cord, | DS3678-ER3U4212SVW
DS3678-ER3U4212SVW
Product CodeV358507
ManufacturerZebra Technologies
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Superior performance
You get the ultimate in scanning performance - period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem - this intelligent scanner can handle it all. - Ultra-rugged design
The warehouse and manufacturing plant floor is as tough as its gets. These cordless models are the only scanners in this class that are dust-tight, spray-proof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution. - Unrivaled manageability
With the complimentary industry-best tools, managing these scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Special Features
- Superior performance
- Ultra-rugged design
- Unrivaled manageability
Product Specification
| Type | Barcode scanner - portable |
| Colour | Industrial green |
| Barcode | Barcode |
| Interface Type | Keyboard wedge, RS-232, USB, Bluetooth 4.0 |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, TLC39, Micro QR code, China Han Xin Code |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless, wired |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Rugged |
| Networking | Networking |
| Wireless Connectivity | Bluetooth 4.0 LE |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cradle, mounting kit |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
| Power | Power |
| Power Device | Power adapter |
| Battery | 1 x Lithium Ion |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.7 cm |
| Depth | 14.2 cm |
| Height | 18.5 cm |
| Weight | 436 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 2.4 m to concrete |
