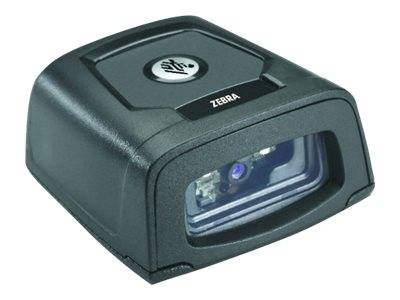

Zebra DS457-SR / Barcode scanner / desktop / decoded / USB | DS457-SREU20004
Product Features
- Get hands-free convenience and extraordinary scanning speed on any bar code
Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Zebra DS457. With comprehensive data capture, your workers can scan virtually any bar code - including 1-D, 2-D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. - Scan bar codes on practically any surface - including mobile phone displays
Your customers are rapidly adopting mobile bar codes - electronic versions of tickets, boarding passes and loyalty cards that can be carried right in the mobile phone. Since the DS457 can read bar codes on mobile phone and computer displays, you're ready for this next generation bar code, protecting customer convenience, customer service quality and employee productivity. - Flexible and easy to integrate
The DS457 can be used as a standalone scanner or integrated into the most space-constrained products to bring world-class scanning performance to mobile computers, handheld scanners, self-service kiosks, medical and diagnostic instruments, lottery terminals and more. Integration into your product designs is easy - there is no optical, mechanical or electrical engineering required. - Users are up and running in minutes
Full omni-directional scanning eliminates the need to precisely align bar code and imager. A unique aiming pattern with a bright central dot ensures quick, accurate scanning - even in the brightest lighting. The result is a highly intuitive scanning function that increases worker productivity, virtually eliminating the need and cost associated with training.
Special Features
- Get hands-free convenience and extraordinary scanning speed on any bar code
- Scan bar codes on practically any surface - including mobile phone displays
- Flexible and easy to integrate
- Users are up and running in minutes
Product Specification
Type | Barcode scanner - desktop - stationary |
Colour | Black |
Localisation | EMEA |
Barcode | Barcode |
Interface Type | USB |
Minimum Bar Width | 3 mil |
Scan Field Width | 3 cm - 33 cm |
Sensor Resolution | 752 x 480 |
Light Source Wave Length | 625 nm |
Scan Mode | Fixed projection |
Skew (Degrees) | 60 |
Pitch (Degrees) | 60 |
Print Contrast Signal (PCS) | 25% |
Decode Capability | Code 39, QR code, MaxiCode, Aztec code, UPC, Postnet, PDF417, Data Matrix, PLANET, Australian Post, Japanese Post, UK Post |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x USB |
Miscellaneous | Miscellaneous |
Compliant Standards | VCCI, C-Tick, CISPR 22 Class B, EN 60950, VDE, ICES-003 Class B, C-ETL, RoHS, ETL, IP54, CDRH Class II, IEC 60825, FCC Part 15 Class B |
Power | Power |
Electric Current Required | 160 mA (standby), 280 mA (operating) |
Dimensions & Weight | Dimensions & Weight |
Width | 6.2 cm |
Depth | 5.84 cm |
Height | 2.92 cm |
Weight | 111 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - parts and labour - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 0 - 95% (non-condensing) |
Drop Specification | 1.76 m to concrete |
