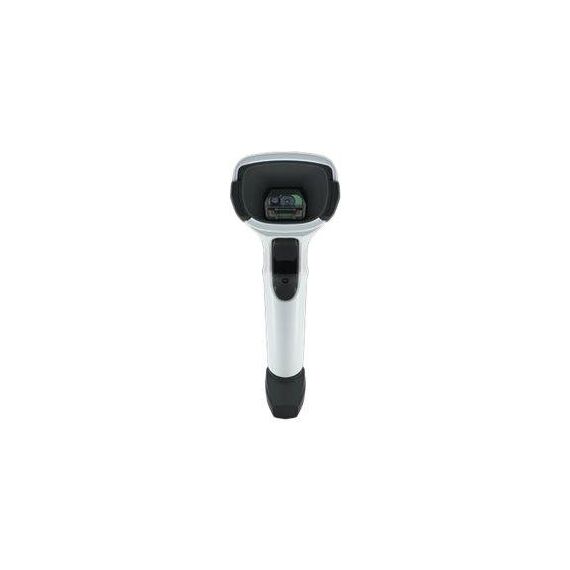

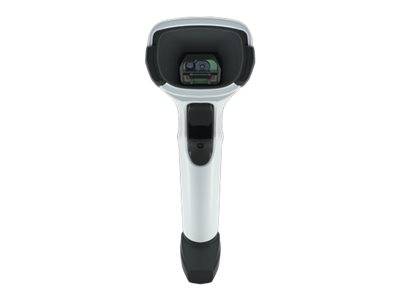

Zebra DS4608-SR / Standard Range (SR) / USB Kit / barcode scanner / handheld / 2D imager / decoded / USB | DS4608-SR6U2100AZW
Please sign in so that we can notify you about a reply
Product Features
- Designed for use at the point of care
With disinfectant-ready housing, this scanner can handle regular sanitizing with popular disinfectants to prevent the spread of infection. Screw and speaker holes are covered to mitigate the build up of bacteria. And night mode enables on-the-fly switching from an audible beep to vibration feedback when patients are asleep. - Safe led aimer is easy on the eyes
Thanks to a highly visible and safe LED aimer, the DS4600 series for healthcare can be used throughout the hospital, including the NICU where the use of laser aimers is not advised. If you are currently using a different scanner in the NICU from other floors in your hospital, you can simplify your deployment with a single solution - the DS4600 series for healthcare.
Special Features
- Designed for use at the point of care
- Safe led aimer is easy on the eyes
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Nova white |
| Barcode | Barcode |
| Interface Type | USB |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB cable - external - 2.1 m |
| Compliant Standards | EN55024, EN 61000-4-2, IP52, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1 Second Edition, EN 50581:2012, IEC 60950-1:2005, IEC 62471:2006, EN 62471:2008, FCC CFR47 Part 15 B Class B, EN 55032 Class B, IEC 62368-1, ICES-003 issue 6 Class B, EN 60950-1:2006+A2:2013, EN 60601-1-2:2015, EN 62368-1:2014, EN 55035, 2011/65/EU, IEC 60601-1-2:2014 |
| Power | Power |
| Electric Current Required | 340 mA (typical), 150 mA (standby) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.7 cm |
| Depth | 9.8 cm |
| Height | 16.5 cm |
| Weight | 161.9 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Zebra Technologies - DS4608-SR6U2100AZW
More Details
Product Code
V36D678
EAN Code
-
Manufacturer
Zebra Technologies
