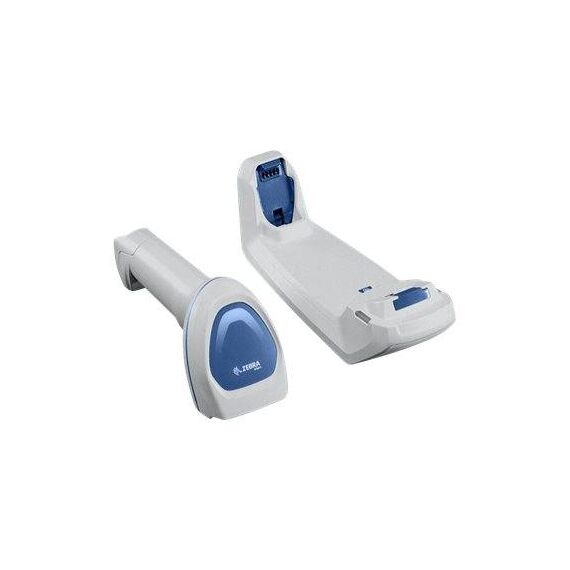

Zebra DS8178-HC / Healthcare / USB Kit / barcode scanner / portable / 2D imager / decoded / Bluetooth 4.0 / Kit includes: DS8178-HCSF00BVMWW SCANNER WITH POWER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-SC100FBWW CRADLE | DS8178-HCBU210SS5W
Please sign in so that we can notify you about a reply
Product Features
- Unparalleled performance on virtually every barcode in any condition
The DS8100-HC series combines the power of a microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100-HC series instantly captures the problematic barcodes, found in pharmacies, labs and at the point-of-care - including dense, tiny, curved, poorly printed, shiny, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays. - Housing offers maximum protection against the spread of infection
The DS8100-HC offers a purpose-built housing, specially designed to help prevent the spread of bacteria. Special plastics allow for safe wipe-downs with the wide selection of the harsh and aggressive disinfectants, used in today's hospitals. And concealed screw holes and seams eliminate areas, where bacteria could hide - even after a wipe-down. - Flexible user-selectable feedback
Including Night mode with Vibrate choose from a wide array of easily controllable feedback modes, designed for virtually any hospital environment. From the intensive care unit to a quiet night shift or a busy and more noisy day shift, there is a Feedback mode, that will instantly notify your healthcare workers, that a barcode was properly captured - without disturbing patients.
Special Features
- Unparalleled performance on virtually every barcode in any condition
- Housing offers maximum protection against the spread of infection
- Flexible user-selectable feedback
Product Specification
| Type | Barcode scanner - portable |
| Colour | Healthcare white |
| Barcode | Barcode |
| Interface Type | Bluetooth 4.0 |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 528 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 42.9 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | EAN/JAN, Code 93, Code 39, ISBT 128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, Code 39 Full ASCII, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Australian Post, Canadian Post, Japanese Post, Kix (Netherlands) Post, ISSN, UK Post, Micro QR code, 4-State postal code, China Han Xin Code, UPU FICS, DotCode, US Planet, US Postnet, USPS 4-state (US4CB), Korean 3 of 5, Base 32, Chinese Sensible Code |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | PRZM Intelligent Imaging technology, Digimarc Barcode Technology, 15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge) |
| Processor | Processor |
| Clock Speed | 800 MHz |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cradle |
| Cables Included | 1 x USB cable |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, IP52, CAN/CSA C22.2 No. 60950-1-07, MFI, EN 50581, IEC 62471, FCC CFR47 Part 15 B Class B, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2, EN 60601-1-2:2015 |
| Power | Power |
| Battery | 1 x Lithium Ion |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.6 cm |
| Depth | 10.7 cm |
| Height | 16.8 cm |
| Weight | 235.3 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
