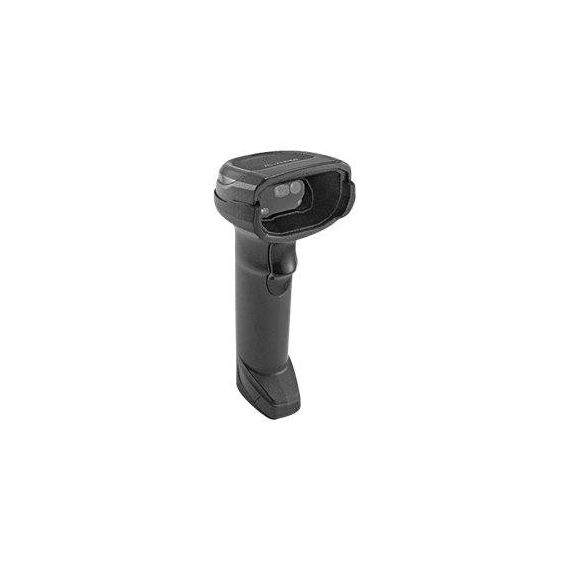

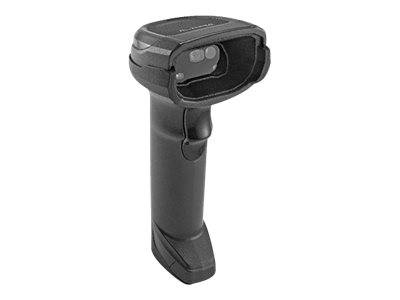

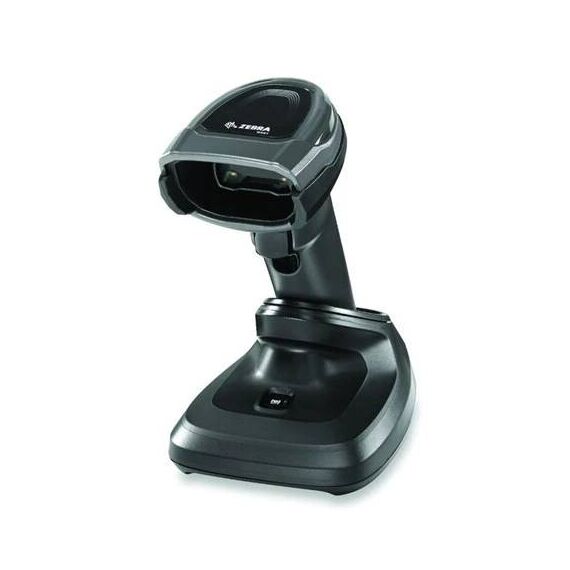

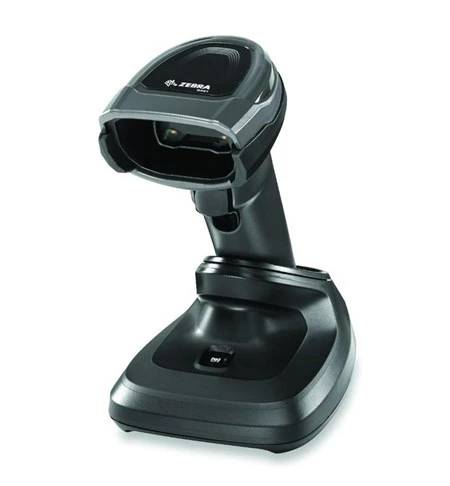

Zebra DS8178 / Standard Range (SR) / barcode scanner / portable / 2D imager / decoded / USB, Bluetooth 4.0 | DS8178-SR7U210SPFW
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Great performance
The DS8100 series combines a high-resolution sensor with Zebra's exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 series instantly captures problematic barcodes with lightning speed, including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes. - Innovation beyond the barcode
A wide range of innovations allows workers to do much more than scan barcodes one at a time. Workers can simultaneously capture multiple barcodes and transmit only those required in the proper directly to your application. - Amazing manageability
With fantastic visibility into scanning performance and battery metrics, you can spot and correct issues before they impact device uptime, worker productivity and the quality of your customer service.
Special Features
- Great performance
- Innovation beyond the barcode
- Amazing manageability
Product Specification
| Type | Barcode scanner - portable |
| Colour | Twilight black |
| Barcode | Barcode |
| Interface Type | USB, Bluetooth 4.0 |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | Code 39, QR code, Code 128, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | PRZM Intelligent Imaging technology |
| Processor | Processor |
| Clock Speed | 800 MHz |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cradle |
| Cables Included | USB cable |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.6 cm |
| Depth | 10.7 cm |
| Height | 16.8 cm |
| Weight | 235.3 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Χαρακτηριστικά
Product Code
V36D246
EAN Code
9999999999994
Manufacturer
Zebra Technologies
