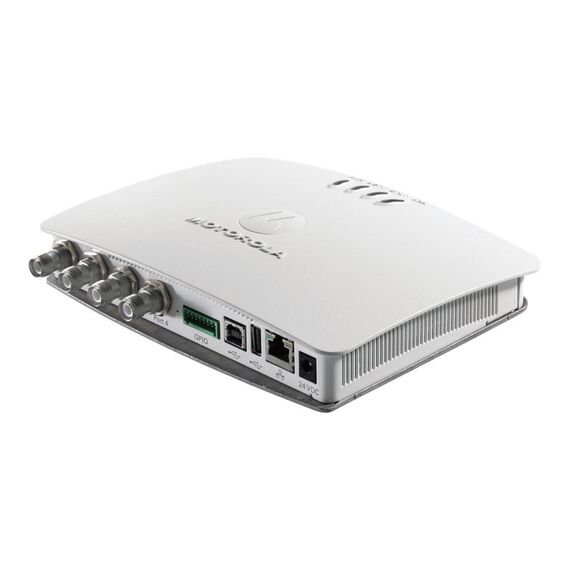

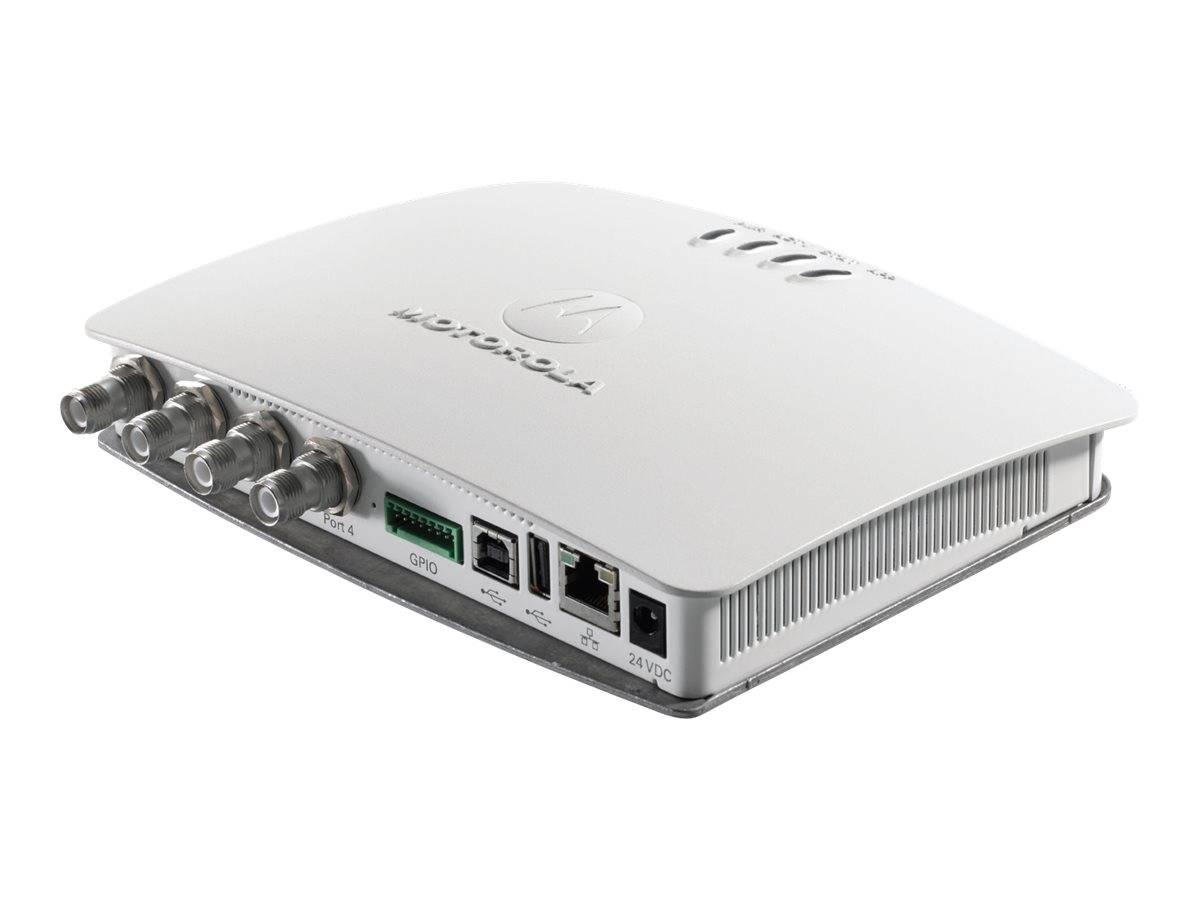

Zebra FX7500-4 / RFID reader / USB, Ethernet 100 / 865-868 MHz / 902-928 MHz | FX7500-42325A50-WR
Please sign in so that we can notify you about a reply
Product Features
- High performance radio technology
Higher sensitivity, improved interference rejection and echo cancellation means you get the best-in-class dense reader mode performance, up to 1200 tags/sec in FM0 mode. - Integrated Power Over Ethernet (POE), optically isolated GPIO, USB client and host ports with Wi-Fi and Bluetooth connectivity via USB
All the tools you need for fast, easy deployment and simplified ongoing management of your RFID applications are built right into the FX7500 architecture. - 4-port reader configurations
More configuration options mean more flexibility to optimize your read field. Deploy precisely the number of read points you need for proper coverage, no more, no less, and reduce your TCO. - Plenum area rated
The FX7500 is approved and suitable for environmental air handling space installation, so it can operate effectively within walls and ceilings.
Special Features
- High performance radio technology
- Integrated Power Over Ethernet (POE), optically isolated GPIO, USB client and host ports with Wi-Fi and Bluetooth connectivity via USB
- 4-port reader configurations
- Plenum area rated
Product Specification
| Device Type | RFID reader |
| Interface Type | USB, Ethernet 100 |
| Frequency | 865-868 MHz / 902-928 MHz |
| Flash Memory | 512 MB |
| Width | 19.56 cm |
| Depth | 14.99 cm |
| Height | 4.32 cm |
| Weight | 0.86 kg |
| Localisation | Worldwide |
| Video | Video |
| RAM | 256 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x antenna - R-TNC ¦ 1 x USB - 4 pin USB Type A |
| Connections | 1 x USB - 4 pin USB Type B ¦ 1 x network - 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | ICES-003 Class B, RSS-210, FCC Part 15, UL 2043, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, MIL-STD 810G, WEEE, FCC CFR47, EN 301 489-1, EN 301 489-3 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Zebra Technologies - FX7500-42325A50-WR
More Details
Product Code
V355635
EAN Code
-
Manufacturer
Zebra Technologies
