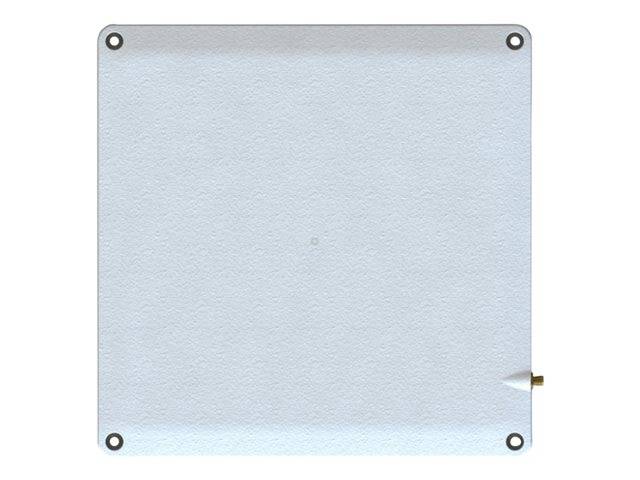

Zebra AN510 RFID Antenna / Antenna / 8.5 dBi / outdoor, flush mount, indoor, VESA bracket mounting | AN510-CSCL60004EU
Zebra AN510 RFID Antenna / Antenna / 8.5 dBi / outdoor, flush mount, indoor, VESA bracket mounting | AN510-CSCL60004EU
Description
The AN510 ultra-rugged, low profile antenna, with an IP67 rating, is suitable for use in a wide range of indoor and outdoor environments including outdoor shopping areas, receiving dock doors, ceilings, out on the tarmac, and on conveyor belts to name a few. The outer housing is designed to be sleek and discreet enough to be at home in any business but rugged enough for outdoor industrial environments. The versatile flush and VESA-studded mounting options make installation and mounting simple.
Product Specification
Product Type | Antenna |
Product Material | UV Stable ABS |
Width | 25 cm |
Depth | 1.4 cm |
Height | 25 cm |
Weight | 750 g |
Localisation | Europe |
Aerial Placing / Mounting | Outdoor, flush mount, indoor, VESA bracket mounting |
Compatibility | UHF |
Frequency Range | 865 - 868 MHz |
Gain | 8.5 dBi |
Voltage Standing Wave Ratio (VSWR) | 1.3:1 |
Horizontal Beamwidth | 68° |
Vertical Beamwidth | 68° |
Connector Provided | 1 x SMA female |
Features | IP67 protection, right hand circular polarisation |
TAA Compliant | Yes |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 55 °C |
