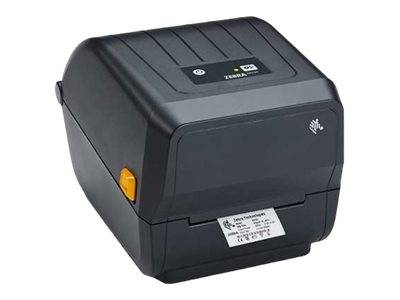

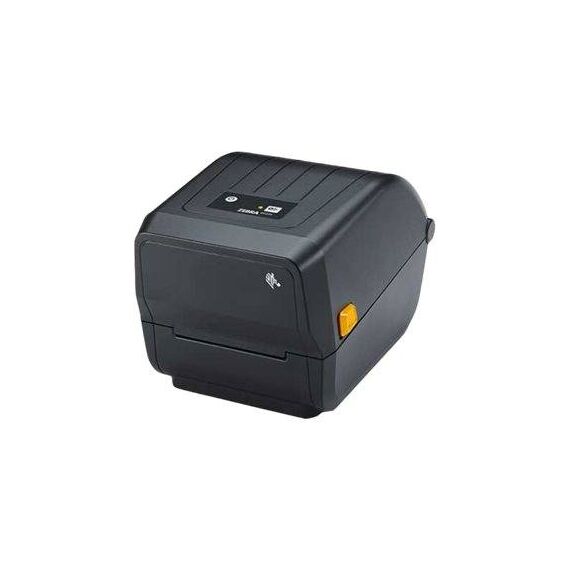

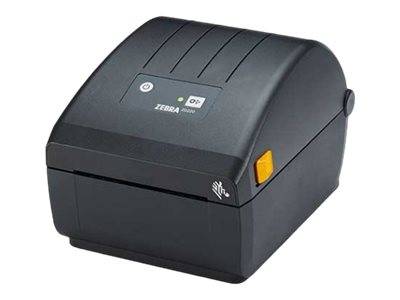

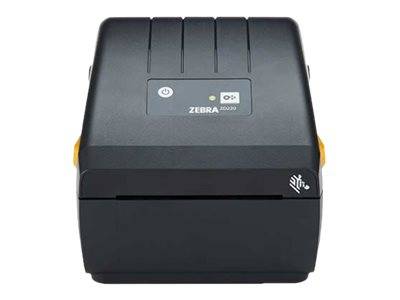

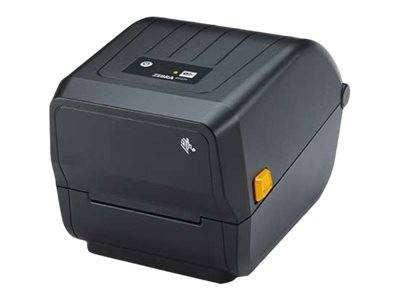

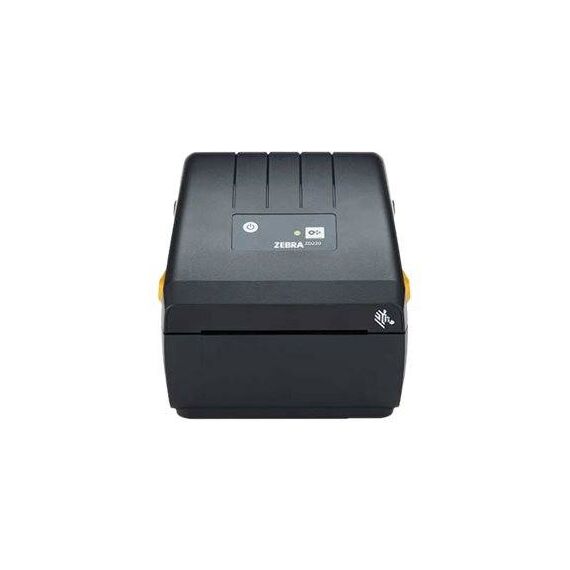

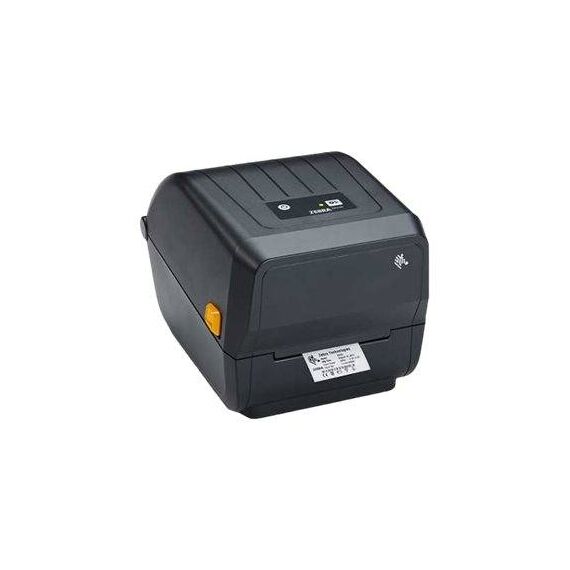

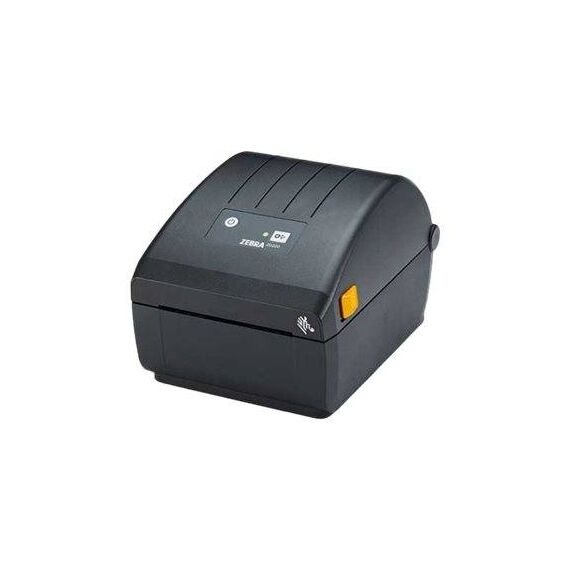

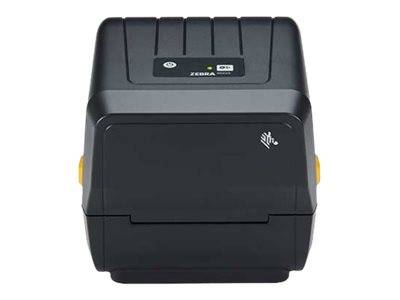

Zebra ZD200 Series ZD230 / Label printer / direct thermal / Roll (11.2 cm) / 203 dpi / up to 152 mm/sec / USB 2.0, LAN / incl.: cable (USB), power supply unit, power cable (EU, UK) | ZD23042-D0EC00EZ
Please sign in so that we can notify you about a reply
Product Features
- Great out-of-box experience
You need to get printing - quickly and easily. With an industry best out-of-box experience, the ZD200 series is simple to install and begin printing. USB connectivity allows for universal interoperability. - Basic features for simple operation
The ZD200 series gives you just what you need, nothing you don't. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status.
Special Features
- Great out-of-box experience
- Basic features for simple operation
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Localisation | United Kingdom, European Union |
| Printer | Printer |
| Print Speed | Up to 152 ppm - B/W - 203 dpi |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, EPL2, Extensible Mark-up Language (XML) |
| Features | Black Mark sensor, gap sensor |
| Fonts Included | 16 x bitmapped ZPL II ÃÂæ 2 x scalable ZPL ÃÂæ 5 x expandable EPL2 |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI |
| RAM | RAM |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | Flash Memory |
| Flash Memory | 256 MB |
| Media Handling | Media Handling |
| Media Type | Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels |
| Max Media Size | Roll (11.2 cm) |
| Media Sizes | Roll (11.2 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 991 mm |
| Media Thickness Range | 0.08 mm - 0.1905 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Networking | Networking |
| Networking | Print server |
| Expansion / Connectivity | Expansion / Connectivity |
| Connections | 1 x USB 2.0 ÃÂæ 1 x LAN |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893 |
| Power | Power |
| Power Device | Power supply |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| Software / System Requirements | Software / System Requirements |
| Software Included | Link-OS |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 4.4 ÃÂðC |
| Max Operating Temperature | 41 ÃÂðC |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.6 cm |
| Depth | 22 cm |
| Height | 15.1 cm |
| Weight | 1.1 kg |
Features - Zebra Technologies - ZD23042-D0EC00EZ
More Details
Product Code
V36C223
EAN Code
-
Manufacturer
Zebra Technologies
