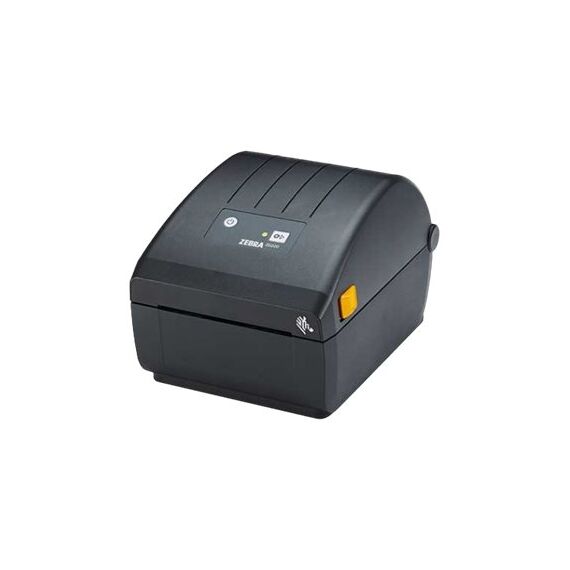

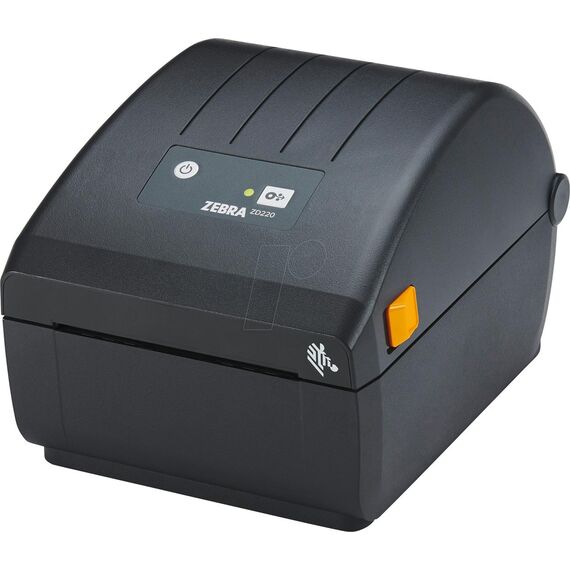

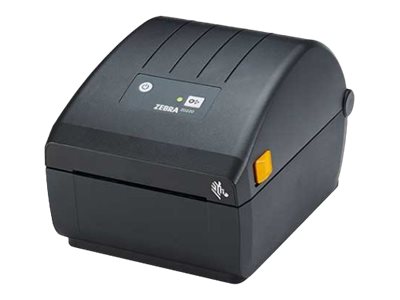

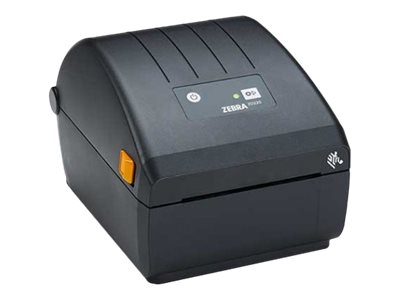

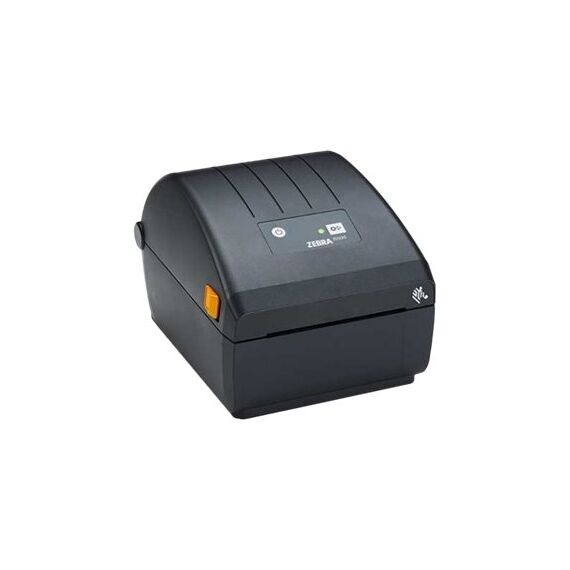

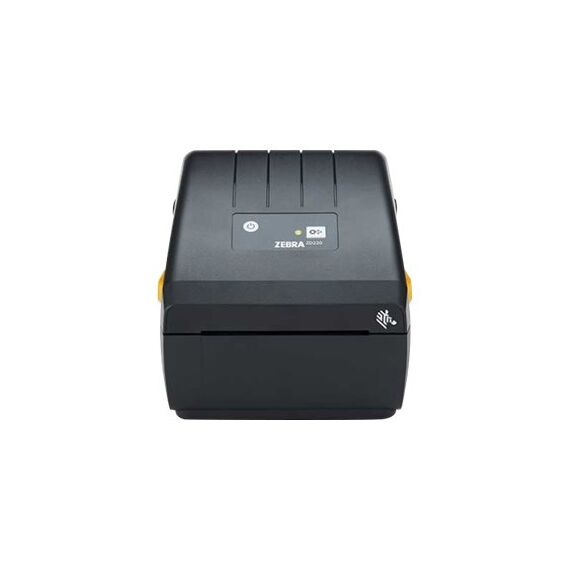

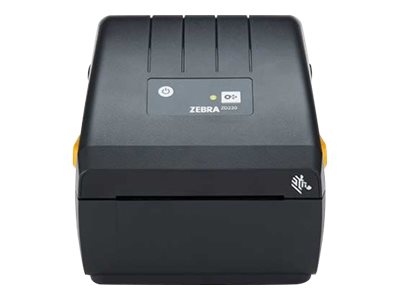

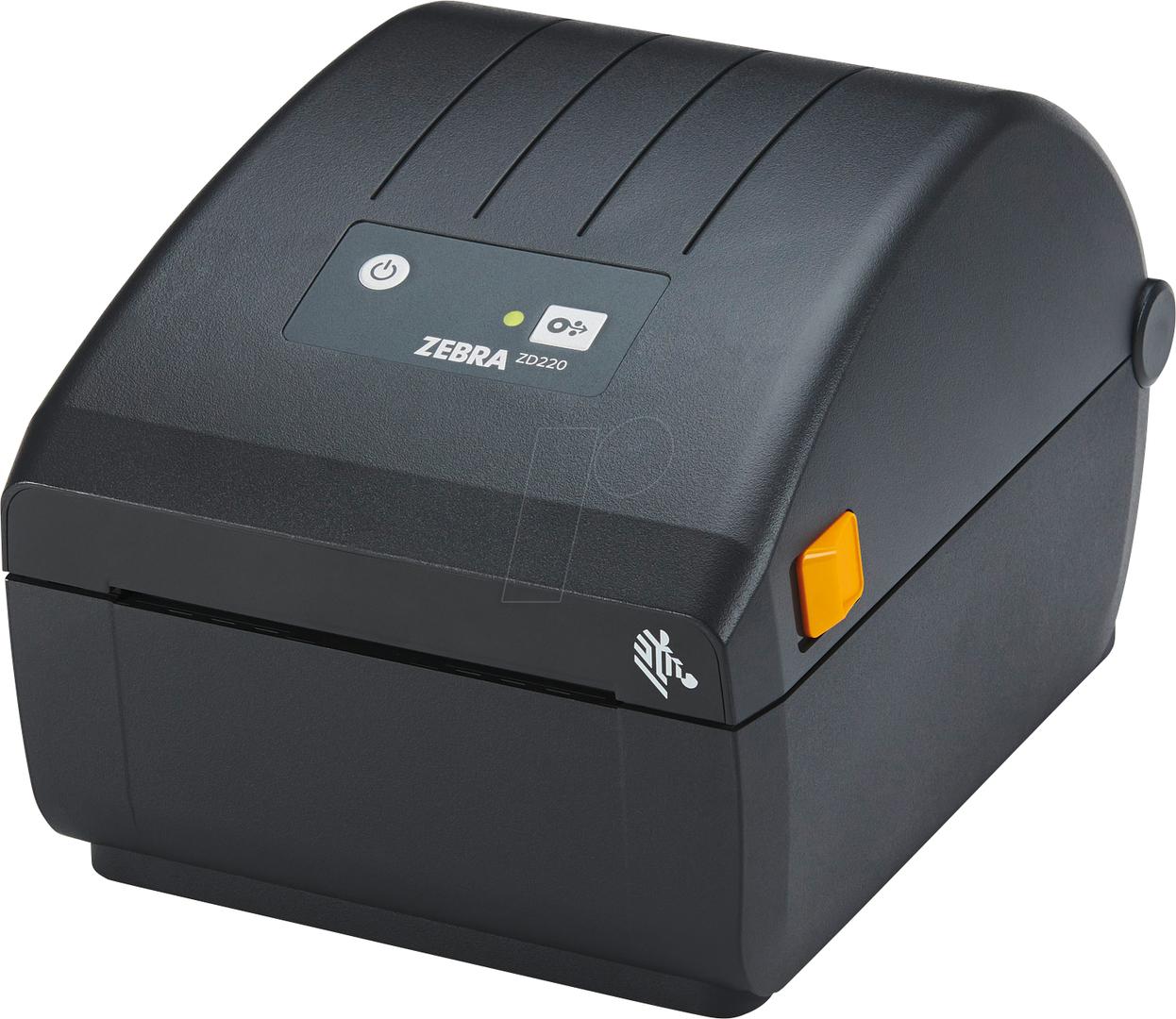

Zebra zd220 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 102 mm/sec - USB 2.0 | ZD22042-D0EG00EZ
Please sign in so that we can notify you about a reply
Product Features
- Basic features for simple operation
This 4-inch printer produces labels quickly, up to 4" per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. - Get printing quickly
The ZD220 is simple to install and begin printing - right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra's OpenACCESS clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
Special Fetures
- ZPL and EPL programming languages
- Single LED status indicator
- Single button for feed/pause
- USB connectivity
- OpenACCESS for easy media loading
- Dual-wall frame construction
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Localisation | United Kingdom, European Union |
| Printer | |
| Print Speed | Up to 102 ppm - B/W - 203 dpi |
| Connectivity Technology | Wired |
| Interface | USB 2.0 |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, EPL2, Extensible Mark-up Language (XML) |
| Features | Black Mark sensor, gap sensor |
| Fonts Included | 16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2 |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI |
| RAM | |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 256 MB |
| Media Handling | |
| Media Type | Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels |
| Max Media Size | Roll (11.2 cm) |
| Media Sizes | Roll (11.2 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 991 mm |
| Media Thickness Range | 0.08 mm - 0.1905 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893 |
| Power | |
| Power Device | Power supply |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| Software / System Requirements | |
| Software Included | Link-OS |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 4.4 °C |
| Max Operating Temperature | 41 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.6 cm |
| Depth | 22 cm |
| Height | 15.1 cm |
| Weight | 1.1 kg |
