Zebra ZD620d / Label printer / thermal paper / Roll (11.8 cm) / 300 dpi / up to 152 mm/sec / USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE / tear bar / grey | ZD62143-D0EL02EZ
Please sign in so that we can notify you about a reply
Zebra ZD620d / Label printer / thermal paper / Roll (11.8 cm) / 300 dpi / up to 152 mm/sec / USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE / tear bar / grey | ZD62143-D0EL02EZ
Description
The ZD620 delivers maximum printer throughput and productivity with best-in-class print speeds. A three-button interface with five LED status icons or an optional 10-button interface with color LCD display makes it easy to setup, configure or restore printer availability before productivity is impacted.
Zebra ZD620d / Label printer | ZD62143-D0EL02EZ
Special Features
- Premier printing performance
- Ease-of-use
- Deployment and application flexibility
Product features
- Premier printing performance
The ZD620 delivers maximum printer throughput and productivity with best-in-class print speeds. - Ease-of-use

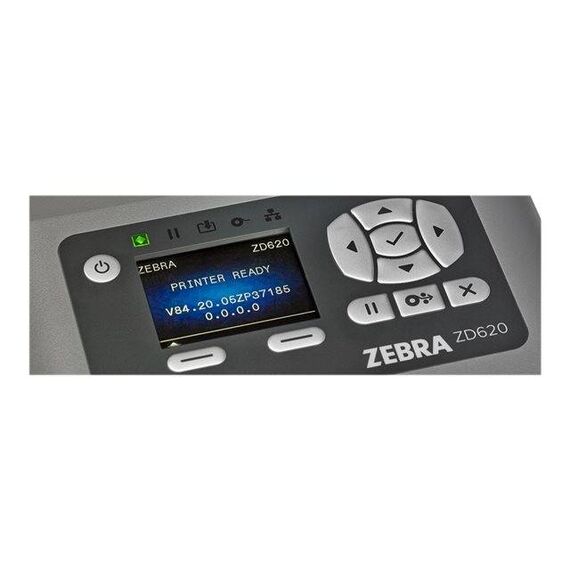

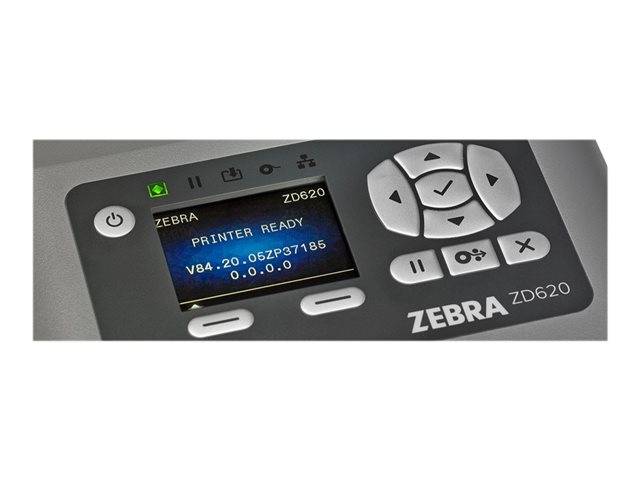

A three-button interface with five LED status icons or an optional 10-button interface with color LCD display makes it easy to setup, configure or restore printer availability before productivity is impacted. - Deployment and application flexibility
The same label formats and applications you are using today plus comprehensive connectivity options enable you to connect to your existing wired or wireless network, or directly to any PC. The ZD620 runs Link-OS and is supported by our powerful Print DNA suite of applications, utilities and developer tools for better performance, simplified remote manageability and easier integration.
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Enclosure Colour | Grey |
| Print Speed | Up to 152 mm/sec - B/W - 300 dpi |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL II, EPL2, ZBI, Extensible Mark-up Language (XML) |
| Features | Realtime clock, Black Mark sensor, gap sensor, tear bar |
| Fonts Included | 16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2 |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 512 MB |
| Media Type | Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 991 mm |
| Media Thickness Range | 0.08 mm - 0.1905 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Print server |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Features | LCD display |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893 |
| Power Device | Power supply |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| Software Included | Drivers & Utilities, Link-OS |
| ENERGY STAR | Yes |
| Min Operating Temperature | 4.4 °C |
| Max Operating Temperature | 41 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 17.7 cm |
| Depth | 22.1 cm |
| Height | 15.1 cm |
| Weight | 1.6 kg |
Features - Zebra Technologies - ZD62143-D0EL02EZ
More Details
Product Code
V36B248
EAN Code
-
Manufacturer
Zebra Technologies
