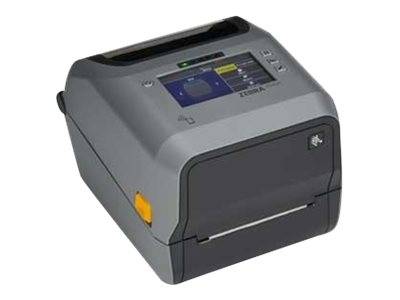

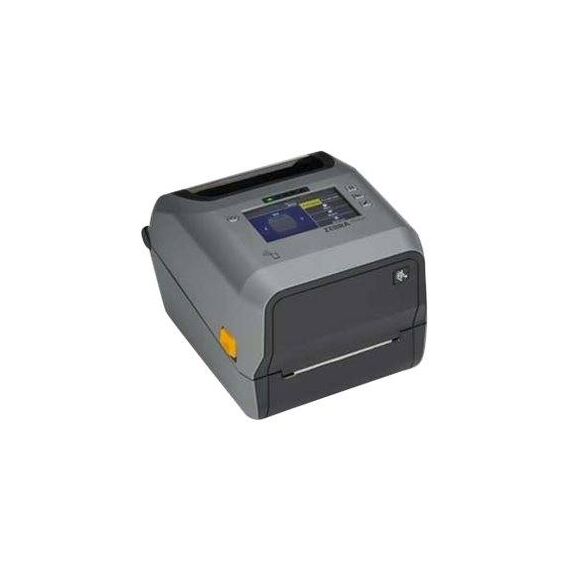

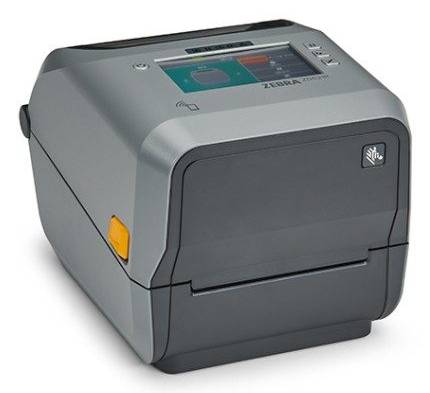

Zebra ZD621R / Label printer / thermal transfer / Roll (11.8 cm) / 203 dpi / up to 203 mm/sec / USB 2.0, LAN, serial, USB host | ZD6A142-30EFR2EZ
Please sign in so that we can notify you about a reply
Product Features
- Print and encode with ease
The ZD621R utilizes Zebra's own RE40 RFID module to support a broad range of applications across several industries. Adaptive encoding technology allows for excellent media flexibility and simple RFID calibration, eliminating complex placement guidelines. Optimized to efficiently print and encode labels, the ZD621R gives you greater tracking abilities, deeper visibility and enterprise insights in an ever-competitive business environment. - RFID backed by the broadest, field-proven portfolio
Zebra leverages decades of expertise, design thinking and software development to help you deliver maximum RFID gains, while minimizing the pains that can come with multi-vendor solutions. Zebra gives you the industry's broadest, field-proven RFID portfolio for unmatched accuracy and interoperability. Look to Zebra's consistent, fully scaled platform that anticipates real-world challenges and elevates the performance of every system, device, tag and worker. - Intuitive user interface
Interact at a touch with the ZD621R's 4.3-inch, full-color LCD touch display. The easy-to-use menu features step-by-step setup wizards, troubleshooting animations, media-loading and calibration guidance, and supports standalone printing applications. The display also changes color to show printer status at a glance. And, color-coded touch points guide users through media handling tasks for speedy media changes. Zebra touchscreens are designed and tested for toughness and reliability, including robust tolerance to temperature, humidity, dust and other environmental challenges. - Backwards compatible with virtually any existing thermal printer
Use the same label formats and applications you're using today. It supports both EPL and ZPL printer languages, and can emulate languages normally associated with other printer brands using Zebra's Print DNA tool Virtual Devices. - Connect your way with comprehensive communication
Integrate your ZD621R onto your existing wired and wireless networks or connect it directly to any PC. Every ZD621R comes with Ethernet, Serial, USB 2.0 and USB Host, or add an optional dual wireless radio with fast 802.11ac Wi-Fi and Bluetooth 4.1. Print from any Windows, Android or iOS device, and utilize Zebra's printer setup mobile app using Bluetooth Low Energy (BLE).
Special Features
- Print and encode with ease
- RFID backed by the broadest, field-proven portfolio
- Intuitive user interface
- Backwards compatible with virtually any existing thermal printer
- Connect your way with comprehensive communication
Product Specification
| Printer Type | Label printer - thermal transfer - monochrome |
| Localisation | United Kingdom, Europe |
| Printer | Printer |
| Print Speed | Up to 203 mm/sec - max speed |
| Built-in Devices | RFID reader, 4.3 inch LCD touch screen |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, serial, USB host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML), PDF Direct |
| Features | Realtime clock, label dispenser, Print Touch tag, transmissive/gap sensor, reflective/black mark sensor |
| Fonts Included | 16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2 |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI |
| RAM | RAM |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | Flash Memory |
| Flash Memory | 512 MB |
| Media Handling | Media Handling |
| Media Type | Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm x 6.4 mm |
| Max Media Size (Custom) | 118 mm x 991 mm |
| Media Sizes | Roll (1.5 - 11.8 cm) |
| Max Printing Width | 104 mm |
| Media Thickness Range | 0.08 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | Networking |
| Networking | Print server |
| Expansion / Connectivity | Expansion / Connectivity |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 core adapters, 2 ribbon cores |
| Cables Included | 1 x USB cable |
| Features | Printer setup mobile app via BLE connection |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, IEC 62368-1, EN 301 893, RoHS 2011/65/EU Amendment 2015/863 |
| Power | Power |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| Software / System Requirements | Software / System Requirements |
| Software Included | Link-OS |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 4.4 °C |
| Max Operating Temperature | 41 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20.2 cm |
| Depth | 26.7 cm |
| Height | 19.2 cm |
| Weight | 2.5 kg |
Features - Zebra - ZD6A142-30EFR2EZ
More Details
Product Code
CA98375
EAN Code
-
Manufacturer
Zebra
