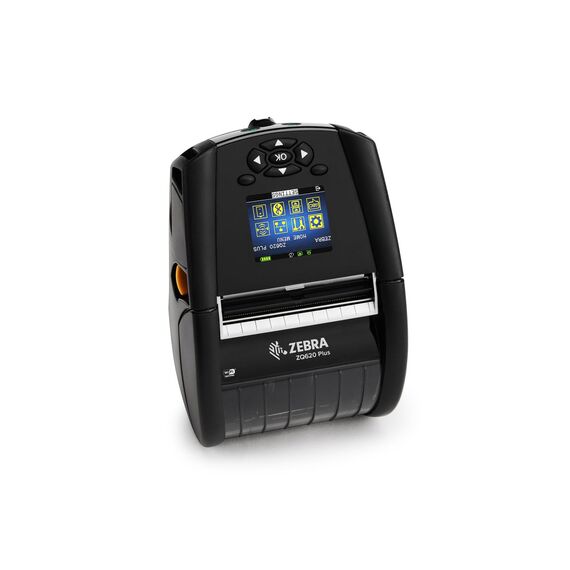

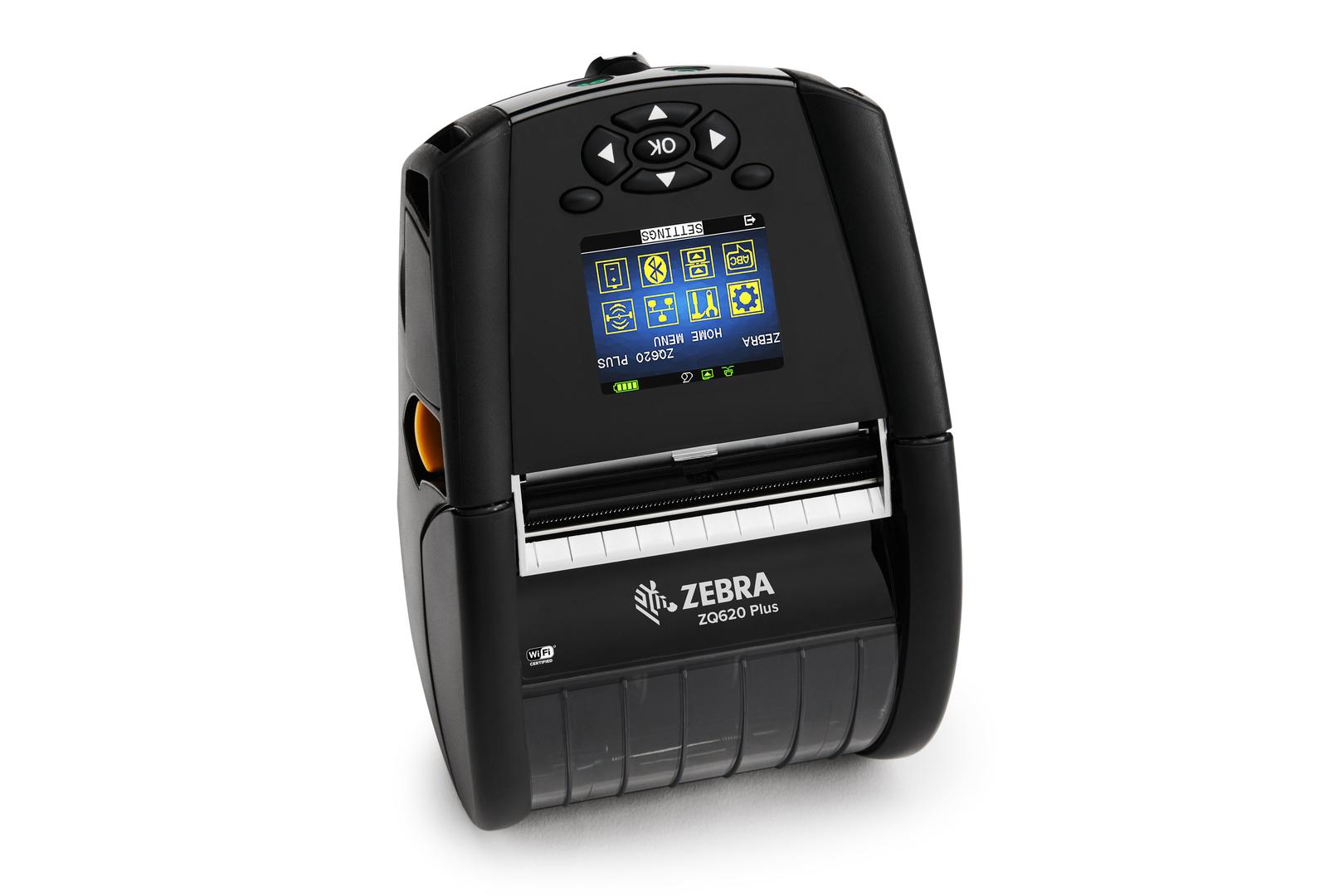

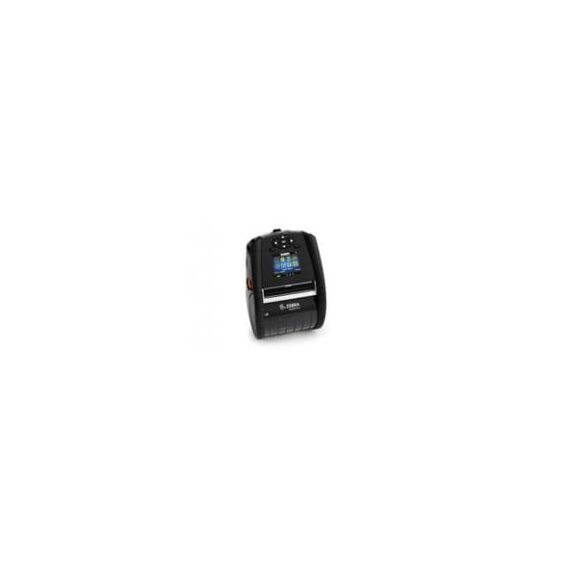

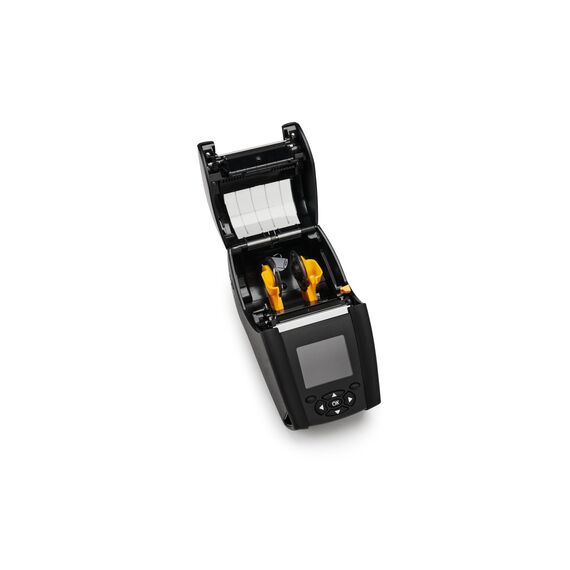

Zebra ZQ600 Series ZQ620 Plus / Label printer / direct thermal / Roll (7.9 cm) / 203 dpi / up to 115 mm/sec / USB, NFC, RS232C, Wi-Fi(ac), Bluetooth 4.2 LE | ZQ62-AUWAE14-00
Please sign in so that we can notify you about a reply
Product Features
- Industry-standard 802.11r fast roaming for seamless access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move. - Instant wake-up over Wi-Fi
This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth. - Large color display makes configuration and operation a snap
The ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers. - Business tough - built for all-day every day enterprise use
While the ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Special Features
- Industry-standard 802.11r fast roaming for seamless access
- Instant wake-up over Wi-Fi
- Large color display makes configuration and operation a snap
- Business tough - built for all-day every day enterprise use
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | Printer |
| Print Speed | Up to 115 mm/sec - max speed |
| Built-in Devices | LCD display |
| Connectivity Technology | Wireless |
| Interface | USB, NFC, RS232C, Wi-Fi(ac), Bluetooth 4.2 LE |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, EPL, Comtec Printer Control Language (CPCL), ZBI 2.x |
| Fonts | CG Triumvirate Bold Condensed |
| Features | Black Mark sensor, gap sensor, label present sensor |
| Display Resolution | 288 x 240 |
| Fonts Included | 25 x bitmapped 1 x scalable |
| Barcodes | Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS |
| Printer Features | XML-enabled printing |
| Processor | Processor |
| Processor | 400 MHz |
| RAM | RAM |
| RAM Installed (Max) | 256 MB |
| Flash Memory | Flash Memory |
| Flash Memory | 512 MB |
| Media Handling | Media Handling |
| Media Type | Receipt paper, linerless labels, RFID labels, tag labels, die cut labels, black mark labels, gap |
| Max Media Size | Roll (7.9 cm) |
| Min Media Size (Custom) | 25 mm x 12.7 mm |
| Max Media Size (Custom) | 79 mm x 813 mm |
| Media Sizes | Roll (2.5 - 7.9 cm) |
| Max Printing Width | 72 mm |
| Max Printing Length | 813 mm |
| Media Thickness Range | 0.05842 mm - 0.1524 mm |
| Roll Maximum Outer Diameter | 66 mm |
| Roll Core Diameter | 19 mm, 34.9 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Networking | Networking |
| Networking | Print server |
| Remote Management Protocol | SNMP, NTP |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, 802.1x, TKIP, AES, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST |
| Expansion / Connectivity | Expansion / Connectivity |
| Connections | 1 x USB - mini-USB Type B 1 x RS-232C |
| Miscellaneous | Miscellaneous |

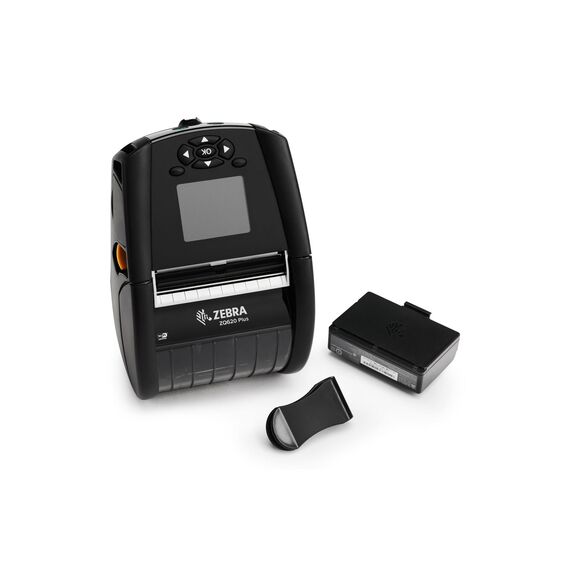

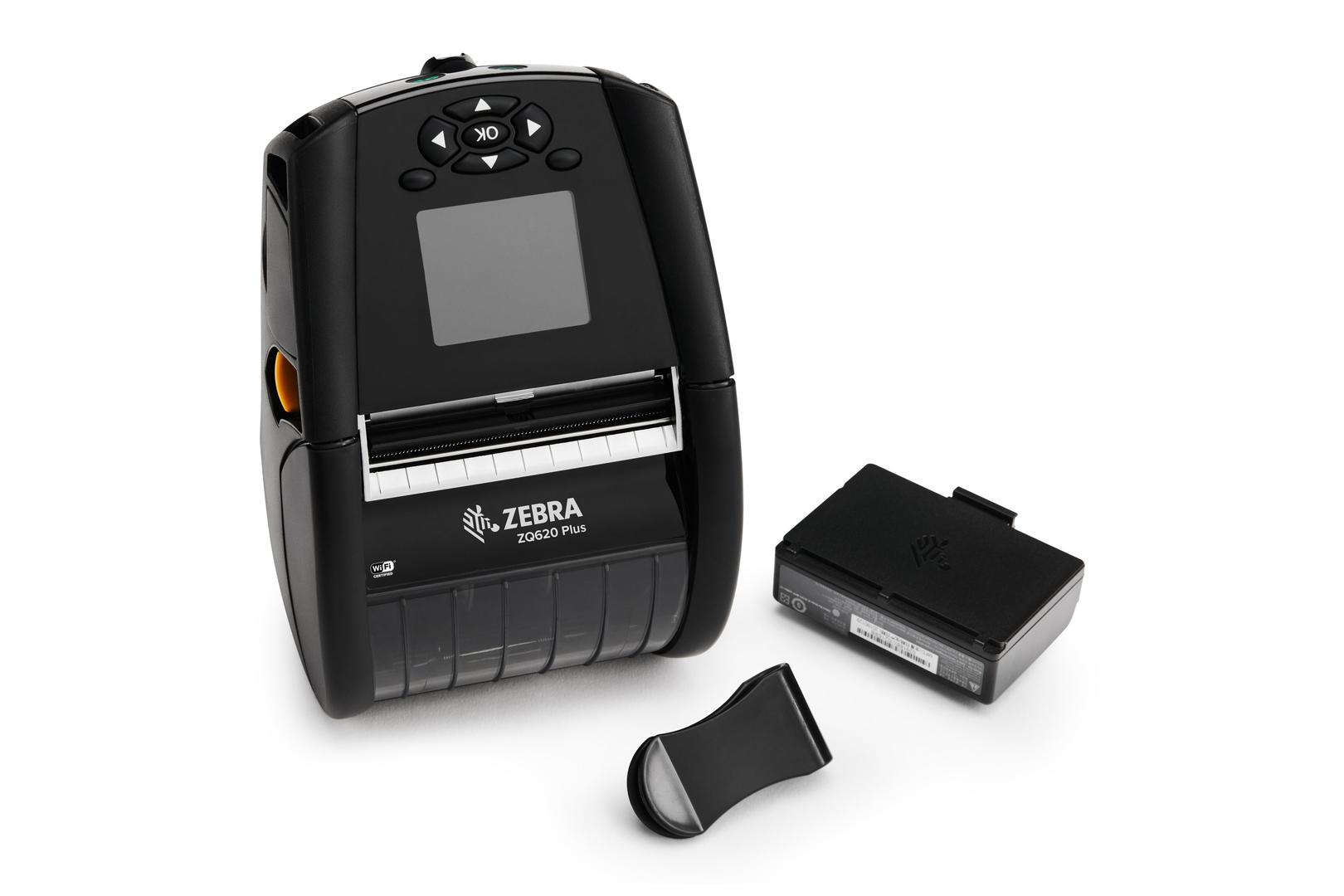

| Included Accessories | Belt clip, shoulder strap |
| Features | Water-resistant, dust-resistant |
| Compliant Standards | CSA, TUV, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, IP54, MFI, VCCI Class B, IEEE 802.11r |
| Battery | Battery |
| Type | Lithium Ion |
| Included | 1 |
| Capacity | 3250 mAh |
| Software / System Requirements | Software / System Requirements |
| Software Included | Link-OS |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.79 cm |
| Depth | 17.37 cm |
| Height | 7.69 cm |
| Weight | 730 g |
