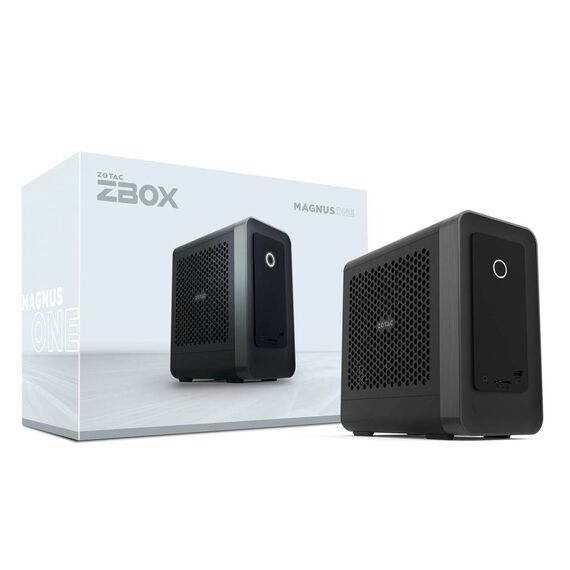

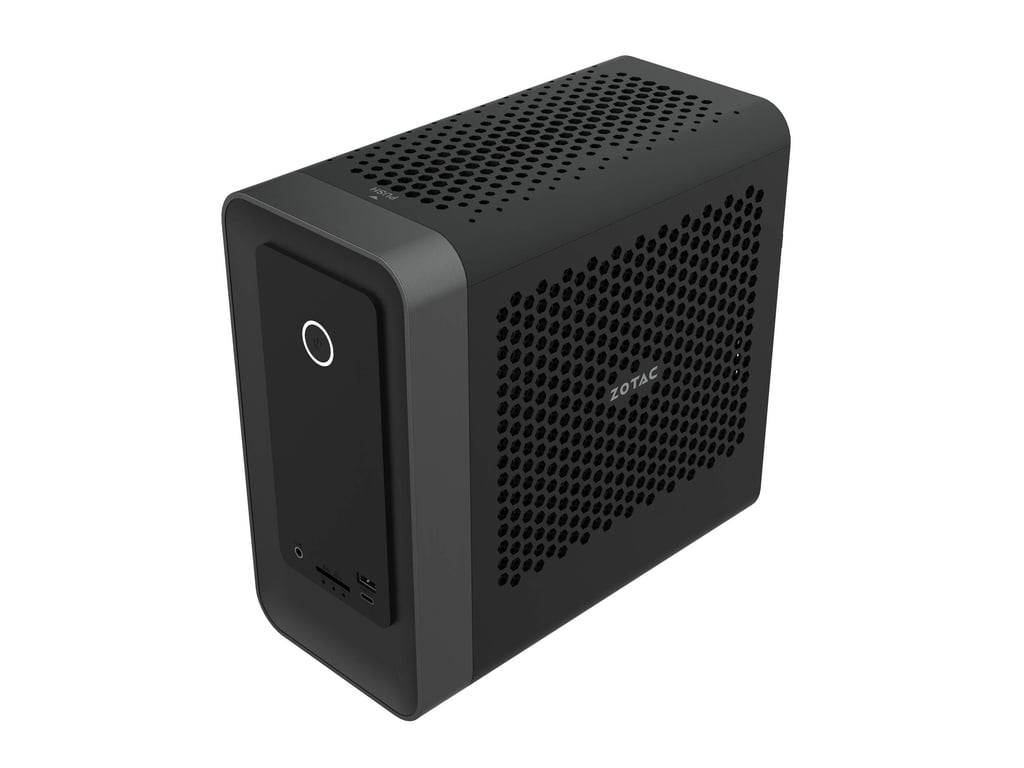

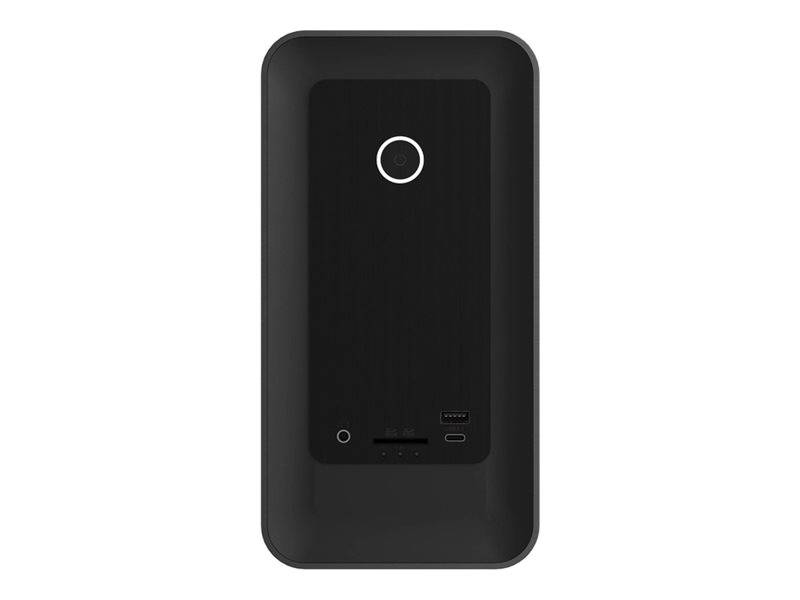

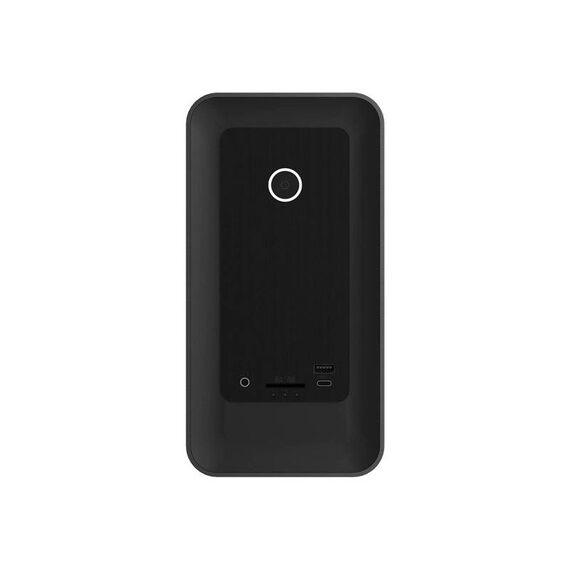

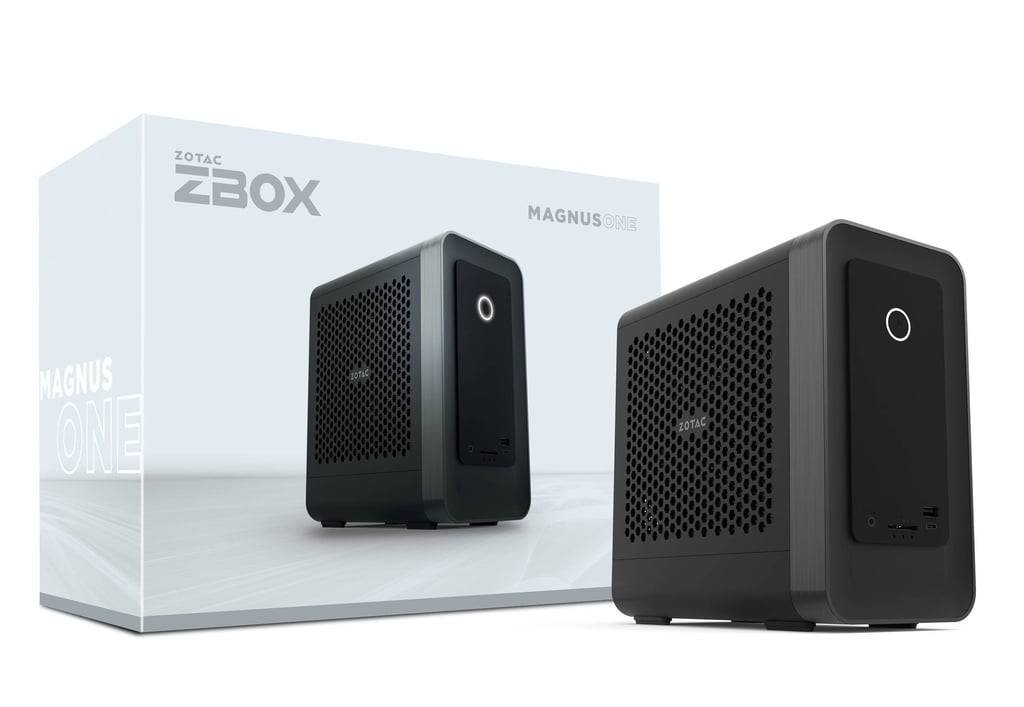

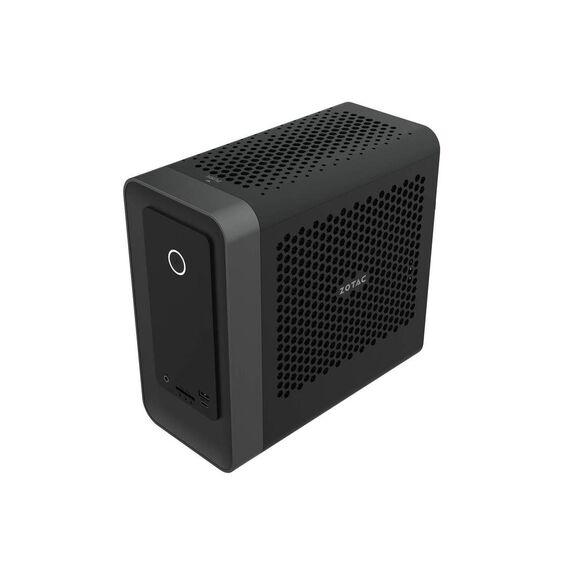

ZOTAC ZBOX MAGNUS ONE ERP74070SC / Mini PC Core i7 i7-14700 / up to 5.4 GHz / RAM 16 GB / SSD 1 TB / NVMe / GeForce RTX 4070 Super / 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2, Gigabit Ethernet / Win 11 Home | ZBOX-ERP74070SC-BE-W5B
Please sign in so that we can notify you about a reply
Product Features
- Robust audio experience
Experience immersive sound with 7.1-channel surround audio output, providing a dynamic listening environment for music, movies, and gaming. - Ample connectivity options
The ZOTAC ZBOX MAGNUS ONE comes equipped with various interfaces including HDMI, DisplayPort, USB 3.0, USB 3.1, and Thunderbolt 4, allowing for easy connection of peripherals and displays. - Advanced networking capabilities
With support for dual 2.5 Gigabit Ethernet and Wi-Fi 6, users can enjoy fast and stable Internet connectivity for gaming and streaming. - Versatile storage solutions
The system’s 1 TB SSD utilizes PCI Express technology, enabling high-speed read and write operations, making it appropriate for storage-intensive applications.
Special Features
- Compact mini PC design that fits in any workspace
- Powerful Intel Core i7 processor with turbo speed of 5.4 GHz
- Fast 1 TB SSD with NVMe technology for rapid data transfer
- Advanced NVIDIA GeForce RTX graphics for high-quality visuals
- Comprehensive connectivity options including Thunderbolt 4 and multiple USB ports
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | L3 Cache - 33 MB |
| Cache Per Processor | 33 MB |
| RAM | RAM |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Card Reader | Card Reader |
| Type | 3 in 1 card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | NVIDIA GeForce RTX 4070 SUPER |
| Video Memory | 12 GB GDDR6X SDRAM |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | Audio Output |
| Sound Output Mode | 7.1 channel surround |
| Networking | Networking |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |

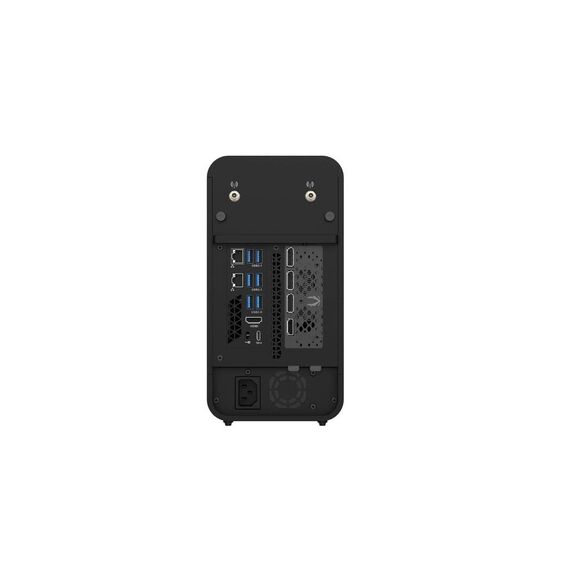

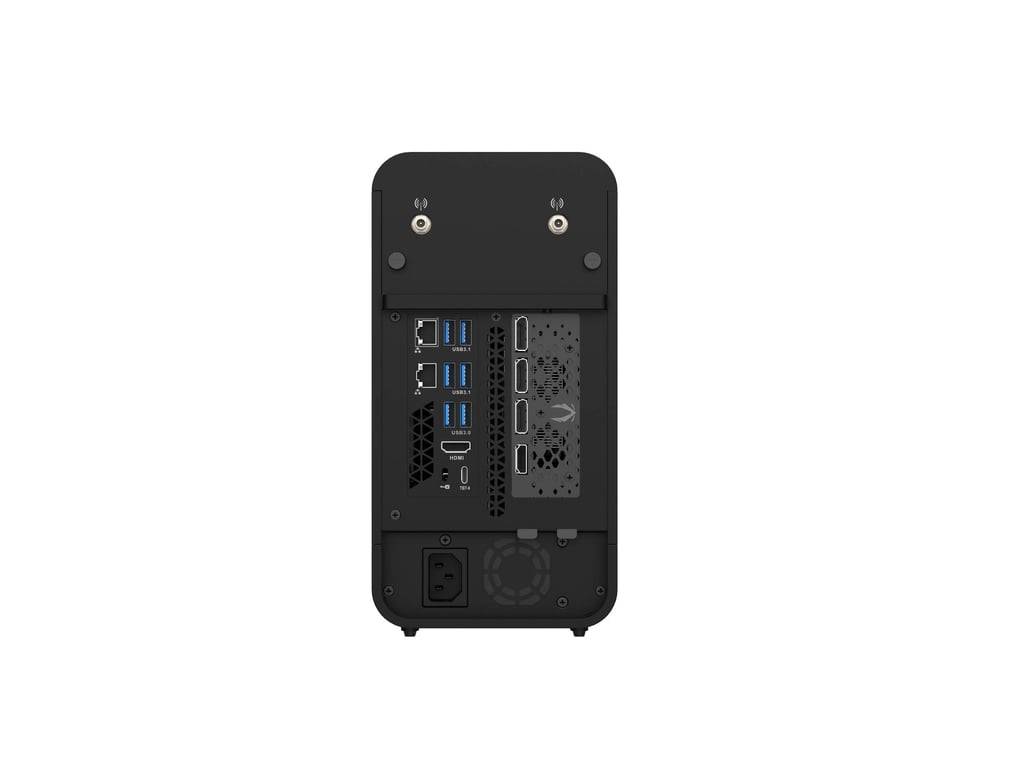

| Interfaces | 3 x DisplayPort 2 x HDMI 2 x LAN (2.5Gigabit Ethernet) 4 x USB 3.1 1 x USB-C 3.0 1 x headphones/microphone 3 x USB 3.0 1 x Thunderbolt 4 |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2x wireless aerials |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | Power |
| Device Type | Power supply |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 11 Home |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.6 cm |
| Depth | 26.55 cm |
| Height | 24.9 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 32.7 cm |
| Shipping Depth | 44 cm |
| Shipping Height | 20.5 cm |
Features - ZOTAC - ZBOX-ERP74070SC-BE-W5B
CPU Type
- Intel Core i7
Capacity
1TB
More Details
Product Code
03:253327
EAN Code
4895173629686
Manufacturer
ZOTAC
