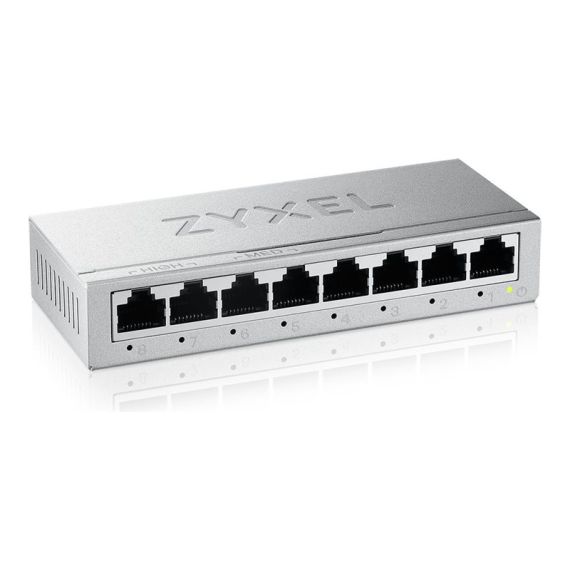

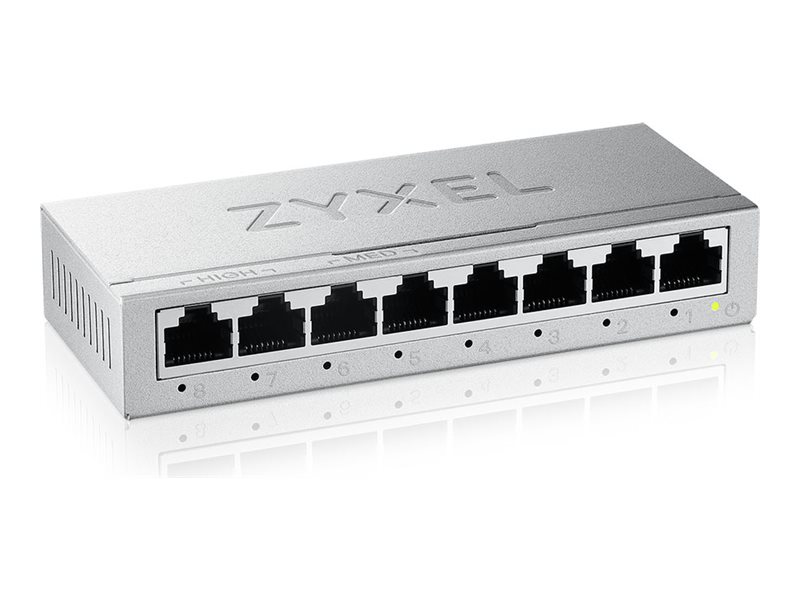

Zyxel GS-100 series GS-108B - Version 5 - switch - unmanaged - 8 x 10/100/1000 - desktop, wall-mountable | GS-108BV5-EU0101F

Product Features
- Expanded capacity
With a switching capacity of 16 Gbps and a forwarding rate of 11.5 Mpps, the GS-108B ensures efficient data flow, reducing latency in communications across devices. - Resilient environmental conditions
Designed to operate in temperatures ranging from 0°C to 40°C and storage temperatures as low as -40°C, the GS-108B maintains performance even in challenging conditions. - Advanced connectivity
The switch features auto-uplink (auto MDI/MDI-X) functionality, allowing for automatic configuration of connected devices, simplifying setup and management. - Enhanced data management
Supporting Quality of Service (QoS) features, the GS-108B prioritizes network traffic, ensuring that critical applications receive the bandwidth they require. - Impressive longevity
With an MTBF of 242,438 hours, this switch is engineered for long-term service, minimizing the need for frequent replacements.
Special Fetures
- 8 1000Base-T ports for high-speed data transfer
- Robust design with a long MTBF offering reliability
- Versatile installation options with desktop or wall-mountable form factors
- Supports Jumbo Frame up to 9 KB for enhanced data handling
- Efficient power consumption of only 4.82 W during operation
Product Specification
Device Type | Switch - 8 ports - unmanaged |
Enclosure Type | Desktop, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Performance | Switching capacity: 16 Gbps <br /> Forwarding rate: 11.5 Mpps |
Capacity | Packet buffer size: 192 KB |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 9KB |
Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, QoS |
Compliant Standards | IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3 |
Status Indicators | Port status, link/activity/speed |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 |
Power | |
Power Device | External power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Electric Current Required | 2 A |
Power Consumption Operational | 4.82 Watt |
Miscellaneous | |
Included Accessories | Wall mounting kit, rubber feet |
MTBF | 242,438 hours |
Compliant Standards | EAC, FCC, BSMI Class B |
Dimensions & Weight | |
Width | 12.6 cm |
Depth | 5.18 cm |
Height | 2.4 cm |
Weight | 390 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 95% (non-condensing) |
