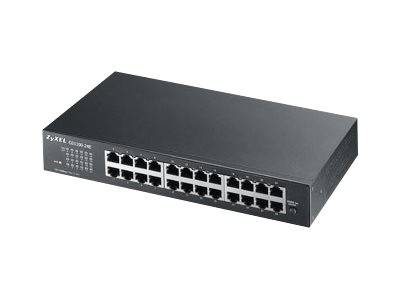

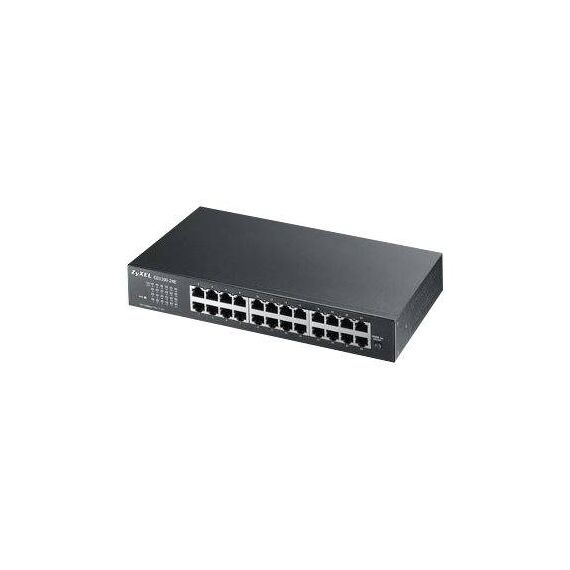

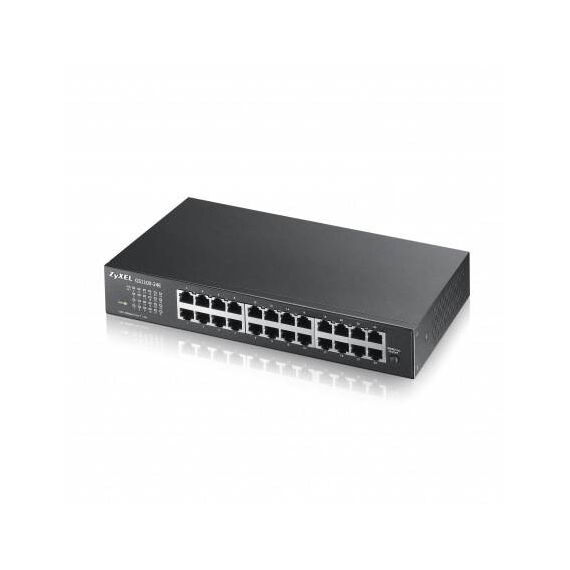

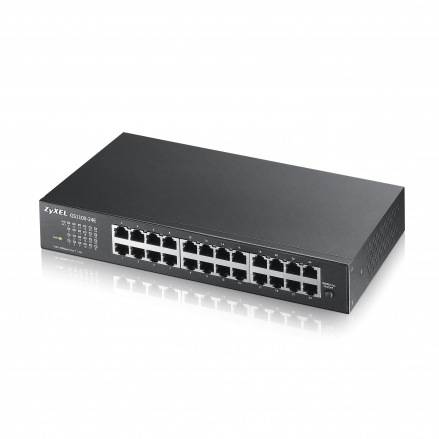

Zyxel GS-1100-24E / Switch / unmanaged / 24 x 10/100/1000 / rack-mountable, wall-mountable | GS1100-24E-EU0103F

Zyxel GS-1100-24E / Switch / unmanaged / 24 x 10/100/1000 / rack-mountable, wall-mountable | GS1100-24E-EU0103F
Description
The ZyXEL GS1100 series is the best solution for instant gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 series provides Plug-and-Play simplicity for high-bandwidth network applications.
Zyxel GS-1100-24E / Switch | GS1100-24E-EU0103F
Special Features
- Non-blocking, wire-speed transmission
- Auto MDI/MDI-X support
- IEEE 802.3az compliant
- Fanless design for silent operation
- IEEE 802.3x flow control supported
- IEEE 802.1p CoS supported
Product features
- Green networking
The GS1100 series not only offers Gigabit Ethernet connectivity for next-generation network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 series can reduce energy consumption for lowered operating costs. - Fanless design
The complete GS1100 series comes in a fanless design that ensures silent operation in small or quiet office environments. - Gigabit to the desktop
The ZyXEL GS1100 series offers small offices 24-port gigabit connectivity at the most competitive price. Additionally, the GS1100-24 model is equipped with 2 extra SFP slots, supported dual rate that enable fiber optic connections for long-distance deployments. With Gigabit network performance and high cost-effectiveness, the GS1100 series is the ideal solution for bandwidth-intensive applications such as highresolution photo transmission, video/audio streaming and server farm connections.
Product Specification
Device Type | Switch - 24 ports - unmanaged |
Enclosure Type | Rack-mountable, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 |
Performance | Switching capacity: 48 Gbps ¦ Forwarding rate: 35.7 Mpps ¦ Packet buffer size: 525 KB |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 10KB |
Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), fanless, Energy Efficient Ethernet, Class of Service (CoS), cable test |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Interfaces | 24 x 1000Base-T RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 14.4 Watt |
Included Accessories | Wall mounting kit |
Rack Mounting Kit | Included |
MTBF | 366,919 hours |
Compliant Standards | BSMI, CB, C-Tick Class B, FCC, RoHS, IEC 60950-1, EN 60950-1, BSMI CNS 13438, LVD, CNS 14336-1 |
Width | 26.7 cm |
Depth | 16.2 cm |
Height | 4.2 cm |
Weight | 1.5 kg |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 - 95% (non-condensing) |
