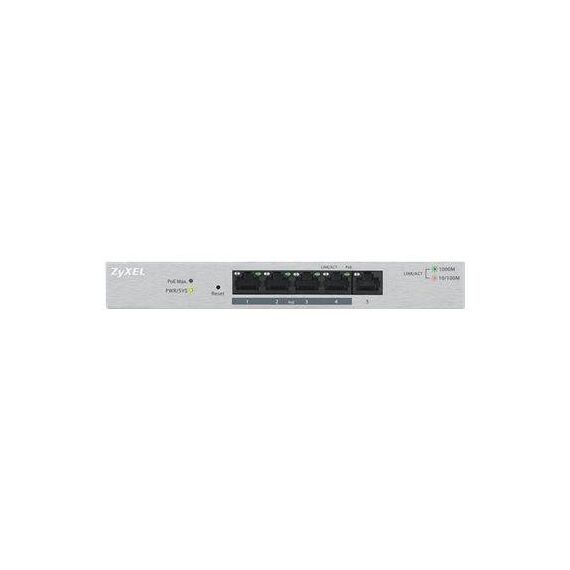

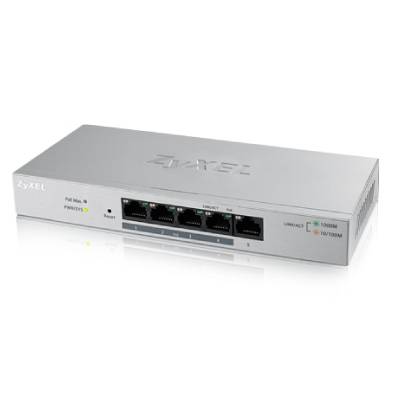

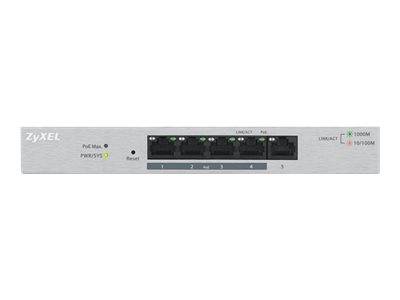

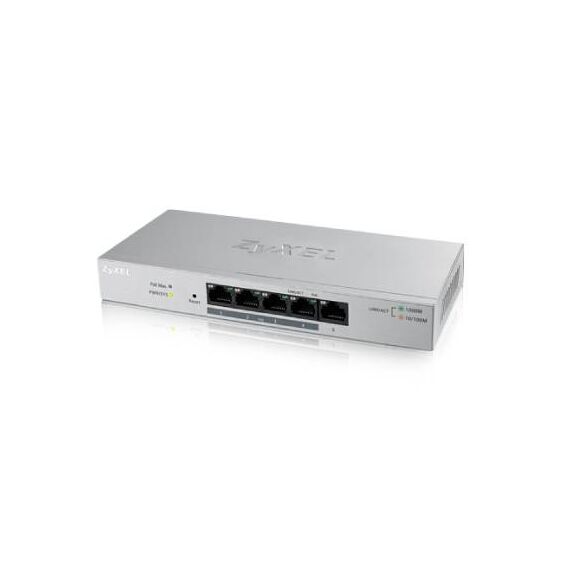

Zyxel GS1200-5HP / Switch / Managed / 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) / desktop / PoE+ (60 W) | GS1200-5HP-EU0101F

Zyxel GS1200-5HP / Switch / Managed / 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) / desktop / PoE+ (60 W) | GS1200-5HP-EU0101F
Description The ZyXEL GS1200 series Web Managed PoE Gigabit Switch is more than just a typical PoE switch. It comes with an easy-to-use Web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management.The simple control functions include dividing a network into one or more smaller groups for security and resource planning. The ZyXEL GS1200 series' configurable QoS feature also enables better traffic management.The ZyXEL GS1200 series optimizes media traffic delivery by supporting IGMP Snooping v1/v2 and v3 which is compatible with configurable IGMP router port selection.The ZyXEL GS1200 series is firmware-upgradable for better support, and configuration can be backed up and restored to the system as well. Zyxel GS1200-5HP / Switch / Managed | GS1200-5HP-EU0101FSpecial Features
Product features
|
Product Specification
Device Type | Switch - 5 ports - Managed |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 60 W |
Performance | Switching capacity: 10 Gbps |
Capacity | Layer 2 multicast groups: 20 |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 9KB |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Remote Management Protocol | HTTP |
Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, firmware upgradable, Quality of Service (QoS), 128KB packet buffer, Energy Efficient Ethernet, Class of Service (CoS), tagged VLAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
Status Indicators | Power, PoE |
Interfaces | 4 x 1000Base-TX - RJ-45 - PoE+ - 30 W ¦ 1 x 1000Base-TX - RJ-45 |
Power Device | External power adapter |
Power Consumption Operational | 72 Watt |
Compliant Standards | C-Tick, FCC, RoHS, EN 60950-1, LVD, EMC Class A |
Localisation | Europe |
Width | 19.3 cm |
Depth | 8.4 cm |
Height | 2.6 cm |
Weight | 400 g |
Service & Support | Limited warranty - 5 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 - 90% (non-condensing) |
Features - Zyxel - GS1200-5HPV2-EU0101F
