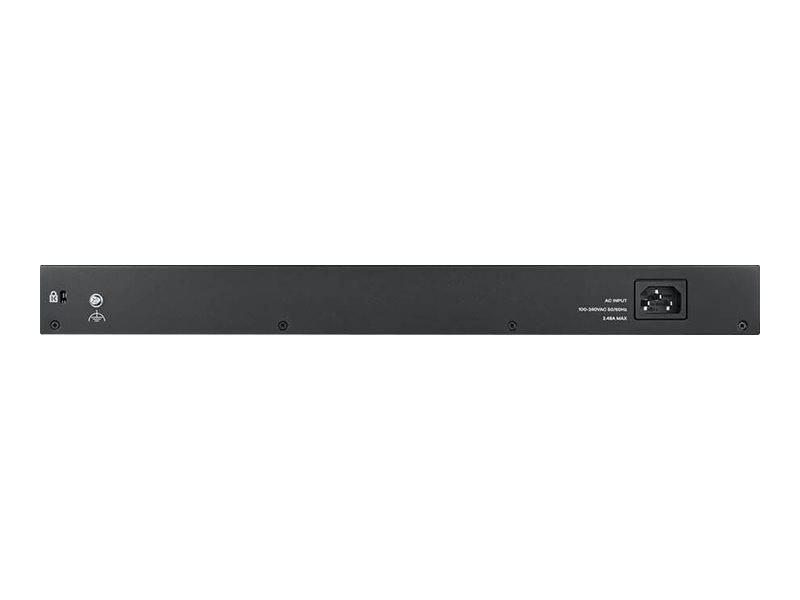

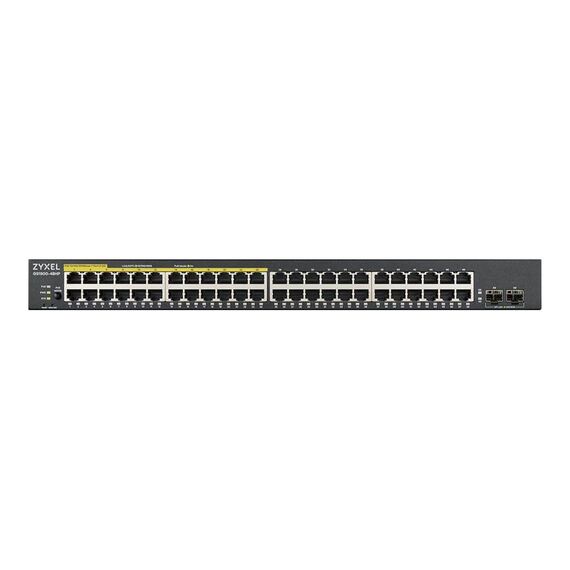

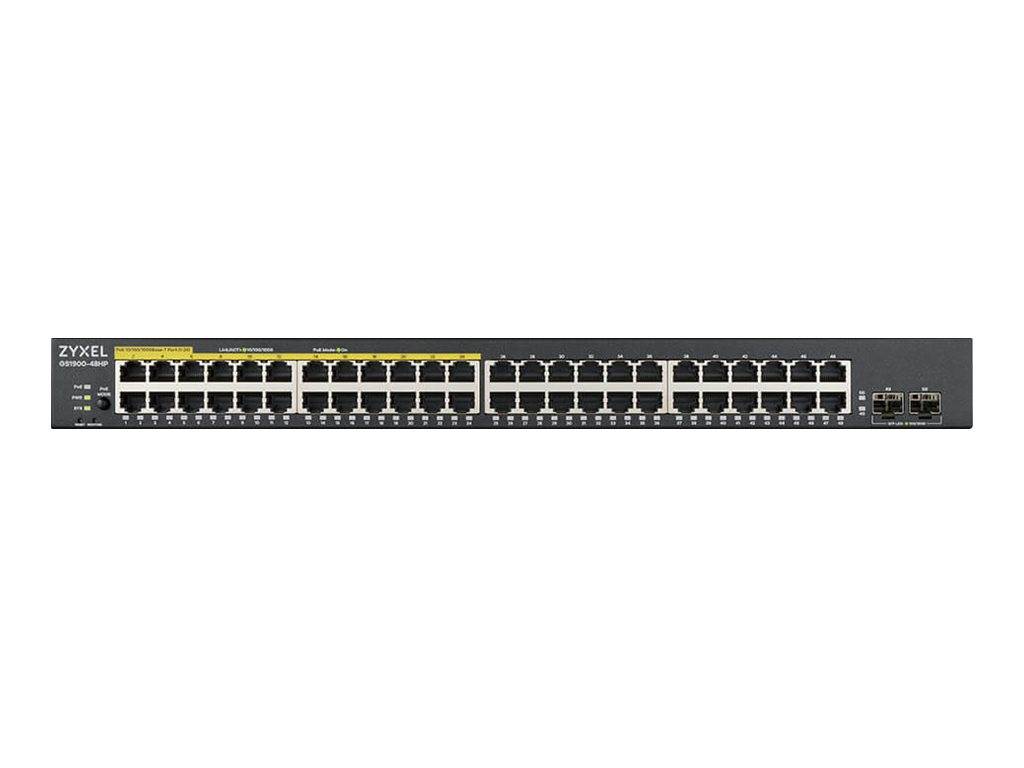

Zyxel GS1900 Series GS1900-48HPv2 / Switch / smart / 48 x 10/100/1000 (24 PoE+) + 2 x Gigabit SFP (uplink) / desktop, rack-mountable / PoE+ (170 W) | GS190048HPV2-EU0101F

Product Features
- Avoid downtime and maximize throughput with Advanced Network Error prevention
Loop protection and storm control keep your network running at top speed while dual image firmware and Dos detection ensure robust, high availability connectivity. - Quick and easy deployment with web management and set-up wizards
Even complex configurations take no more than a few clicks and a matter of minutes, saving time and resources while accelerating deployment. - Designed for any location; server room, board room or desk
Silent, fanless operation plus flexible desk, wall or rack mounting options make this the ideal solution for use throughout your organization. - High-powered, intelligent PoE to protect your investment
With PoE+ the rising power demand of powered devices is met. Additionally each PoE port automatically reserves only the power it needs with programmable feed priority. This ensures the maximum number of devices can be powered, protecting your ROI. - Gigabit to the desktop
When videos of high resolution and data flow constantly evolve, GbE bandwidth to desktops becomes essential to ensure sufficient bandwidth for all business communications, data delivery and daily operations. - Reduce your energy bills and carbon footprint
Inactive link detection, cable length detection and EEE compliant traffic detection all minimize power usage by matching power consumption to true demand. - Future-proof your investment with IPv6 support
Full IPv6 support with features including autoconfiguration, duplicate address prevention, dual-stack and neighbor discovery will ensure your investment is protected. - Find your perfect solution with flexible chassis options
From 8 ports to 48 ports with gigabit SFP uplink options and Intelligent PoE available on 8, 24 and 48 port models, the GS1900 range will include the perfect switch for your application. - High level security to safeguard your network
A host of security features including RADIUS and TACACS+ support, SSL, port security, static MAC forwarding and layer 2 MAC filtering, will ensure maximum protection for your network. - Stream real-time voice and video without a glitch
Extensive QoS and CoS features such as 802.1Q VLAN tagging, Voice VLAN, input priority mapping, 802.1p Class of Service and IP TOS precedence will ensure realtime service for even the most demanding applications.
Special Features
- Avoid downtime and maximize throughput with Advanced Network Error prevention
- Quick and easy deployment with web management and set-up wizards
- Designed for any location; server room, board room or desk
- High-powered, intelligent PoE to protect your investment
- Gigabit to the desktop
- Reduce your energy bills and carbon footprint
- Future-proof your investment with IPv6 support
- Find your perfect solution with flexible chassis options
- High level security to safeguard your network
- Stream real-time voice and video without a glitch
Product Specification
Device Type | Switch - 48 ports - smart |
Enclosure Type | Desktop, rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (24 PoE+) + 2 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 170 W |
Performance | Switching capacity: 100 Gbps ¦ Forwarding performance: 74 Mpps |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9KB |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | RADIUS, TACACS+ |
Features | Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), LLDP support, Port Security, DHCP client, dual firmware images, Ring Rapid Spanning Tree Protocol (RRSTP), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), security lock slot (cable lock sold separately), 525KB packet buffer, Type of Service (ToS), Storm Control, Back Pressure Support, Internet Control Message Protocol (ICMP), Management Information Base (MIB) II, rate limit, schedule PoE, Voice VLAN, LLDP-MED, Guest VLAN, Energy-Efficient Ethernet (EEE), VLAN Tagging, priority mapping, Link Aggregation Group (LAG), Smart Fan |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Built-in Devices | Led panel |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 24 x 1000Base-T RJ-45 ¦ 24 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP uplink |
Power | Power |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |
Miscellaneous | Miscellaneous |
Rack Mounting Kit | Included |
MTBF | 612,215 hours |
Compliant Standards | FCC Class B certified, C-Tick Class B, RoHS, EN 60950-1, BSMI CNS 13438, LVD, CNS 14336-1 |
Dimensions & Weight | Dimensions & Weight |
Width | 44.1 cm |
Depth | 27 cm |
Height | 4.4 cm |
Weight | 3.55 kg |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 62.2 cm |
Shipping Depth | 35.8 cm |
Shipping Height | 10.8 cm |
Shipping Weight | 5.04 kg |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 95% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 - 95% (non-condensing) |
