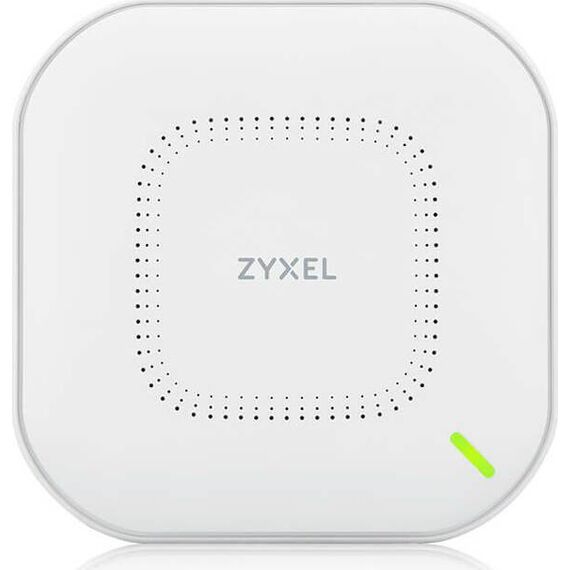

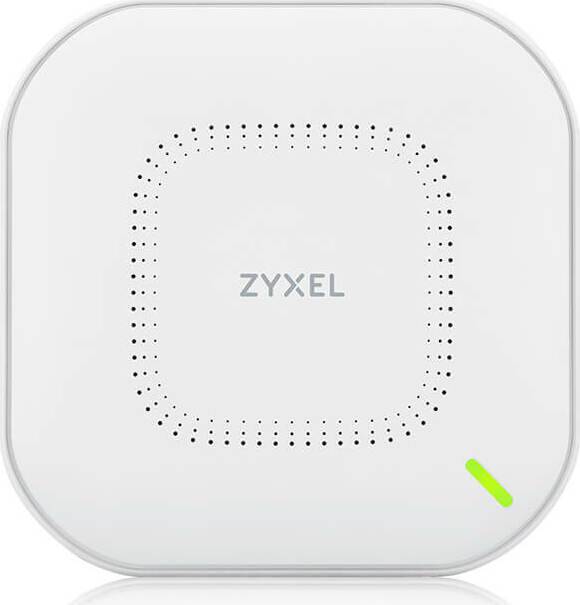

Zyxel NWA110AX / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / cloud-managed | NWA110AX-EU0202F
Please sign in so that we can notify you about a reply
Product Features
- Built for superior performance
The NWA110AX boasts an impressive quad-core processor to provide consistently smooth delivery to wireless clients. The NWA110AX is also built with premium power amplifiers and 4G/5G interface filters to deliver superior quality of service that make it one of the best in its class. - Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that Wi-Fi 6 has to offer without the need to upgrade existing PoE+ switches - Manage it your way
As it comes with support for NebulaFlex, Zyxel's scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
Special Features
- Built for superior performance
- Simpler upgrade path
- Manage it your way
Product Specification
| Device Type | Radio access point |
| Width | 18 cm |
| Depth | 18 cm |
| Height | 3.9 cm |
| Weight | 453 g |
| Localisation | Europe |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | IPv6 |
| Remote Management Protocol | SNMP, CLI |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (2.4 GHz): 1200 Mbps |
| Status Indicators | Status |
| Features | Load balancing, VLAN support, DiffServ support, MAC address filtering, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, ZyXEL Wireless Optimizer (ZWO), Unscheduled Automatic Power Save Delivery (U-APSD), Fast Roaming, Dynamic Channel Selection (DCS), 2x2 MU-MIMO technology, Wireless Mesh support, ZON Utility, L2-isolation, Nebula Cloud Managed Mode |
| Encryption Algorithm | WPA2-PSK, WEP, WPA3 |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | Internal |
| Expansion / Connectivity | Expansion / Connectivity |

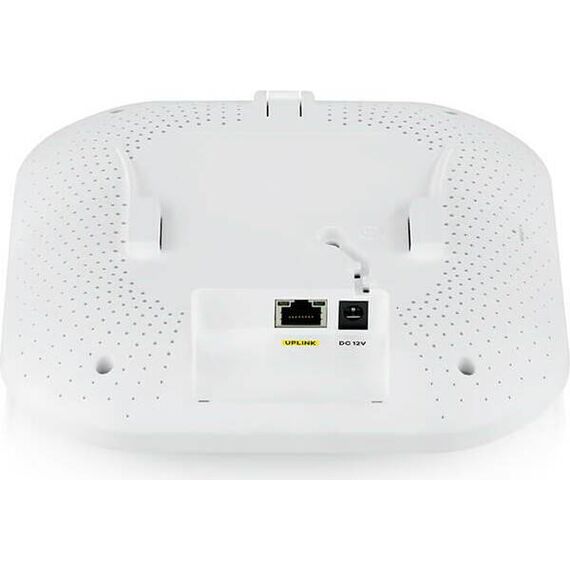

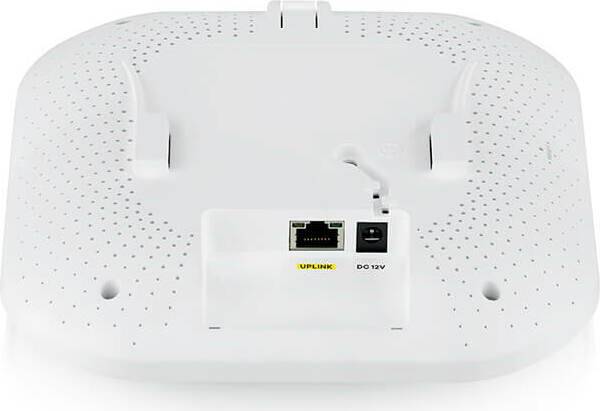

| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 - 17 W |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting screws, mounting plate |
| MTBF | 635,837 hour(s) |
| Compliant Standards | ETSI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 22.9 cm |
| Shipping Depth | 21.6 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 770 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - Zyxel - NWA110AX-EU0202F
More Details
Product Code
04:417248
EAN Code
4718937630806
Manufacturer
Zyxel
