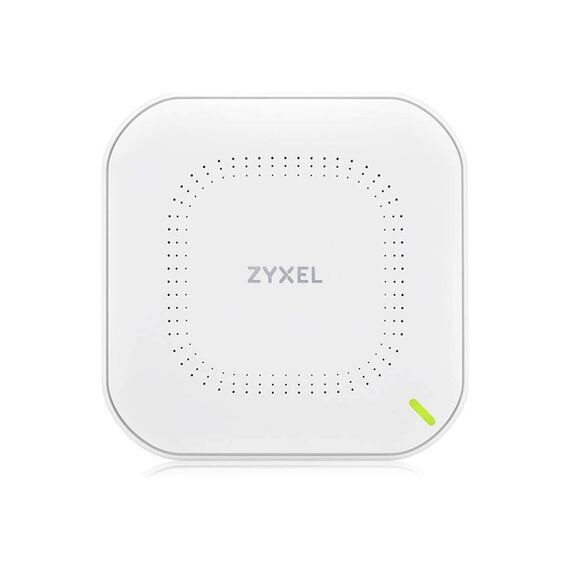

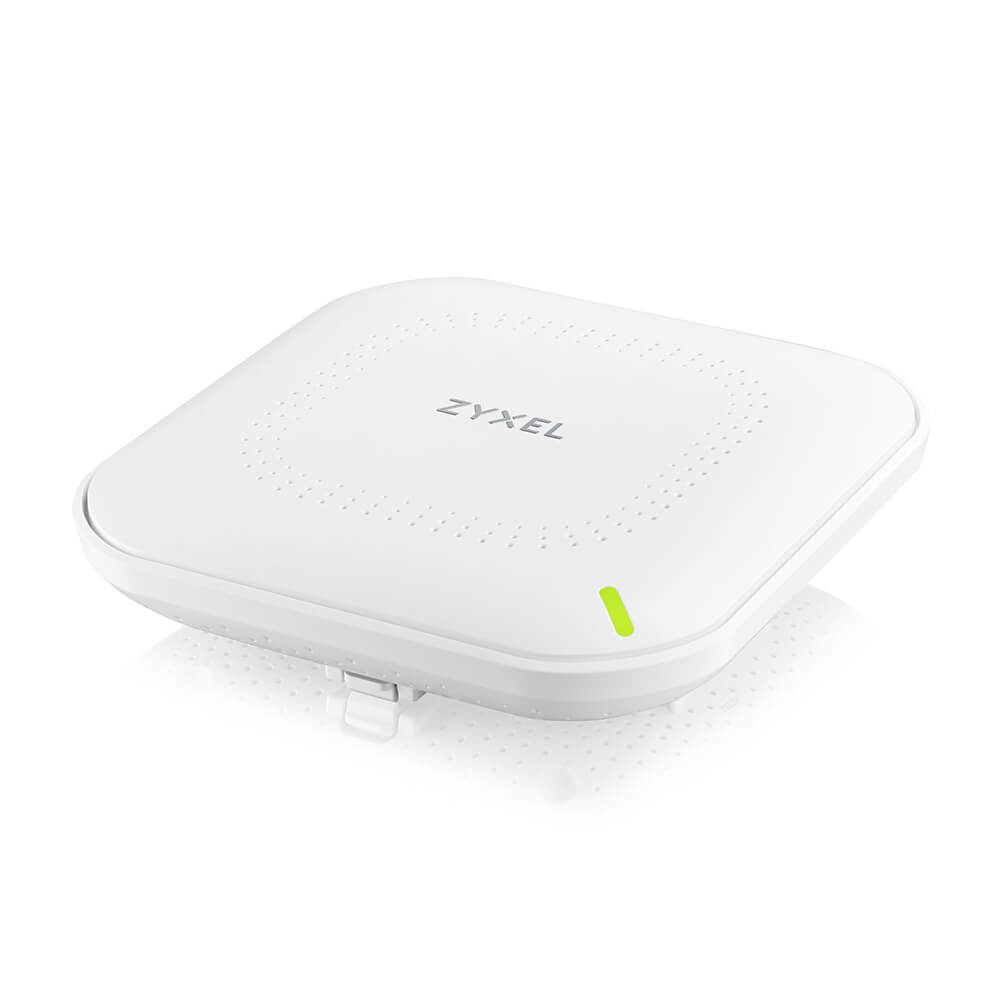

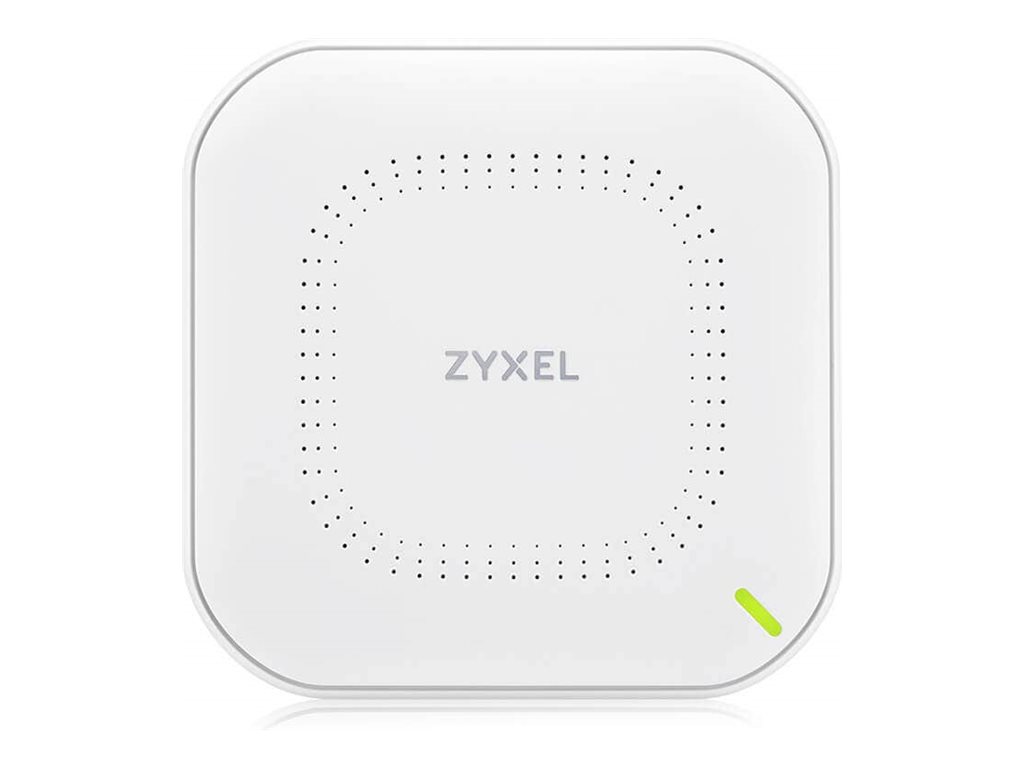

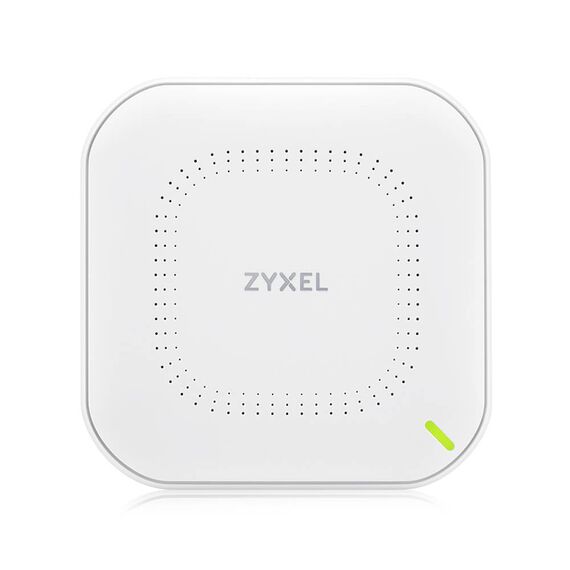

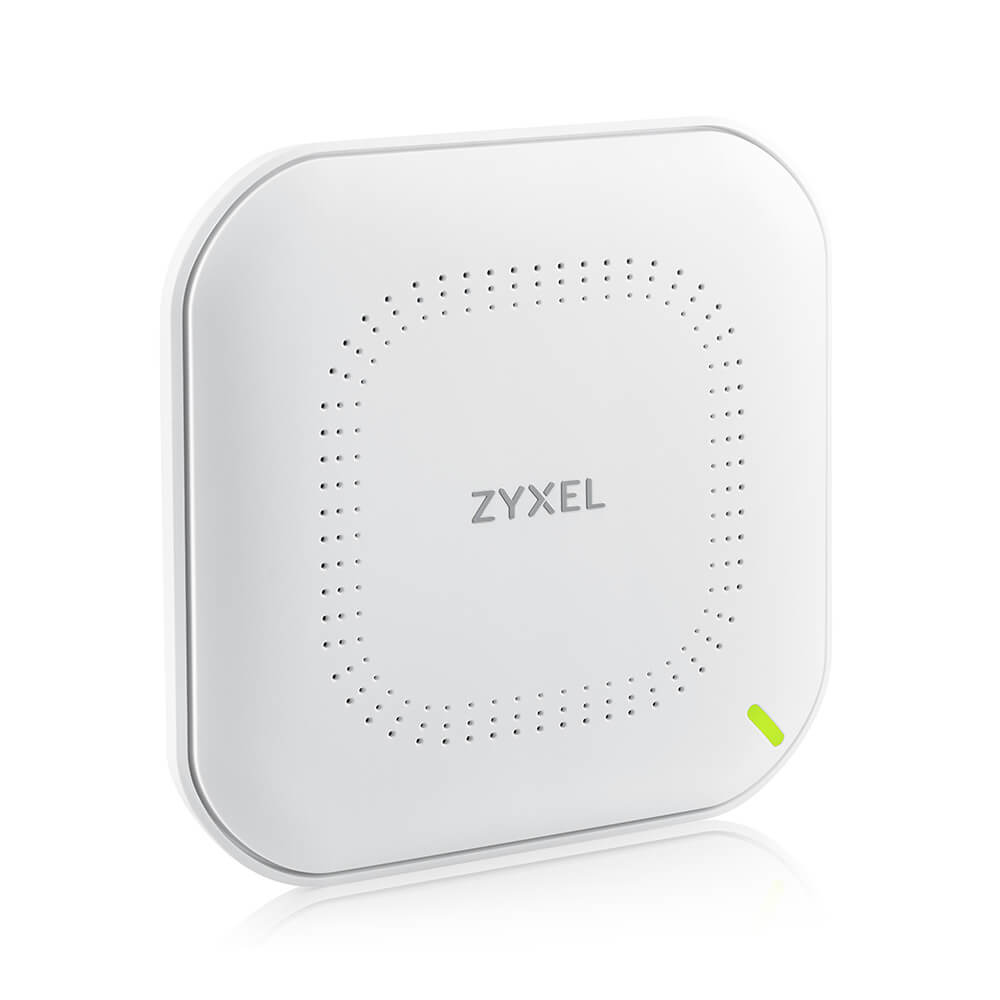

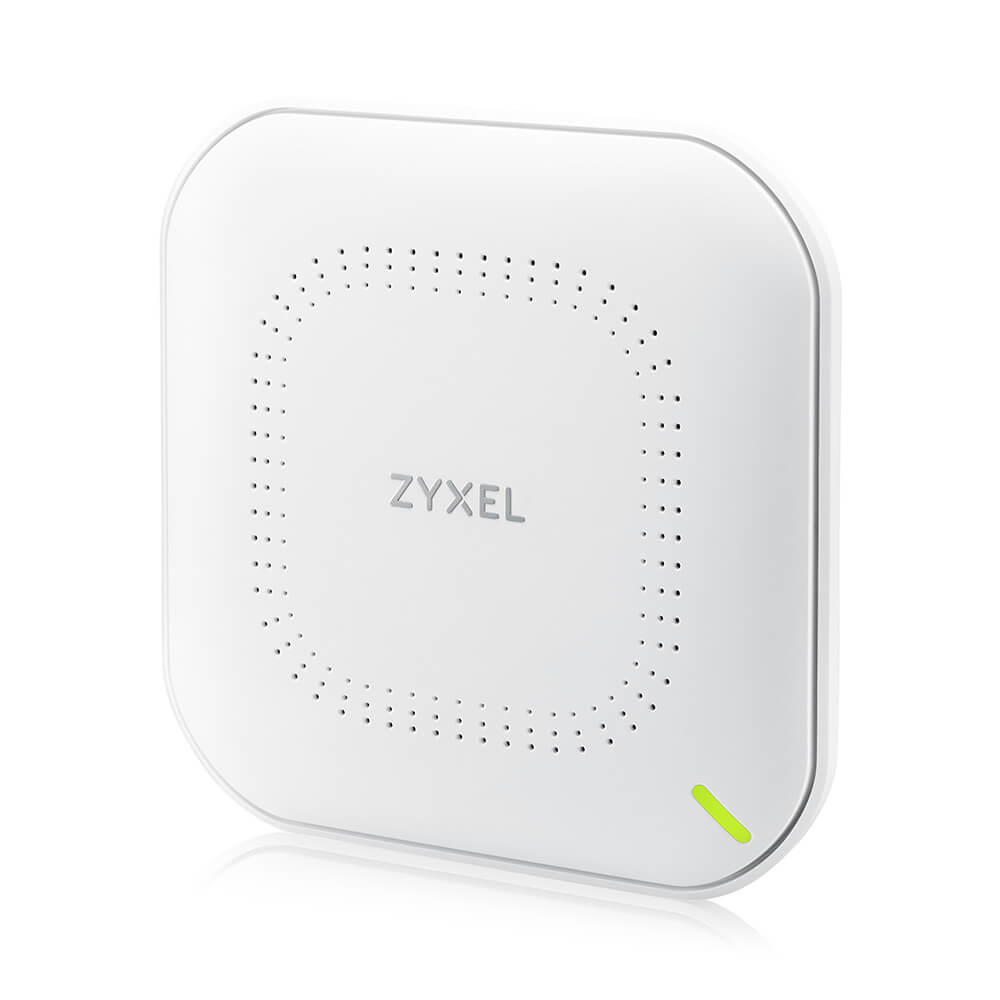

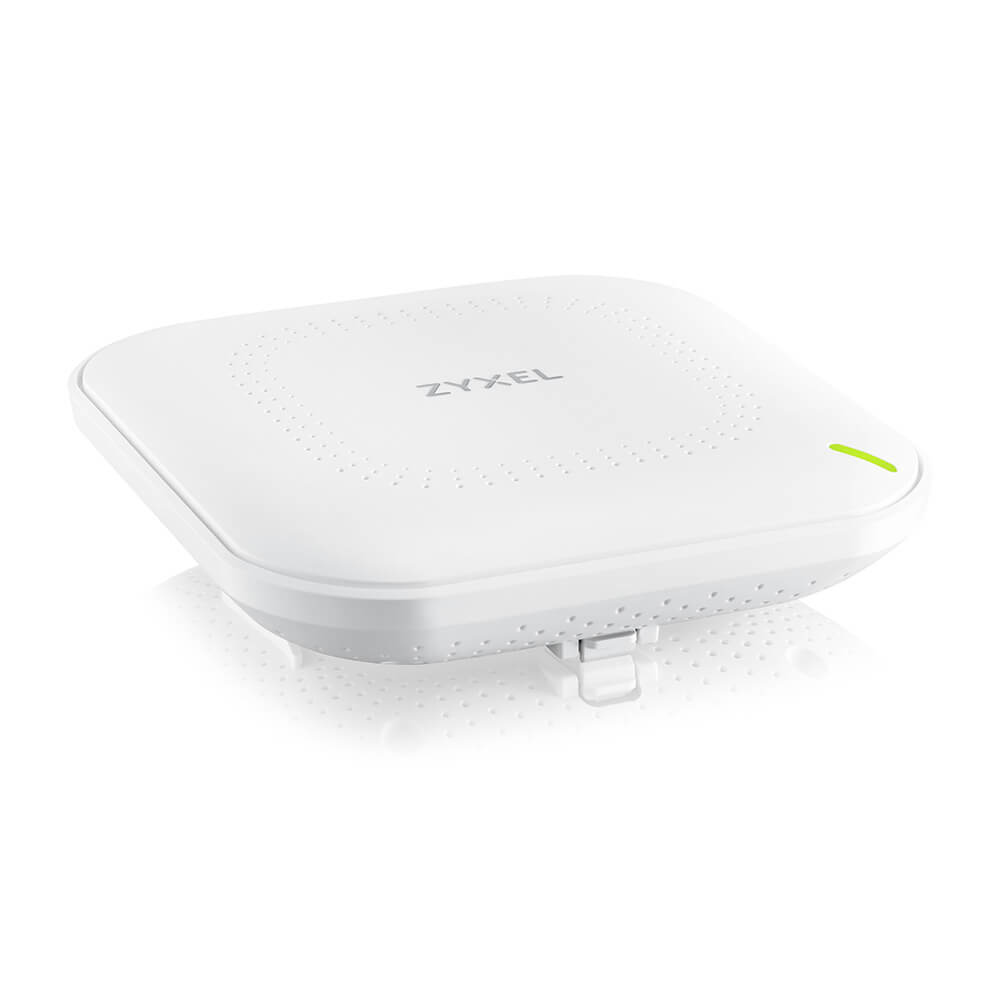

Zyxel NWA90AX Pro - Radio access point - 2.5G PoE uplink, 3x3 + 2x2 MU-MIMO aerial, AX3000 Multi-gig, NebulaFlex Cloud - Wi-Fi 6 - 2.4 GHz, 5 GHz | NWA90AXPRO-EU0102F
Product Features
- Multi-gig Wi-Fi 6 access point for small businesses
Offering AX3000 Wi-Fi speeds with a 2.5G Ethernet uplink port, the Zyxel NWA90AX Pro delivers powerful and faster Wi-Fi 6 speeds for small businesses, SoHo and home offices. Small business owners looking for an affordable Wi-Fi 6 access point with multi-gig connectivity, the Zyxel NWA90AX Pro is undoubtedly the ideal choice for them to support more connected devices and applications at the fastest speeds. - Boost your Wi-Fi performance
To better take advantage of faster speeds in the 5 GHz band, the Zyxel NWA90AX Pro features 3x high-gain antennas to boost Wi-Fi signals and extend coverage, especially to previously hard-to-reach areas. In addition to boosting Wi-Fi signals, the NWA90AX Pro is also equipped with high-quality multi-gig Ethernet connections. Because it can run on regular Cat 5e cabling, the 2.5G uplink port breaks the 1.0G bottleneck without the need for rewiring, making it easy to create an affordable high-speed network environment for a business or home. - Secure authentication to protect business networks
With captive portal support and IEEE802.1x authentication, the NWA90AX Pro not only offers small business users enterprise-level security to protect their networks, but also the flexibility to customize wireless usage logging for marketing and business recognition. - Configure your wireless network in minutes
No networking expertise required - the NWA90AX Pro is designed to be easily configured and installed in places such as small hotels, retail stores, restaurants and home offices. - Easy deployment with Zyxel's Smart Mesh
Zyxel's Smart Mesh technology automatically creates dynamic wireless connections between access points and alleviates complicated, awkward cabling when deploying Wi-Fi. Smart Mesh technology can save you from additional cabling by enabling wireless connectivity between access points for extended coverage and flexible deployment.
Special Fetures
- Multi-gig Wi-Fi access point 6 for small businesses
- Boost your Wi-Fi performance
- Secure authentication to protect your business networks
- Configure your wireless network in minutes
- Easy deployment with Zyxel's Smart Mesh
Product Specification
Device Type | Radio access point |
Width | 14 cm |
Depth | 14 cm |
Height | 3.75 cm |
Weight | 352 g |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 3 Gbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 2.4 Gbps ¦ Maximum data rate (2.4 GHz): 575 Mbps |
Wi-Fi Rating | AX3000 |
Features | VLAN support, MAC address filtering, IPv6 support, Wi-Fi Multimedia (WMM) support, Advanced Cellular Coexistence (ACC), MU-MIMO technology, Unscheduled Automatic Power Save Delivery (U-APSD), Pre-Authentication, band steering, Fast Roaming, PMK Caching, Dynamic Channel Selection (DCS), 3x3 MIMO technology, NebulaFlex Pro support, ZON Utility, L2-isolation, rogue AP detection, Nebula Cloud Managed Mode, 2x2 MIMO 2.4Ghz, WDS/Mesh |
Encryption Algorithm | WPA, WPA2-PSK, WPA2-Enterprise, WEP, WPA3 |
Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax |
Aerial | |
Antenna | Internal |
Expansion / Connectivity | |

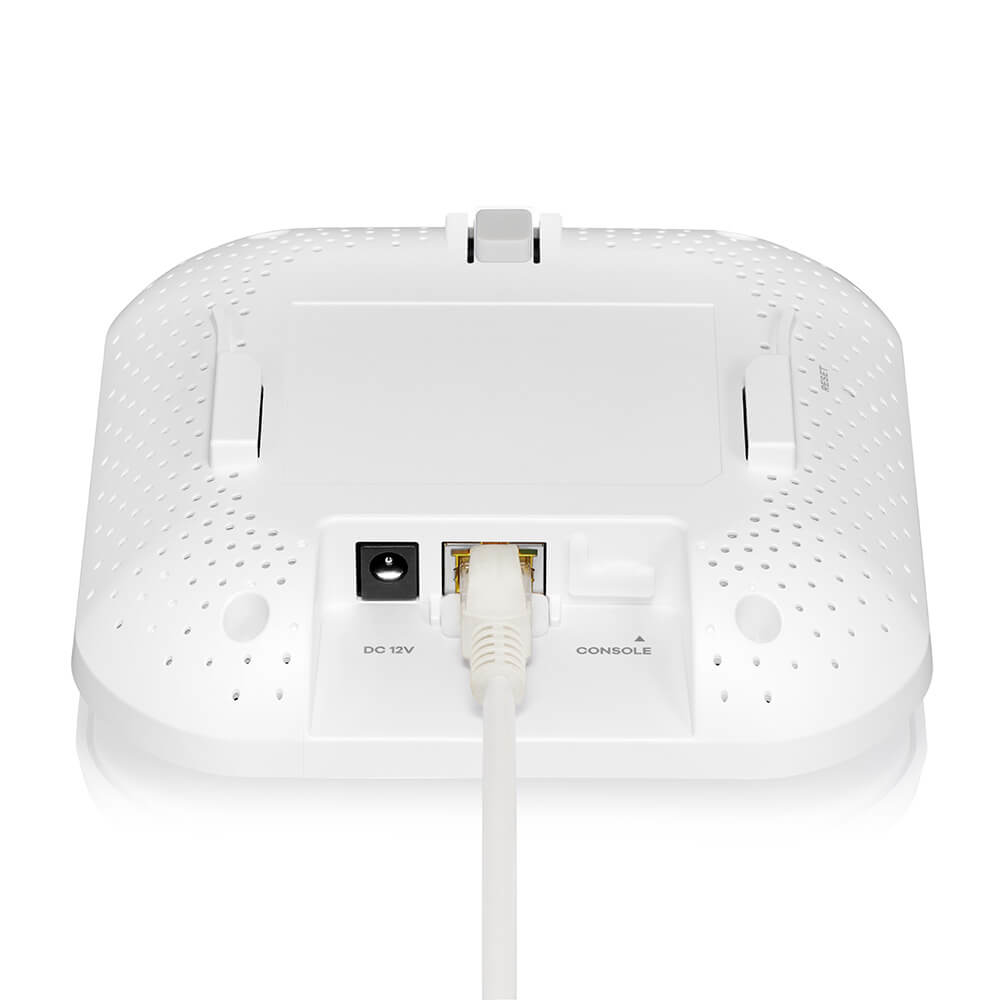

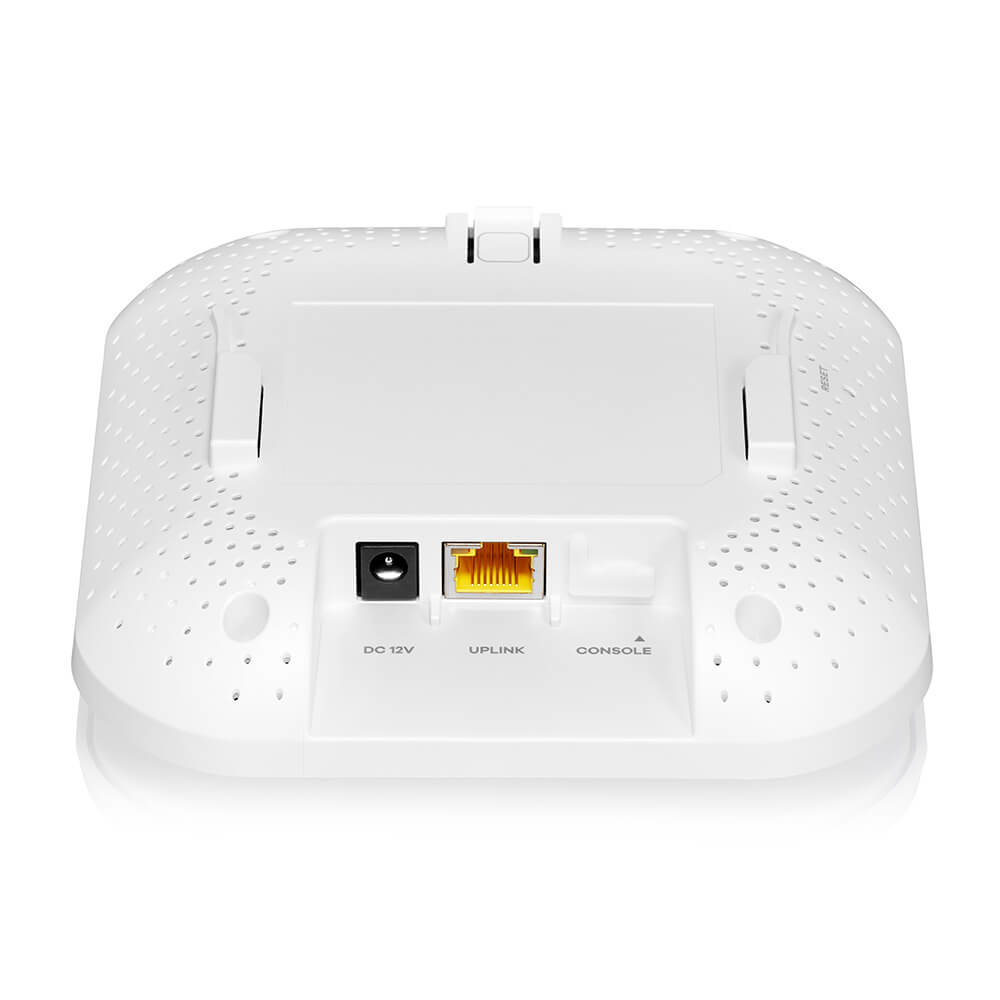

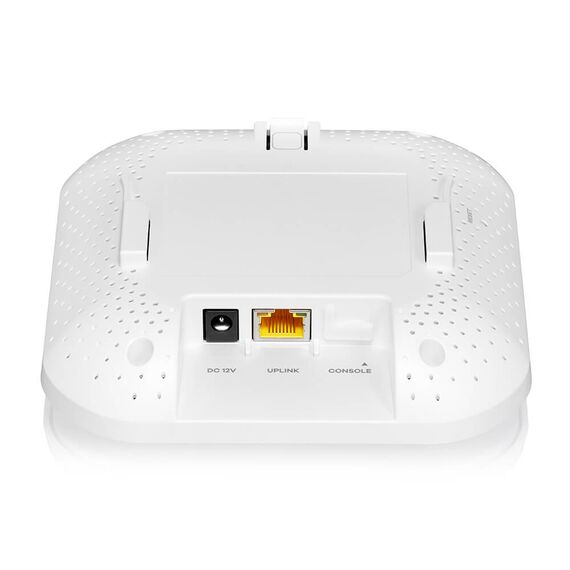

Interfaces | 1 x 2.5 GBase-T (PoE) - RJ-45 |
Miscellaneous | |
Included Accessories | Mounting screws, mounting plate |
MTBF | 420,539 hour(s) |
Compliant Standards | EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17 |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Dimensions & Weight (Shipping) | |
Shipping Width | 15.5 cm |
Shipping Depth | 24 cm |
Shipping Height | 6 cm |
Shipping Weight | 668 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
