Zyxel WAX510D / Radio access point / 802.11ac Wave 2, 802.11ax / Wi-Fi / 2.4 GHz, 5 GHz | WAX510D-EU0101F
Zyxel WAX510D / Radio access point / 802.11ac Wave 2, 802.11ax / Wi-Fi / 2.4 GHz, 5 GHz / DC power | WAX510D-EU0101F
Description
The WAX510D is truly the next generation of wireless (Wi-Fi 6) AP, especially for businesses looking to strike the right balance between performance and budget. Its built-in 2nd Generation Wi-Fi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of Wi-Fi 6 technologies including uplink OFDMA and MU-MIMO, which can't be found in the earlier releases of 802.11ax products. The WAX510D boasts an impressive quad-core processor with 2 network accumulators to guarantee that a smooth and consistently fast service is provided to each client at all times.

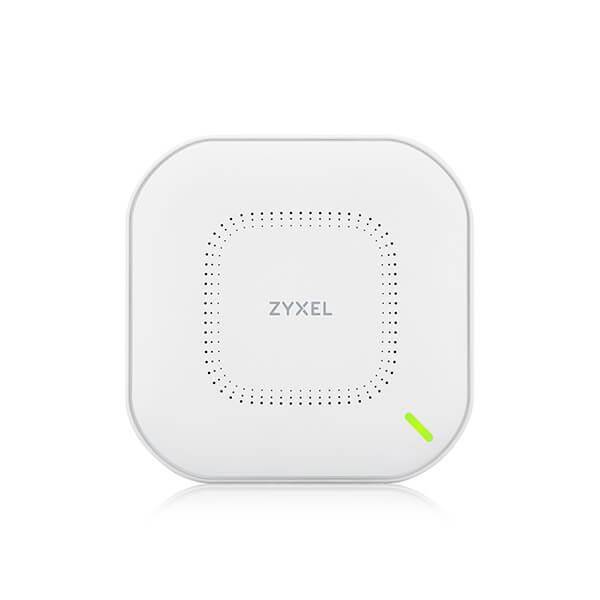

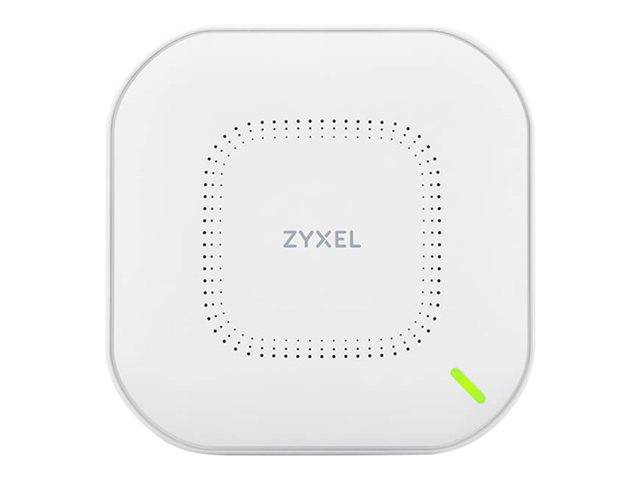

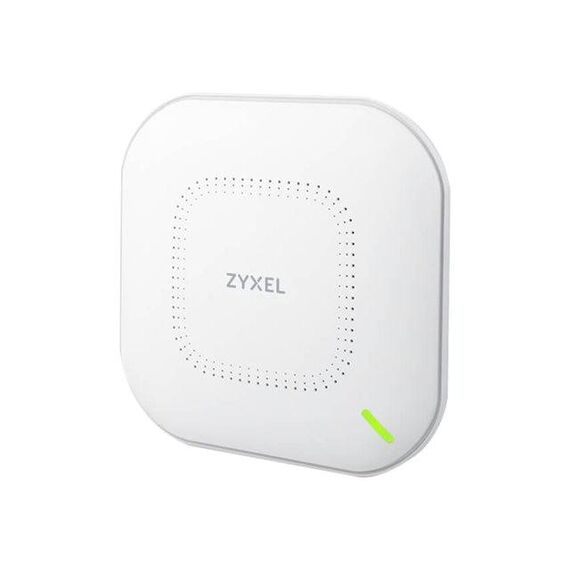

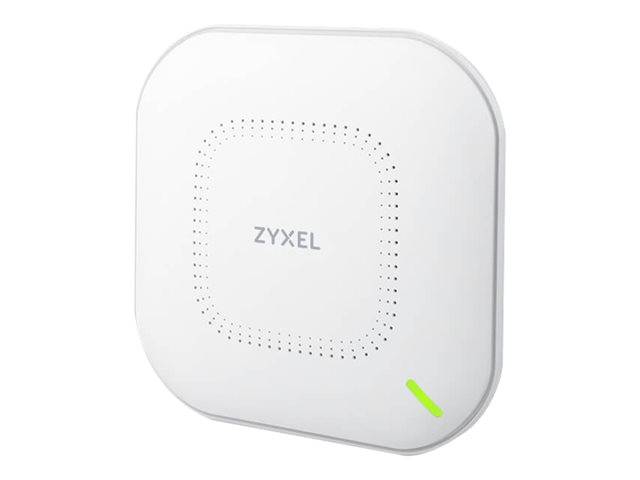

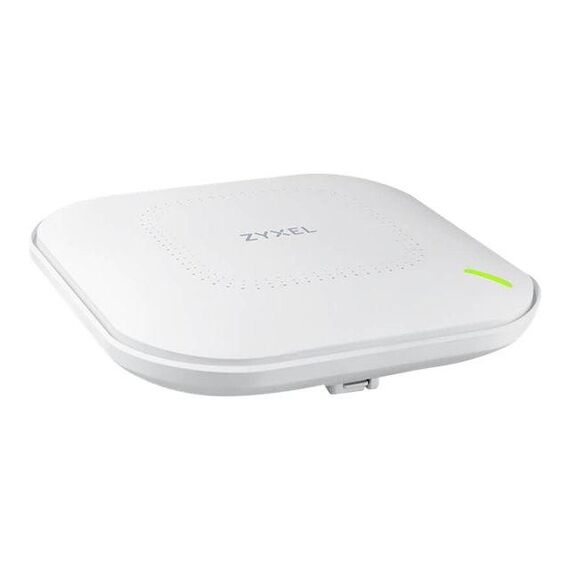

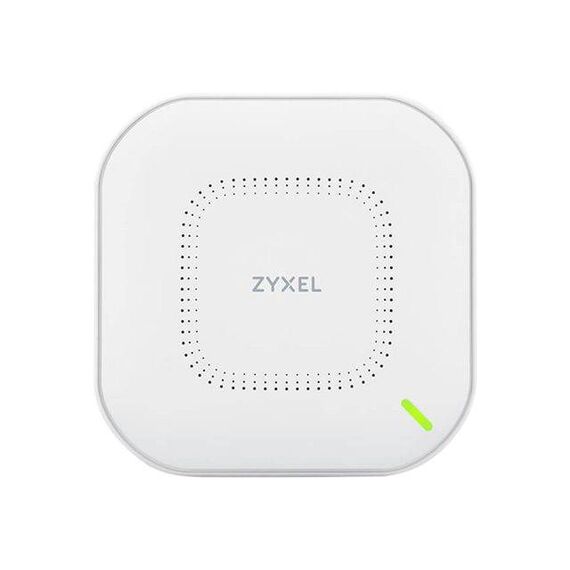

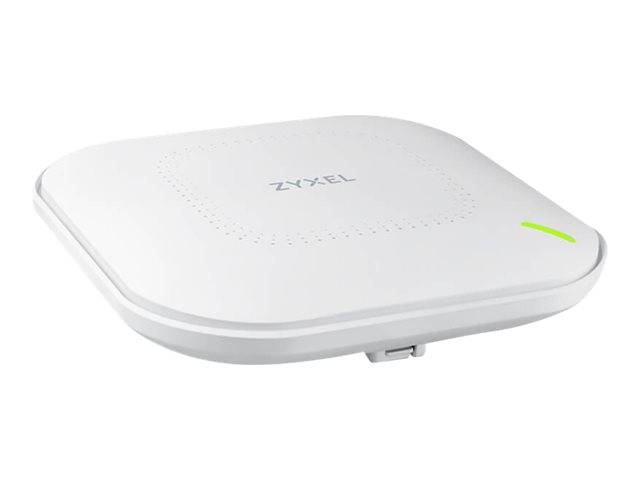

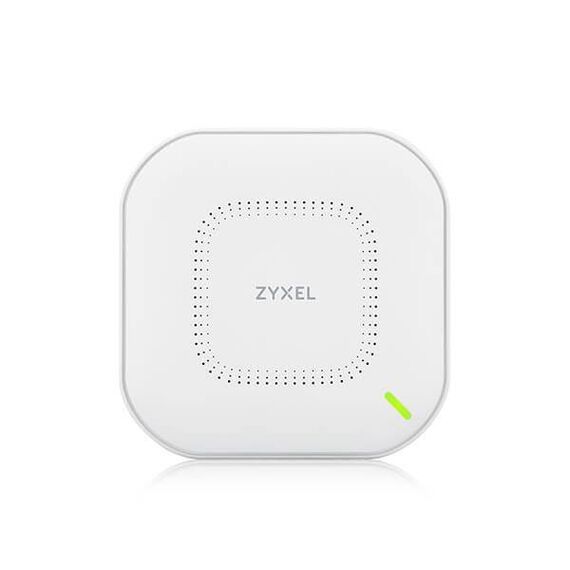

Zyxel WAX510D Radio AP 2.4 GHz, 5 GHz
Special Features
- An access point that fits your need
- The smartest choice
- Manage it your way
Product features
- An access point that fits your need
The WAX510D is equipped with a dual-optimized antenna that is selectable, allowing the access point to be mounted on the wall or on the ceiling without compromising on performance and coverage. - The smartest choice
The WAX510D is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also it's efficient on power. The WAX510D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the latest Wi-Fi 6 technology offering without the need to invest in upgrading your traditional switching architecture. - Manage it your way
As it comes with support for NebulaFlex Pro, Zyxel's scalable, cloud-based management system, the WAX510D can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.
Product Specification
Device Type | Radio access point |
Width | 18 cm |
Depth | 18 cm |
Height | 3.9 cm |
Weight | 453 g |
Localisation | Europe |
Form Factor | External |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax |
Remote Management Protocol | SNMP, CLI |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Status |
Features | Load balancing, VLAN support, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, cloud managed, DiffServ Code Point (DSCP) support, Unscheduled Automatic Power Save Delivery (U-APSD), Pre-Authentication, band steering, dual band, PMK Caching, Dynamic Channel Selection (DCS), SmartMesh, Orthogonal Frequency Division Multiple Access (OFDMA) |
Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA3 |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ax |
Antenna | Internal |

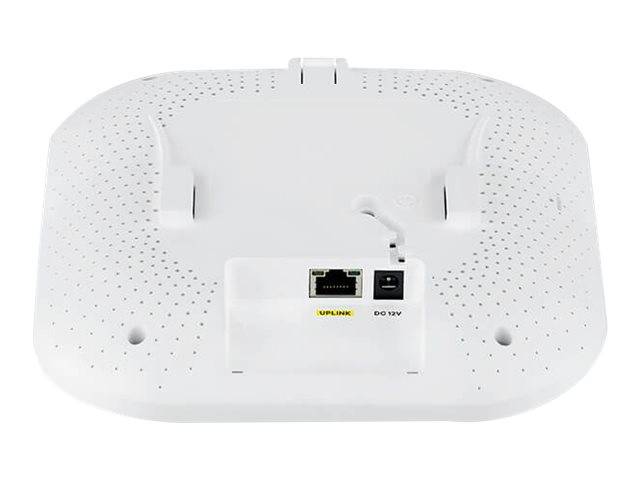

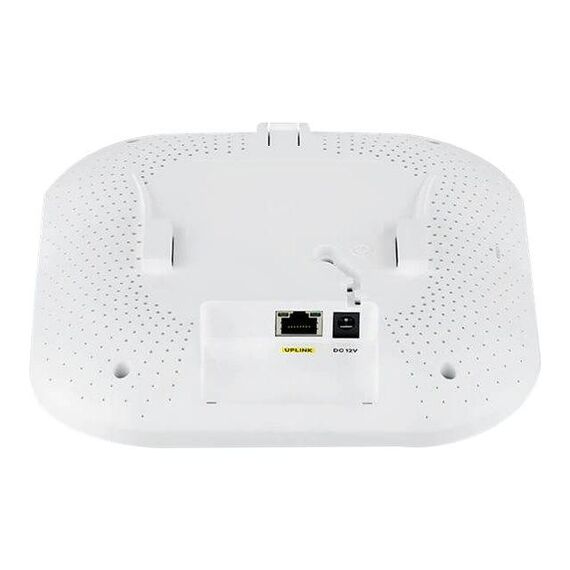

Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
Included Accessories | Mounting screws, mounting plate |
MTBF | 635,837 hour(s) |
Compliant Standards | EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, FCC Part 15 Class C, IEEE 802.3at, EN 301 489-17 |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Voltage Required | DC 12 V / PoE |
Power Consumption Operational | 17 Watt |
Shipping Width | 22.9 cm |
Shipping Depth | 21.6 cm |
Shipping Height | 6.4 cm |
Shipping Weight | 770 g |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 95% (non-condensing) |
