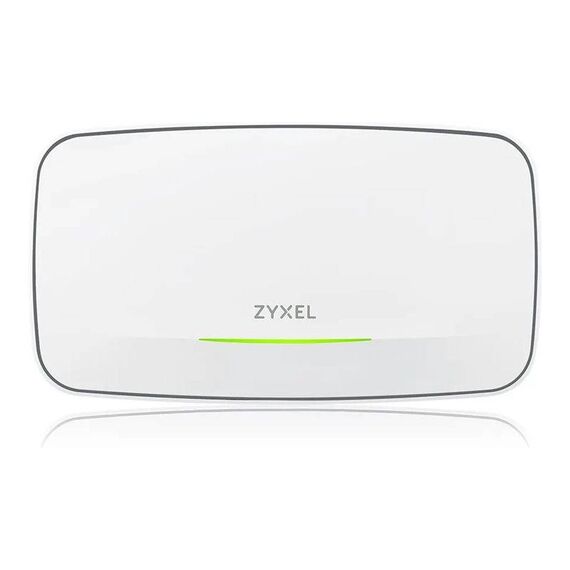

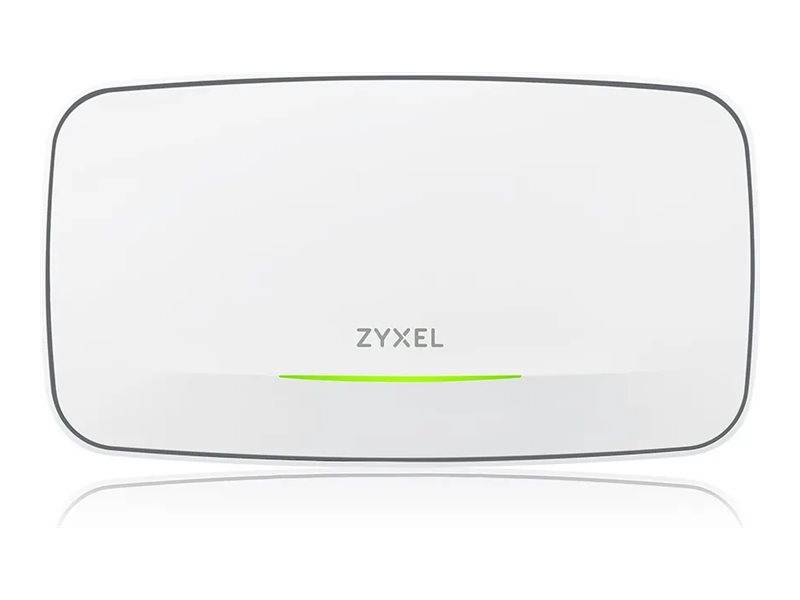

Zyxel WAX640S-6E / Radio access point / Wi-Fi 6 / Wi-Fi 6E / 2.4 GHz, 5 GHz, 6 GHz / cloud-managed | WAX640S-6E-EU0101F
Please sign in so that we can notify you about a reply
Product Features
- Wi-Fi 6E - the fast speed
The WAX640S-6E includes all the benefits of Wi-Fi 6 capabilities and brings them into the interference-free 6GHz that more than doubles the Wi-Fi capacity to deliver ultra-fast Wi-Fi 6E speeds, and low-latency connections. - Zyxel 6E boost
The high-gain 4x4 streams in 6GHz design helps increase the maximum gains in transmit beamforming and receive MIMO to extend range and maximize the performance of the new band. - Optimal Wi-Fi performance
The built-in smart antenna technology mitigates co-channel interference, continuously monitors the connection and adaptively adjusts its antenna patterns to ensure that the optimum performance is delivered to every connection. - Interference-free connections
There is only 50 MHz between 5GHz and 6GHz, advanced filtering is crucial to prevent interference. The advanced RF filter is adopted to remove interference and guarantee performance in all channels in either band concurrently. - Say goodbye to Wi-Fi congestion
The 6GHz band is the best solution to alleviate congestion in the existing bands. Zyxel 6E Boost with high-gain 4 streams in 6GHz to effectively help extend range and ensure maximum performance for SB/SMB networks. - Manage it your way
The WAX640S-6E with NebulaFlex Pro offers the flexible manageability for you to freely choose between the device's local web management, WLAN controller, or onboarding to the super easy Nebula cloud which empowers you to manage your network anytime, anywhere.
Special Features
- Tri-band coverage, 2.4 GHz, 5 GHz, and 6 GHz (2x2 + 2x2 + 4x4) 802.11axe AP to deliver maximum data rate of 7.8 Gbps
- Zyxel 6E boost with high-gain 4 streams in 6GHz to extend range and maximize performance
- The smart antenna technology mitigates interference and boosts WiFi performance
- The advanced RF filter prevents interference between the 5 GHz and 6 GHz bands while guaranteeing performance in all channels
- Supports NebulaFlex Pro technology to move between device's local interface, WLAN controller, and License Free Nebula cloud management mode
Product Specification
| Device Type | Radio access point |
| Width | 27 cm |
| Depth | 15 cm |
| Height | 4.7 cm |
| Weight | 900 g |
| Localisation | Europe |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 7.8 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | IPv6 |
| Remote Management Protocol | SNMP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps ¦ Maximum data rate (6 GHz): 4800 Mbps ¦ Bandwidth: 20 / 40 / 80 / 160 MHz |
| Capacity | Spatial streams: 8 |
| Wi-Fi Rating | AXE7800 |
| Features | Load balancing, MAC address filtering, IPv6 support, Wi-Fi Multimedia (WMM) support, RADIUS support, Advanced Cellular Coexistence (ACC), SNMP support, ZyXEL wireless optimizer (ZWO), MU-MIMO technology, Unscheduled Automatic Power Save Delivery (U-APSD), band steering, Pre-Shared Key (PSK), Fast Roaming, PMK Caching, Dynamic Channel Selection (DCS), PoE powered, ZON Utility, L2-isolation, rogue AP detection, command-line interface (CLI) management, web-based UI, WDS/Mesh |
| Encryption Algorithm | WPA, WPA2, WPA2-PSK, WEP, WPA3, WPA3-Enterprise |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bt, IEEE 802.11ax |
| Aerial | Aerial |
| Antenna | Internal |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1/2.5GBase-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting screws, mounting plate |
| MTBF | 361,400 hours |
| Compliant Standards | EN55022, EN55024, FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17, EN 303 687 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 32.4 cm |
| Shipping Depth | 18.4 cm |
| Shipping Height | 7.4 cm |
| Shipping Weight | 1.22 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - Zyxel - WAX640S-6E-EU0101F
More Details
Product Code
CG07560
EAN Code
4718937625567
Manufacturer
Zyxel
