Zyxel WAX655E - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - wall / pole mountable | WAX655E-EU0101F
Product Features
- Extend Wi-Fi to crowded outdoor environments
The Zyxel WAX655E access point, is designed for congested mobile data networks and inefficient Wi-Fi. It provides multi-gigabit wireless connectivity in large open spaces such as stadiums and parking lots. Fully equipped with Wi-Fi 6 technologies, the WAX655E is able to deliver both superior performance and user satisfaction in public places. - Ideal for harsh outdoor environments
The WAX655E offers IP67-rated weather resistance and the ability to operate in extremely high or low temperatures. In addition, the WAX655E's built-in surge protection provides additional investment protection against lightning. - Extend Wi-Fi coverage with Smart Mesh
Zyxel's Smart Mesh technology not only enables dynamic wireless connections between access points to extend coverage in high-density outdoor environments, but also bridges wireless connectivity from one building to another. The WAX655E is an ideal choice for extending a wireless network into busy outdoor areas, as well as for creating a connected wireless network through external connections between buildings.
Special Fetures
- Extend Wi-Fi to crowded outdoor environments
- Ideal for harsh outdoor environments
- Extend Wi-Fi coverage with Smart Mesh
Product Specification
Device Type | Radio access point |
Ruggedized Design | Outdoor |
Width | 25.6 cm |
Depth | 25.7 cm |
Height | 7 cm |
Weight | 1.365 kg |
Localisation | Europe |
Networking | |
Form Factor | Wall / pole mountable |
Connectivity Technology | Wireless |
Data Transfer Rate | 5.4 Gbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Network / Transport Protocol | IPv6 |
Remote Management Protocol | SNMP, CLI |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 4.8 Gbps ¦ Maximum data rate (2.4 GHz): 575 Mbps |
Wi-Fi Rating | AX5400 |
Features | Load balancing, VLAN support, MAC address filtering, Wi-Fi Multimedia (WMM) support, Advanced Cellular Coexistence (ACC), MU-MIMO technology, Unscheduled Automatic Power Save Delivery (U-APSD), Pre-Authentication, band steering, Fast Roaming, PMK Caching, Dynamic Channel Selection (DCS), 2x2 MIMO technology, 4x4 MIMO technology, NebulaFlex Pro support, ZON Utility, L2-isolation, rogue AP detection, WDS/Mesh |
Encryption Algorithm | WPA, WPA2-PSK, WPA2-Enterprise, WEP, WPA3 |
Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna | External |
Antenna Qty | 6 |
Expansion / Connectivity | |

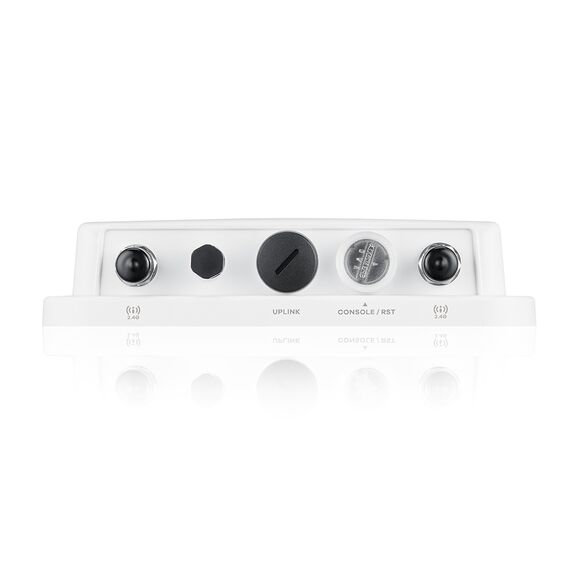

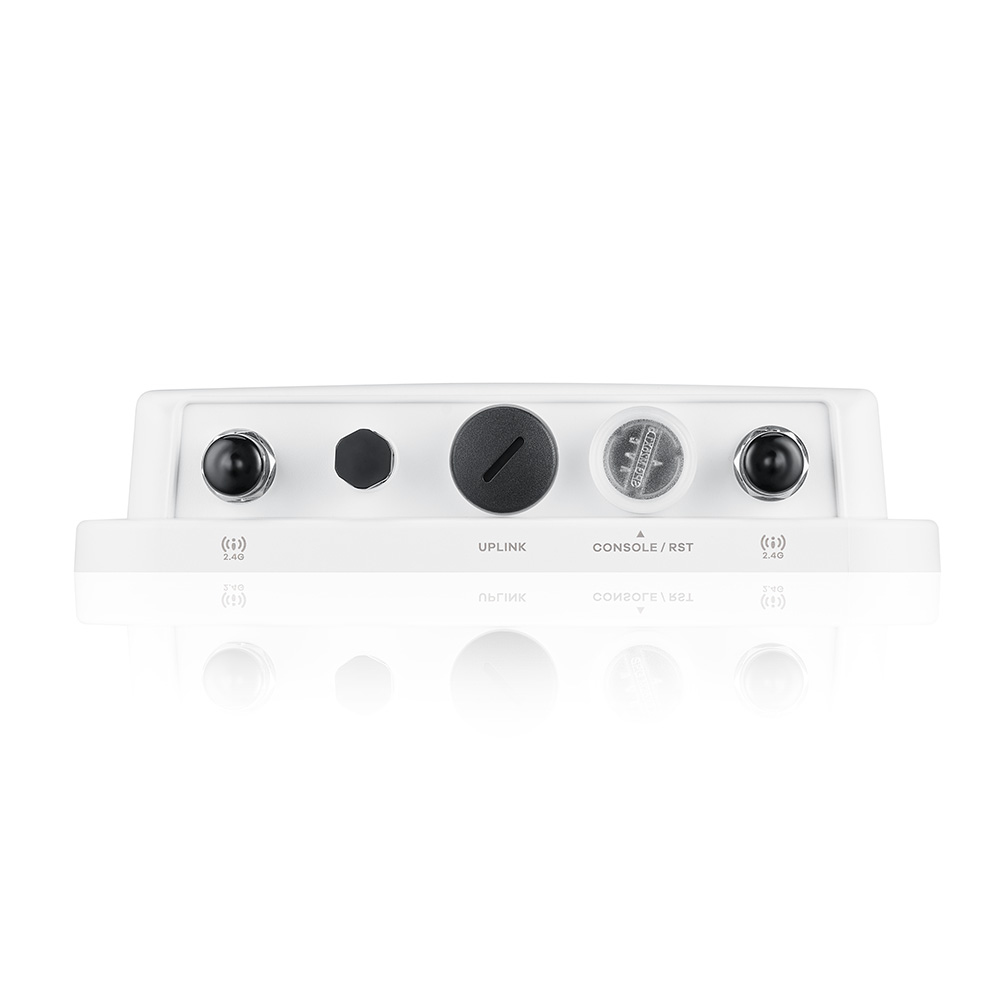

Interfaces | 6 x aerial - N connector ¦ 1 x 2.5 GBase-T (PoE) - RJ-45 |
Miscellaneous | |
Included Accessories | Pole/wall mount kit |
MTBF | 992,516 hour(s) |
Compliant Standards | EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, IP67, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17, IEEE 802.1x |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Dimensions & Weight (Shipping) | |
Shipping Width | 42.7 cm |
Shipping Depth | 28.4 cm |
Shipping Height | 11.1 cm |
Shipping Weight | 2.925 kg |
Environmental Parameters | |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 65 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
