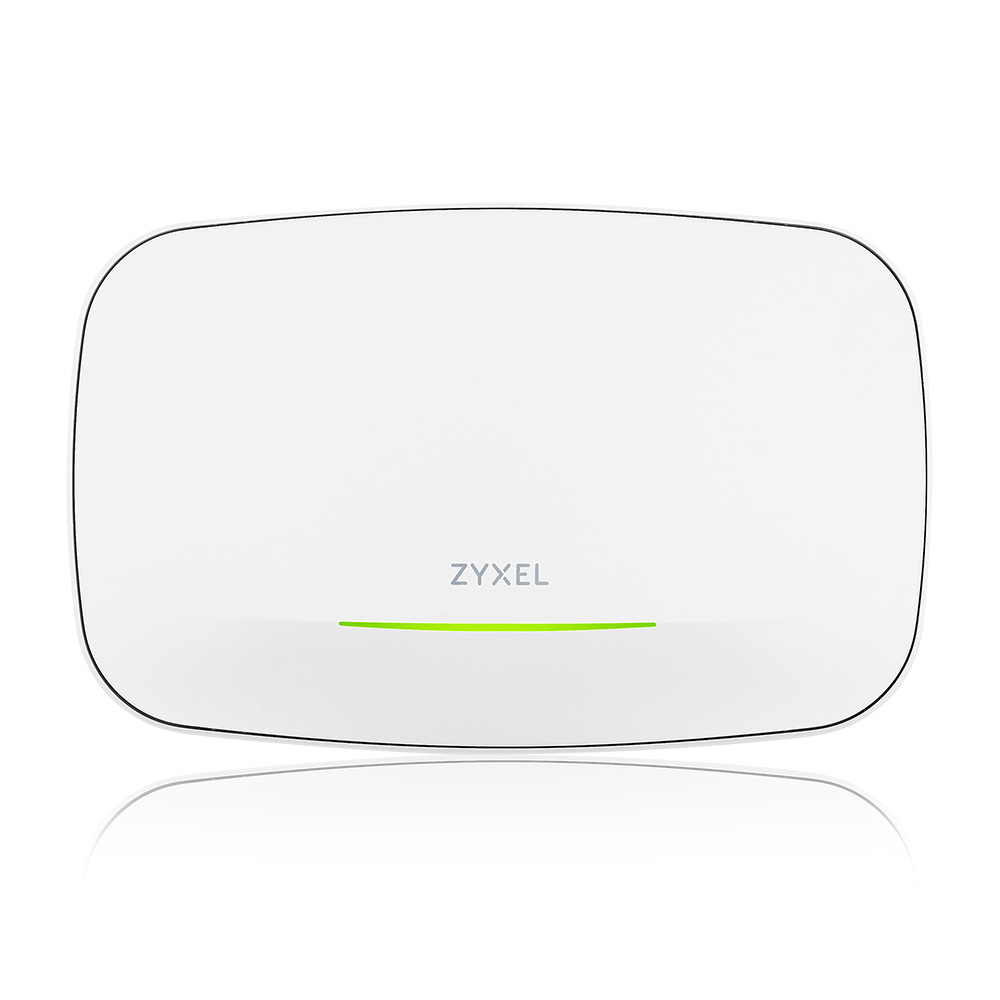

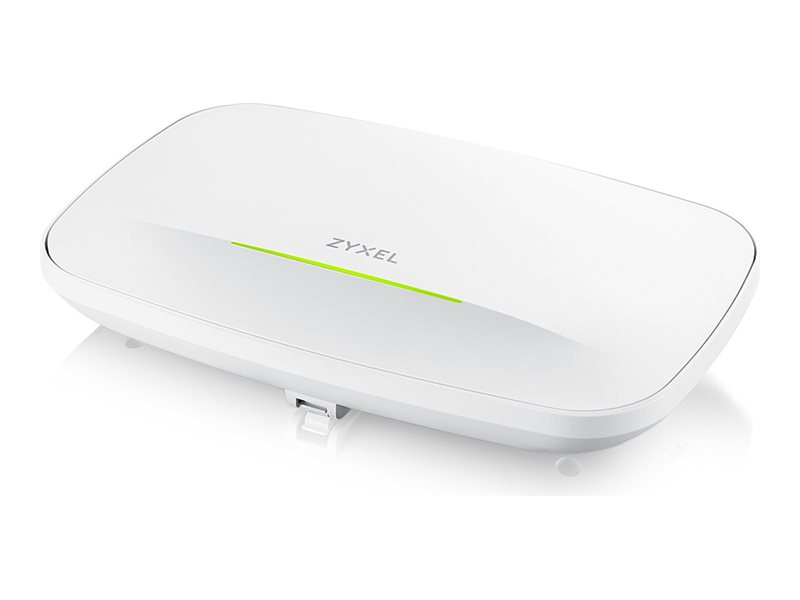

Zyxel WBE630S - Radio access point - Wi-Fi 7, SNMP - Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - cloud-managed - wall / ceiling mountable | WBE630S-EU0101F
WBE630S-EU0101F
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
The Zyxel WBE630S delivers data rates of 11,530 Mbps on the 2.4 GHz band and 8,646 Mbps on the 5 GHz band, ensuring fast connections for multiple devices. - Wide compatibility
This access point is compatible with multiple wireless standards including IEEE 802.11a/b/g/n/ac/ax/be, allowing it to function efficiently with various devices. - Enhanced security
Features encryption algorithms such as WPA3, WPA2, and WPA provide secure connections while the RADIUS authentication method enhances network security. - Intelligent management
The intelligent cloud networking management system offers seamless remote management and monitoring capabilities, simplifying network administration. - Environmentally friendly
Designed to operate in a wide range of environmental conditions, the WBE630S functions reliably within a temperature range of 0°C to 50°C.
Special Fetures
- Data transfer rate of 12.3 Gbps for seamless connectivity
- Supports Wi-Fi 6E and Wi-Fi 7 for performance
- Wall or ceiling-mountable for flexible installation options
- Features include VLAN support and dynamic channel selection
- Cloud-managed for intelligent networking solutions
Product Specification
| Device Type | Radio access point |
| Width | 25 cm |
| Depth | 16 cm |
| Height | 4.7 cm |
| Weight | 815 g |
| Localisation | Europe |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 12.3 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be (Wi-Fi 7), SNMP |
| Network / Transport Protocol | IPv6 |
| Remote Management Protocol | CLI |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps <br /> Maximum data rate (5 GHz): 8646 Mbps <br /> Maximum data rate (6 GHz): 11530 Mbps |
| Wi-Fi Rating | BE12300 |
| Features | Intelligent cloud networking management, smart aerial, 2x2:2 MU-MIMO technology, 4x4:4 MU-MIMO technology, NebulaFlex Pro support, band steering, WDS/Mesh, Fast Roaming, Dynamic Channel Selection (DCS), load balancing, Advanced Cellular Coexistence (ACC), L2-isolation, MAC address filtering, rogue AP detection, VLAN support, Wi-Fi Multimedia (WMM) support, Unscheduled Automatic Power Save Delivery (U-APSD), standalone use, ZON Utility, 4K QAM technology |
| Encryption Algorithm | WEP, WPA, WPA2, WPA3 |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Wi-Fi CERTIFIED 7, IEEE 802.11ax, IEEE 802.11be |
| Aerial | |
| Antenna | Internal |
| Expansion / Connectivity | |

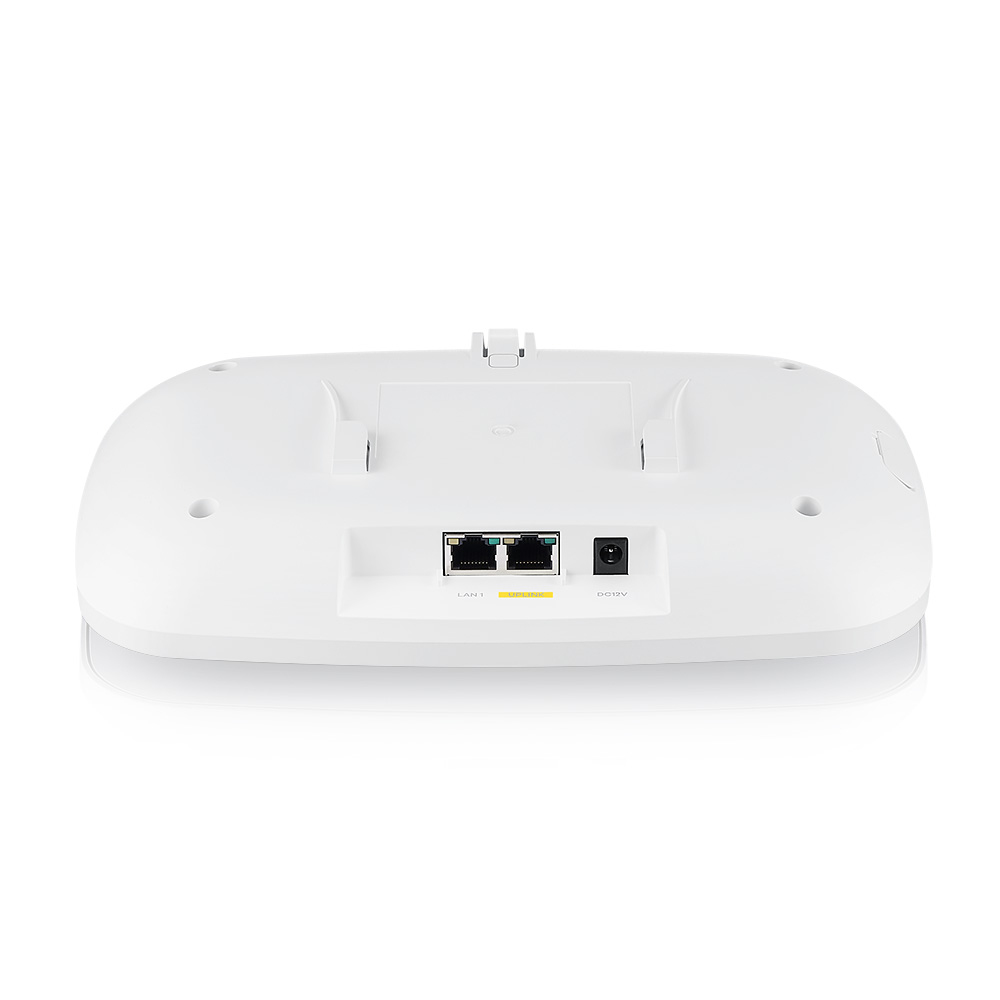

| Interfaces | 2 x 1/2.5Gb Ethernet - RJ-45 |
| Miscellaneous | |
| Included Accessories | Mounting plate, mounting screws |
| MTBF | 691,722 hours |
| Compliant Standards | FCC Part 15 C, FCC Part 15 E, FCC Part 2, ETSI EN 300 328, EN 301 893, EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002, FCC Part 15 B, EN 301 489-1, EN 301 489-17, EN 55032, EN55035, EN60601-1-2, BSMI CNS 15936, EN 62368-1, IEC 62368-1, BSMI CNS 15598-1 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 21.5 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 27.95 cm |
| Shipping Depth | 18.05 cm |
| Shipping Height | 6.6 cm |
| Shipping Weight | 1.04 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
