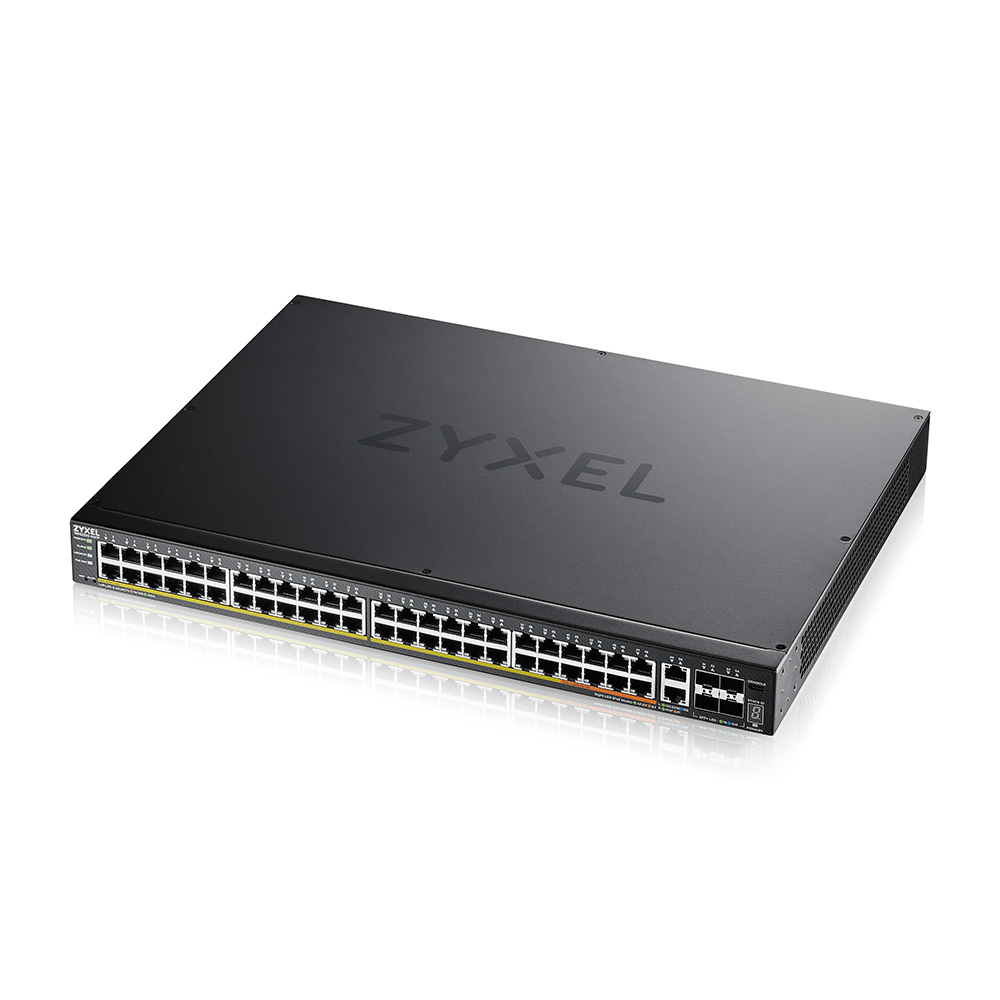

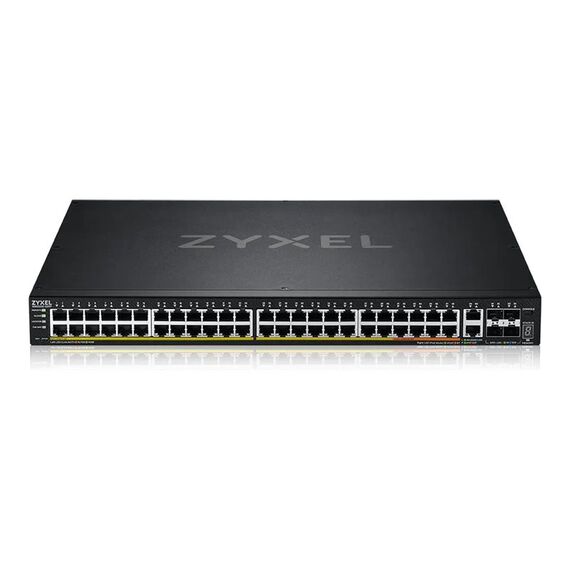

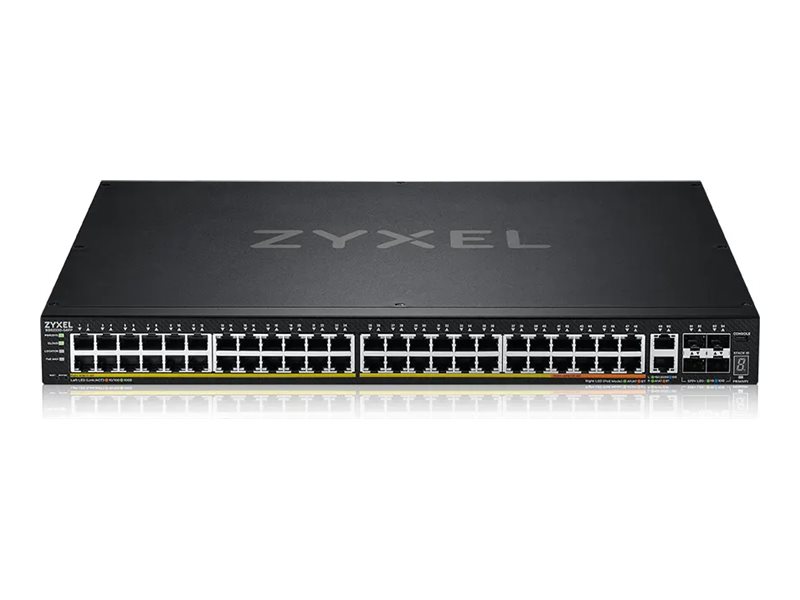

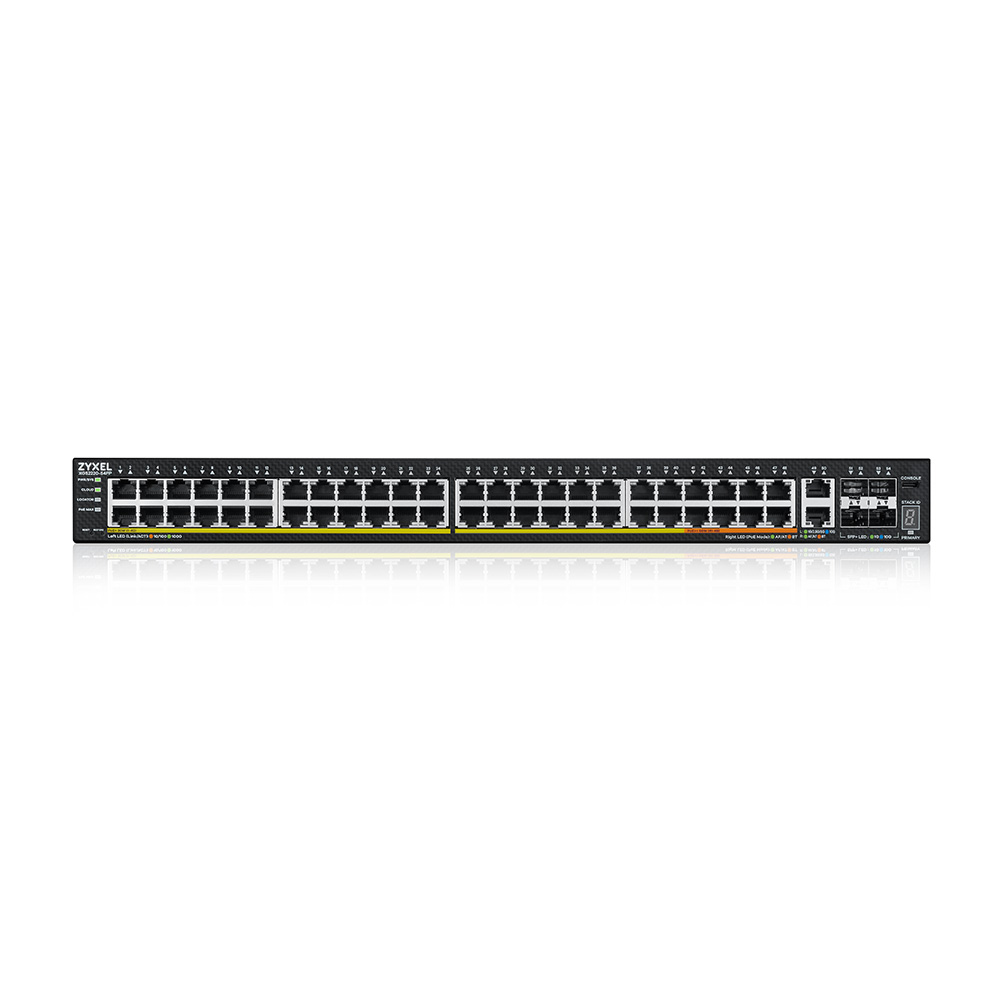

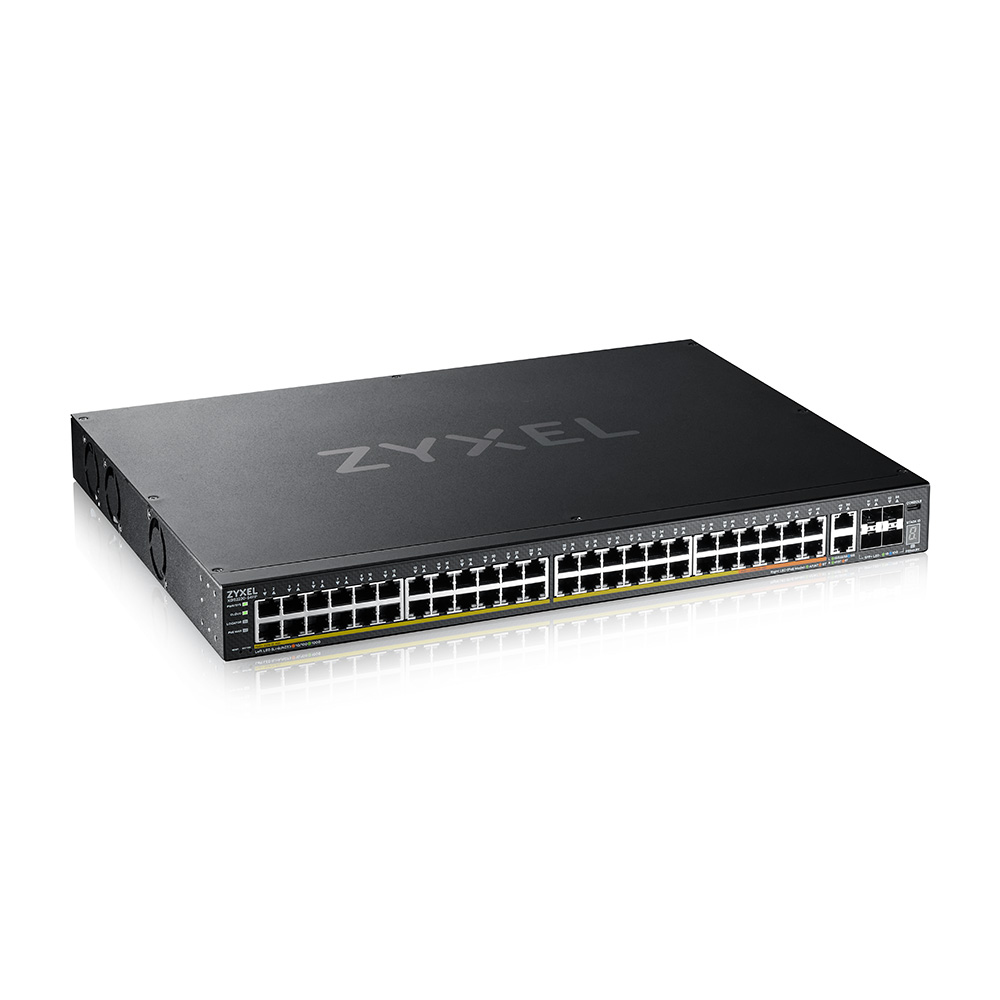

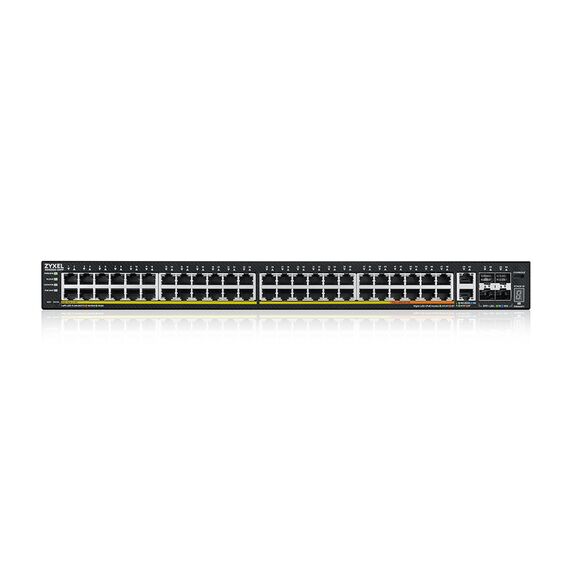

Zyxel XGS2220 Series XGS2220-54FP - Switch - L3 access, NebulaFLEX Cloud, 960 W - Managed - 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink) - desktop, rack-mountable - PoE++ (960 W) | XGS2220-54FP-EU0101F
Zyxel XGS2220 Series XGS2220-54FP - Switch - L3 access, NebulaFLEX Cloud, 960 W - Managed - 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink) - desktop, rack-mountable - PoE++ (960 W) | XGS2220-54FP-EU0101F
€2227.63 inc. VAT
XGS2220-54FP-EU0101F
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Handles a high-bandwidth applications easily with up to six 10G connectivity
- Tailor-made Networked AV mode brings efficiency to professional AVoIP networking setups and monitoring services
- PoE++ provides 60 W for each port respectively with high power budget of up to 960 W
- Support Multi-Gigabit - 100M/1G/2.5G/5G/10G connections
Product Specification
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Ports | 48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 960 W |
| Performance | Switching capacity: 216 Gbps ¦ Forwarding rate: 161 Mpps ¦ Packet buffer size: 2 MB |
| Capacity | Routing tables: 64 ¦ IP interfaces: 32 ¦ IPv4 forwarding table entries: up to 1000 ¦ IPv6 forwarding table entries: up to 512 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | IGMP |
| Features | Layer 3 switching, IGMP snooping, 2KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), Smart Fan |
| Compliant Standards | IEEE 802.3at, IEEE 802.3bt |
| RAM | 1 GB |
| Flash Memory | 64 MB |
| Expansion / Connectivity | |
| Interfaces | 40 x 100 / 1000Base-T RJ-45 PoE+ ¦ 8 x 100 / 1000Base-T RJ-45 PoE++ - 60 W ¦ 2 x 1/2.5/5/10GBase-T RJ-45 PoE++ - 60 W ¦ 4 x 1/10GBase-SX SFP+ |
| Power | |
| Power Device | Internal power supply |

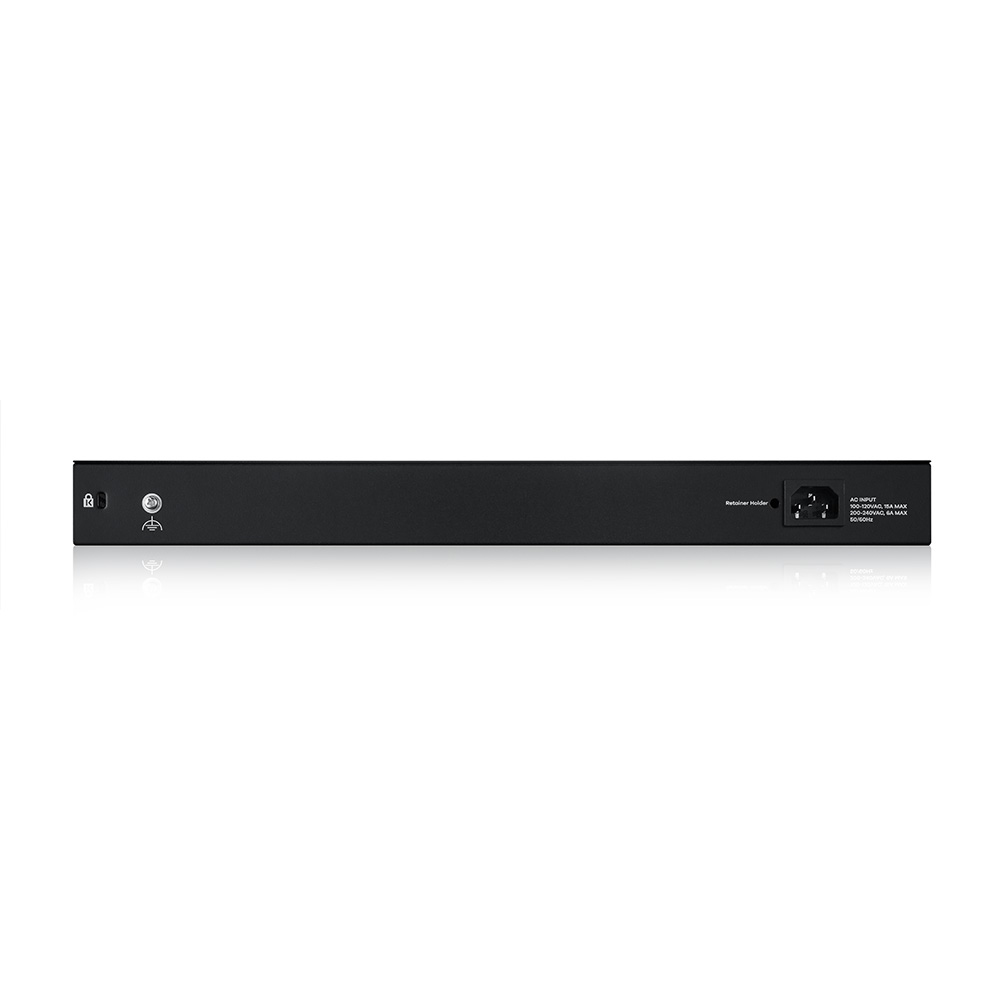

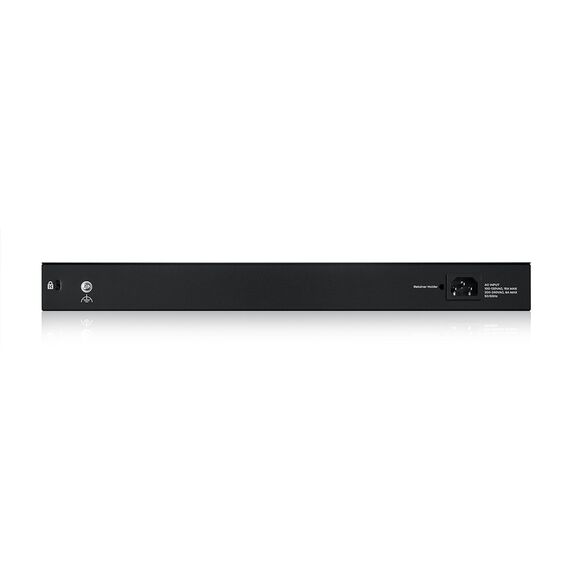

| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Power cord |
| Rack Mounting Kit | Included |
| MTBF | 227,352 hours |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 58 cm |
| Shipping Depth | 50.3 cm |
| Shipping Height | 9.5 cm |
| Shipping Weight | 6.33 kg |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - Zyxel - XGS2220-54FP-EU0101F
General
48-Port
More Details
Product Code
07:338531
EAN Code
4718937625130
Manufacturer
Zyxel
